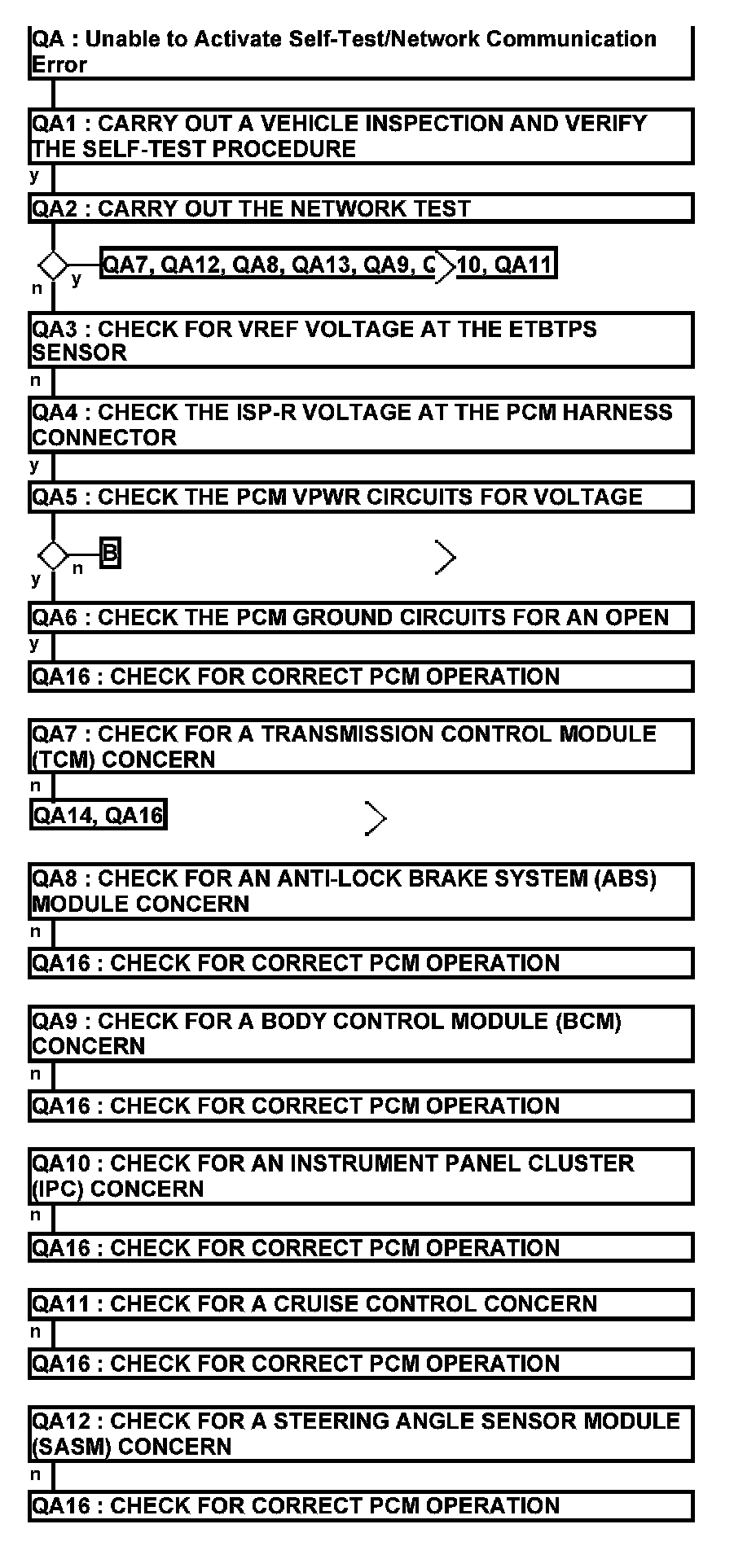

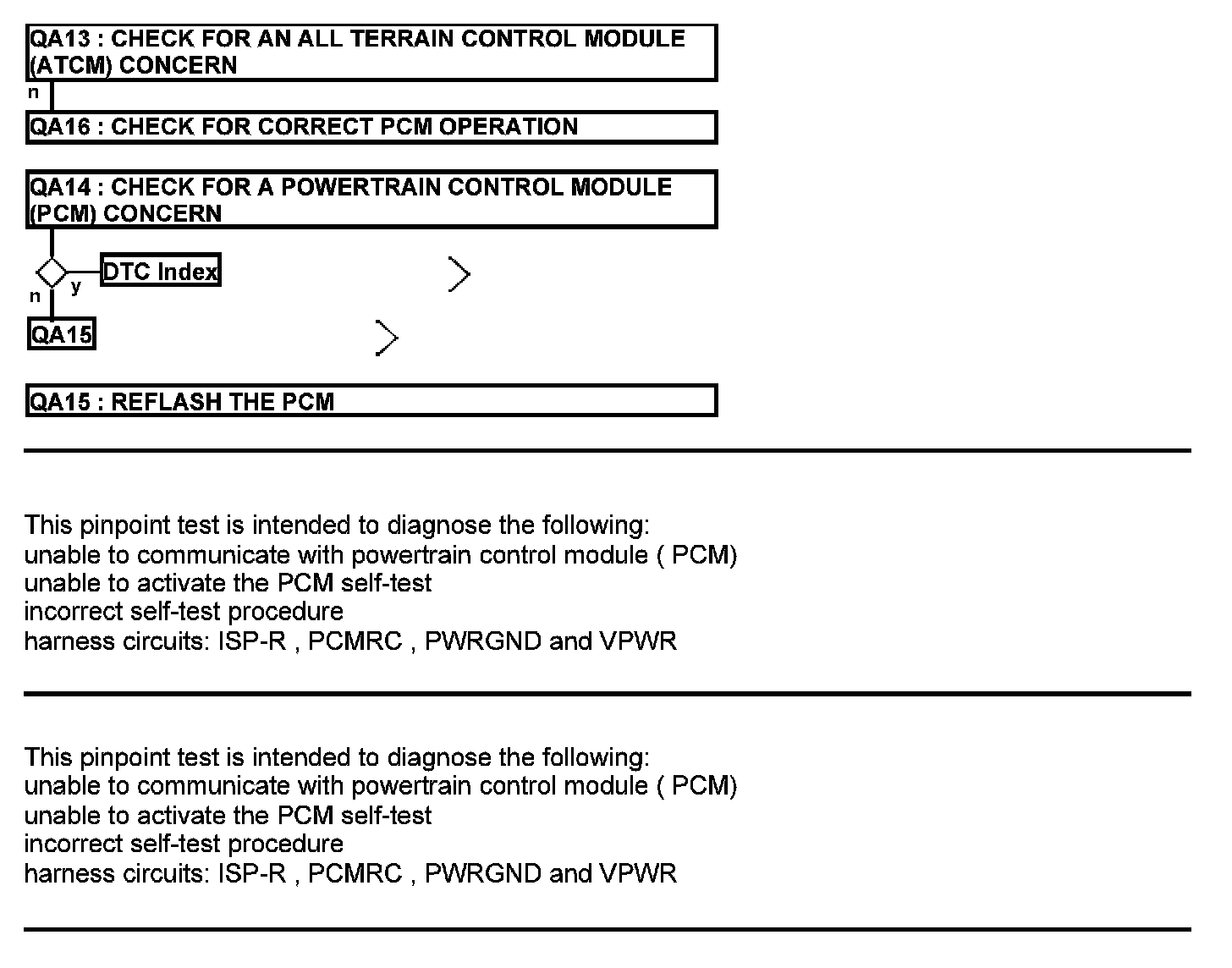

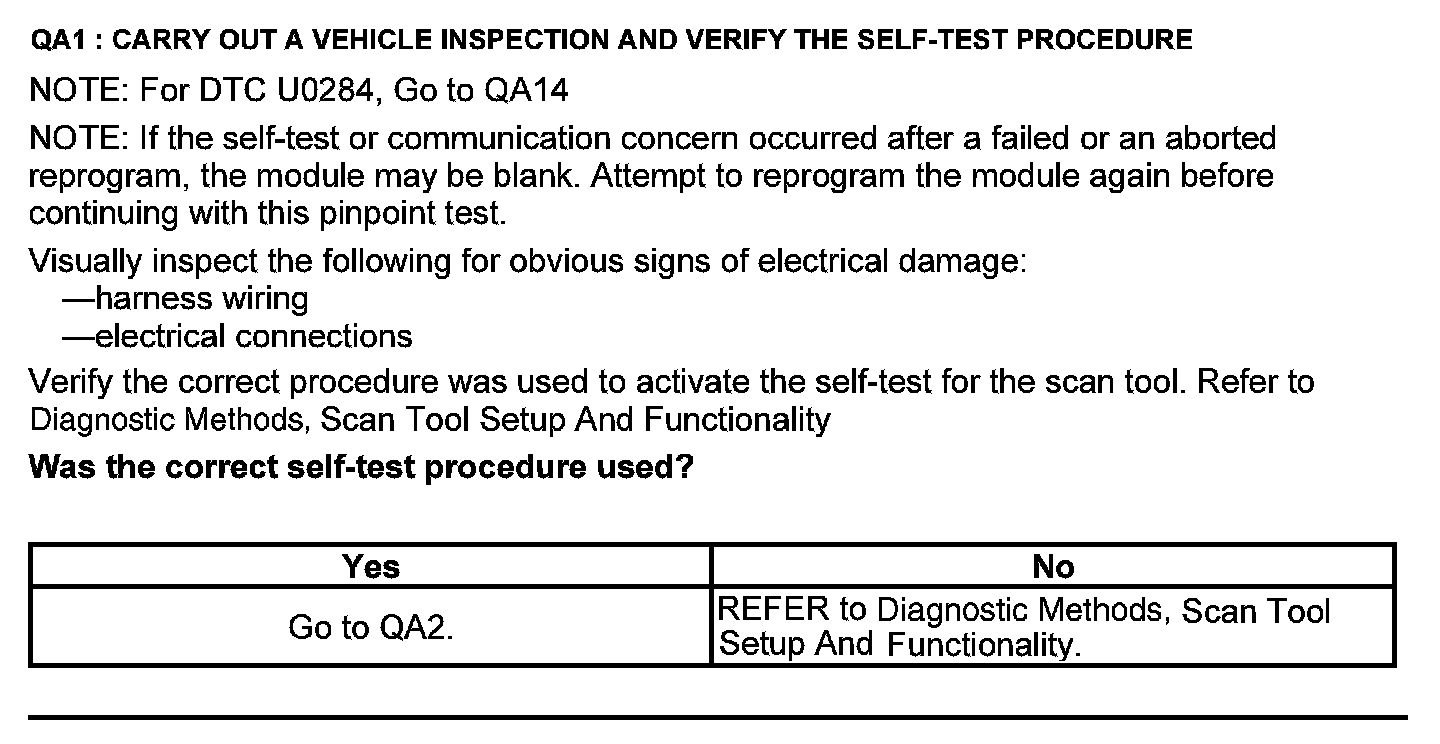

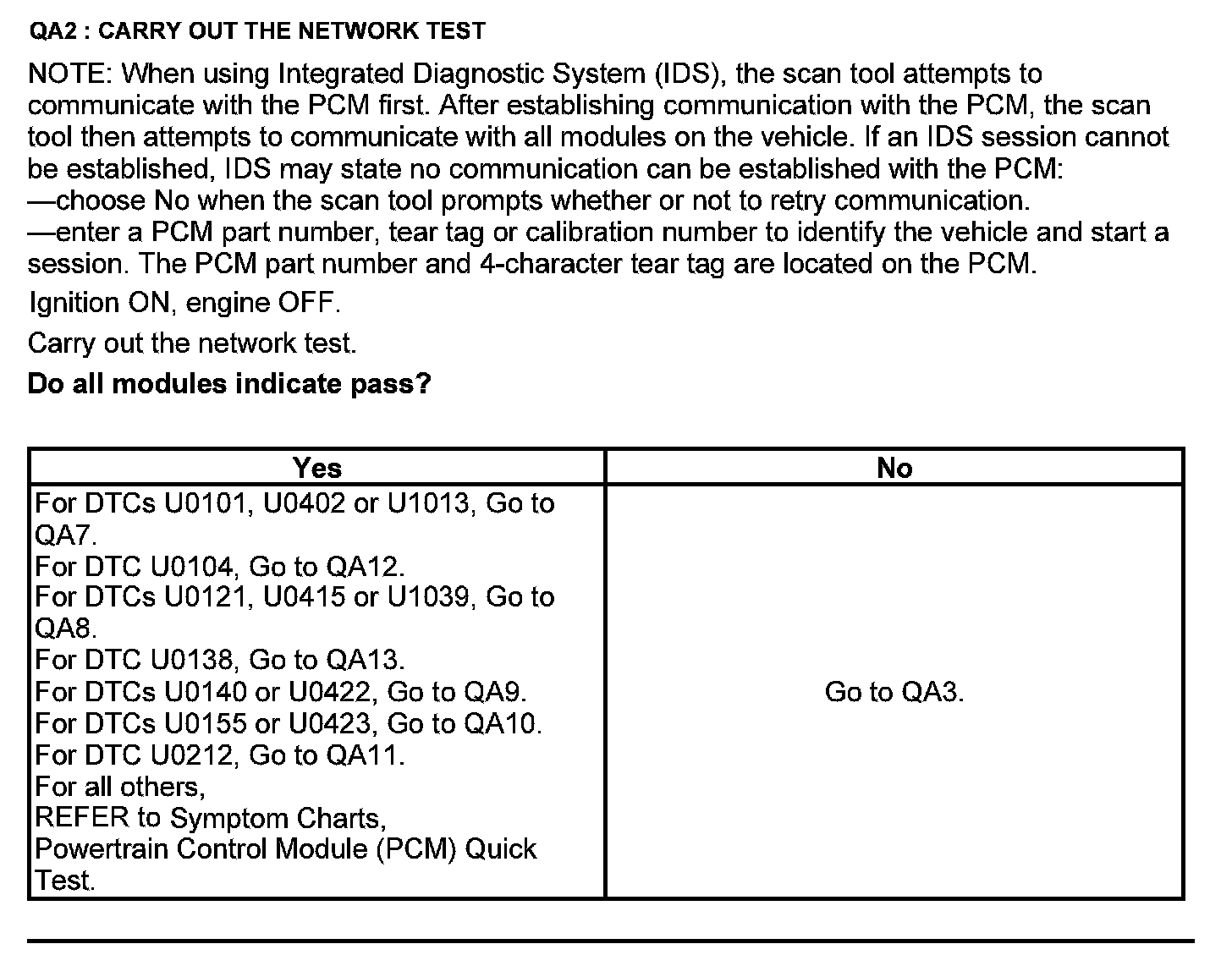

Unable to Activate Self-Test/Network Communication Error

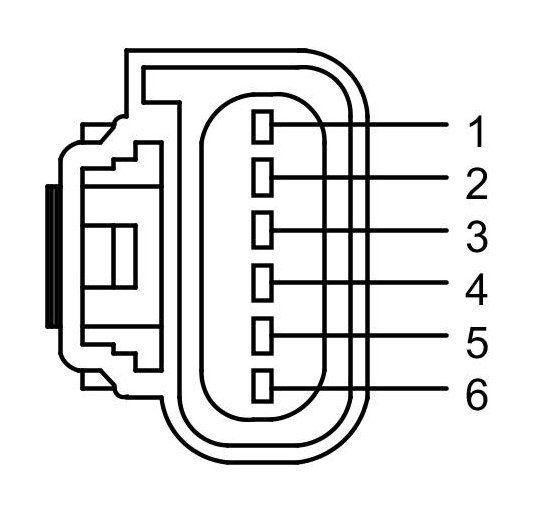

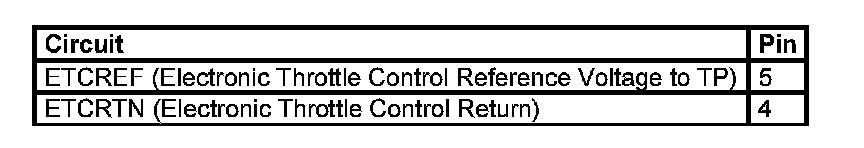

Electronic Throttle Body Throttle Position Sensor (ETBTPS) Connector





Harness Side

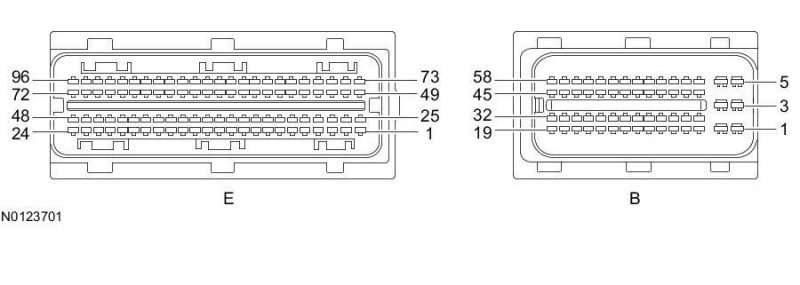

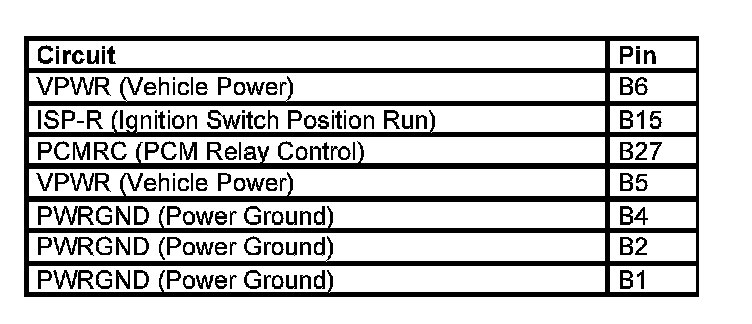

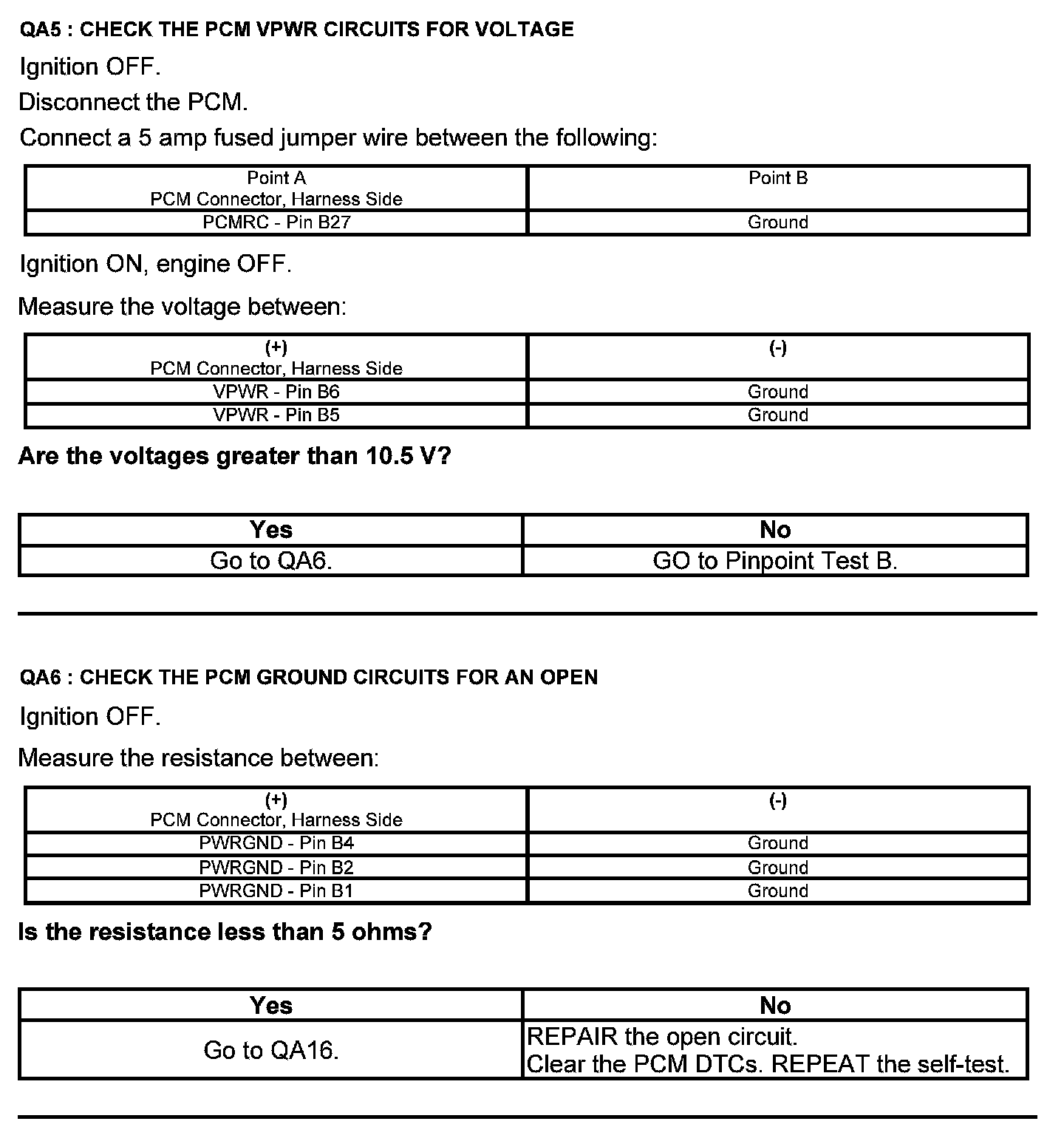

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.






Harness Side
