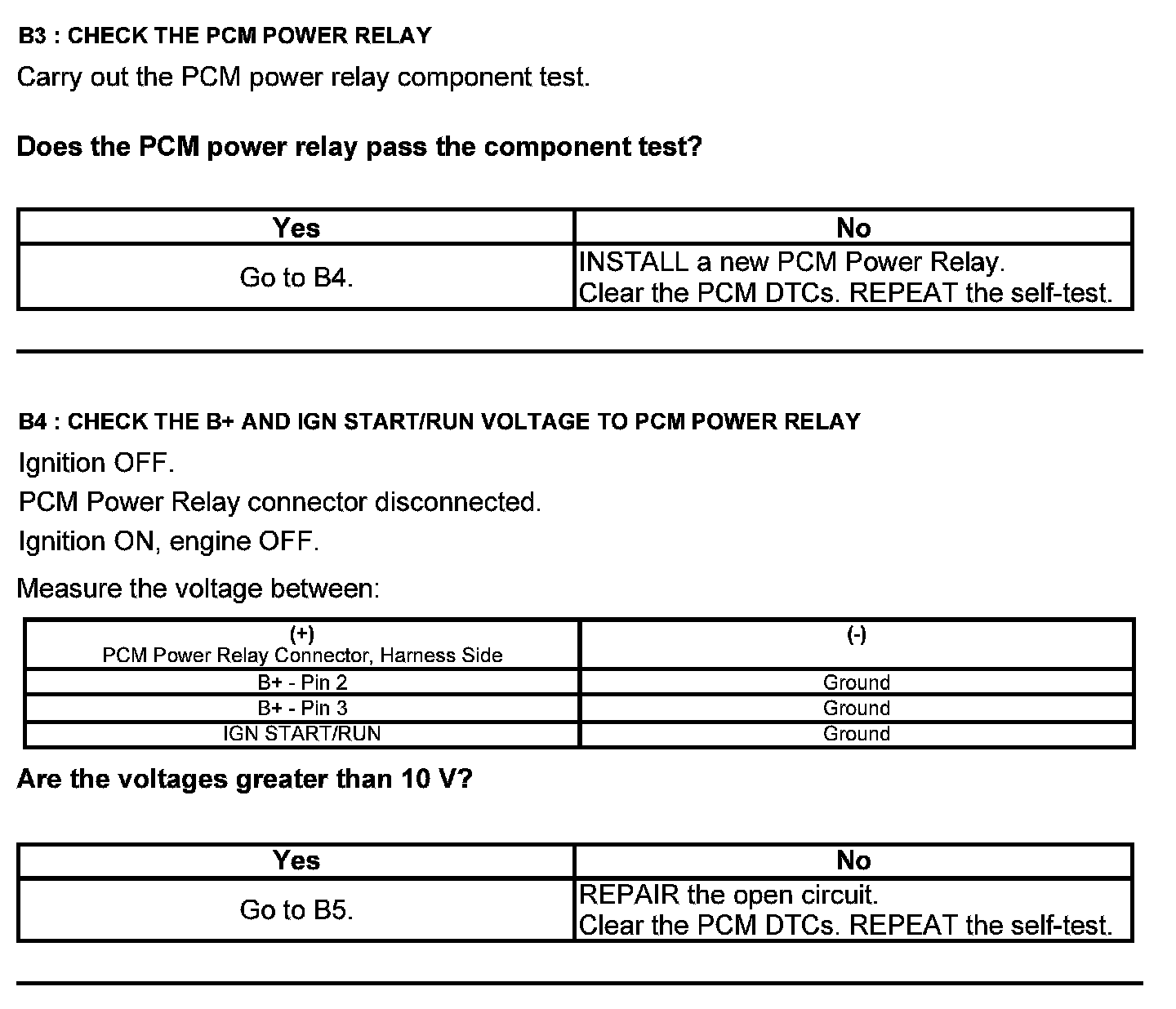

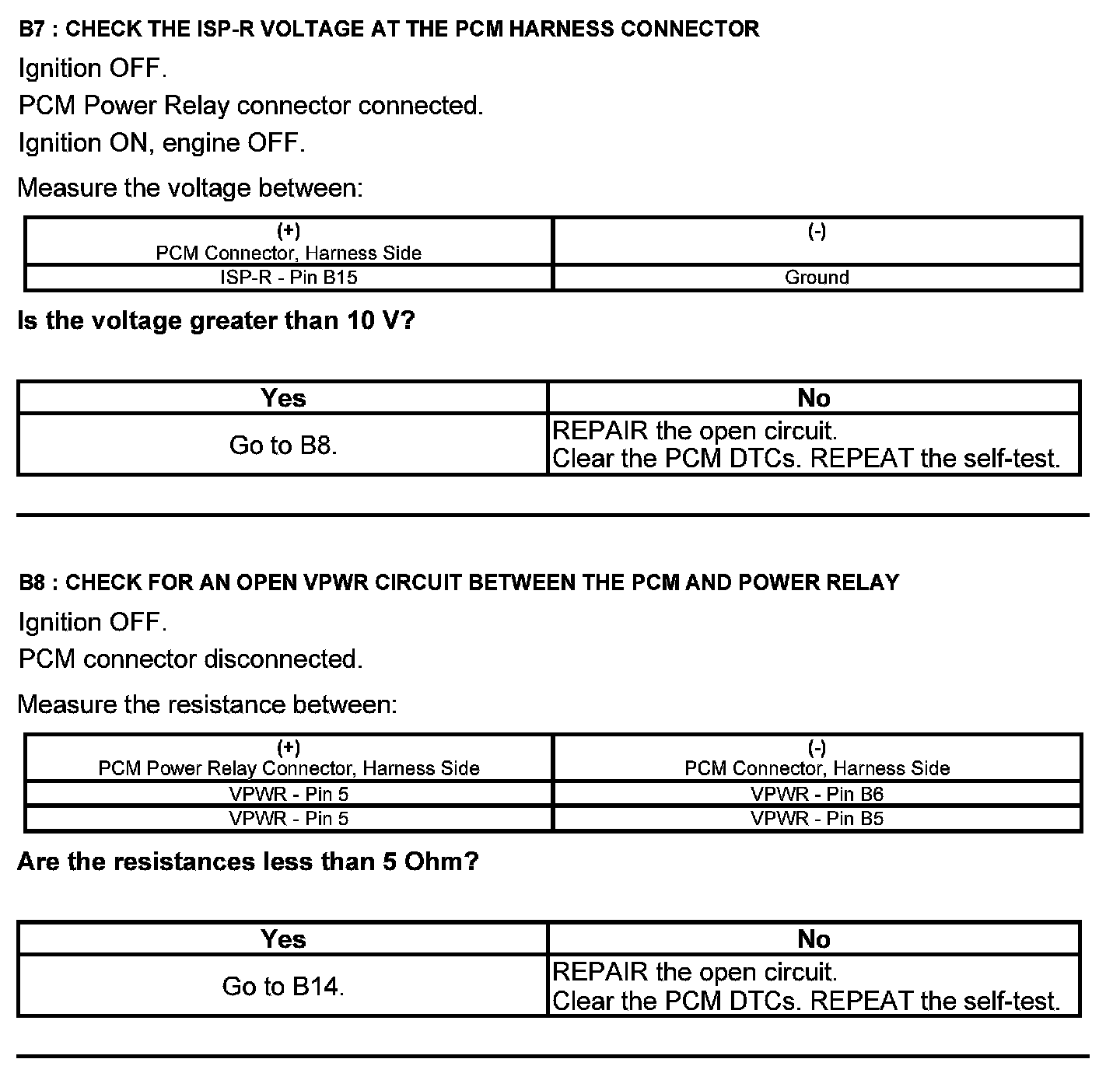

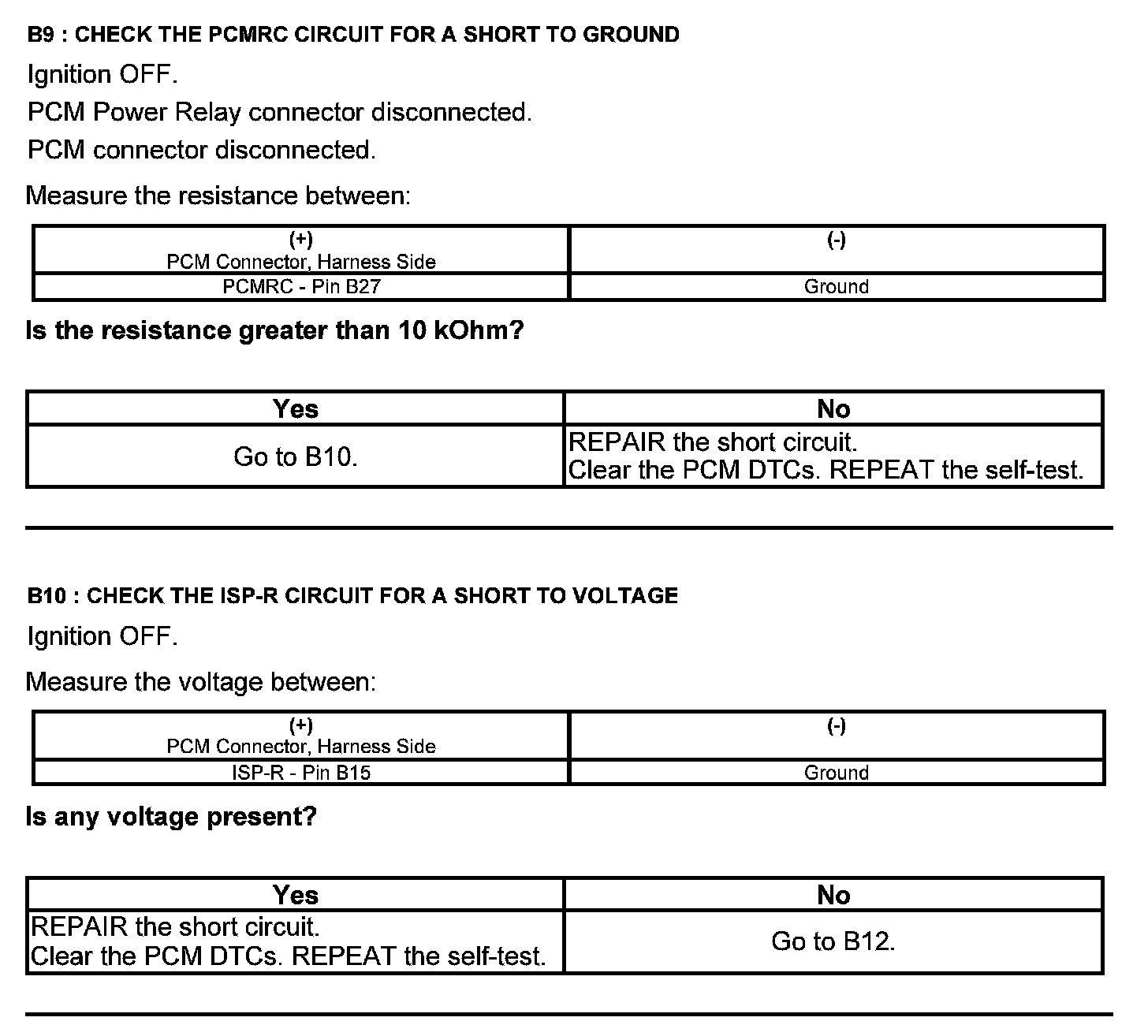

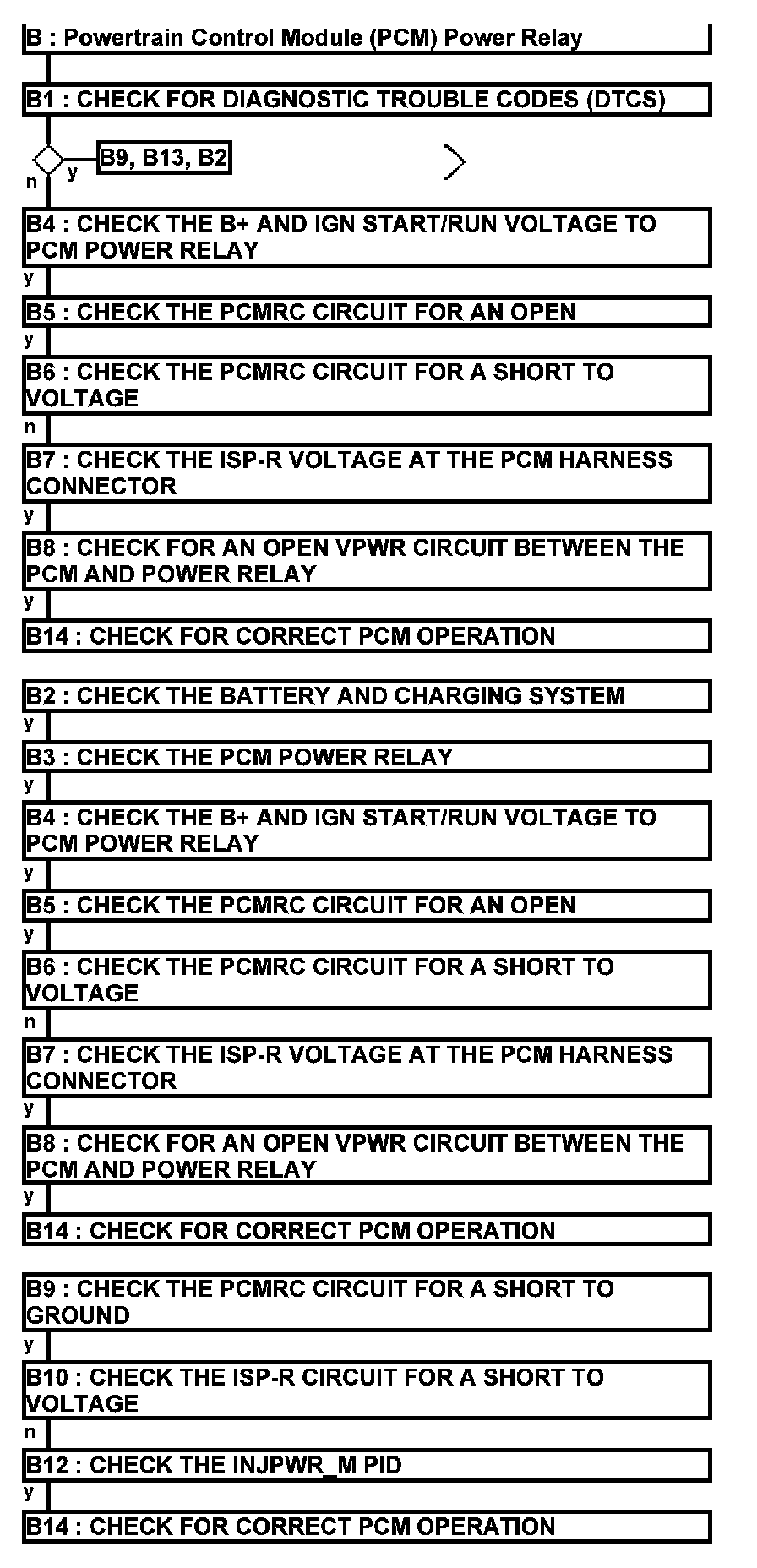

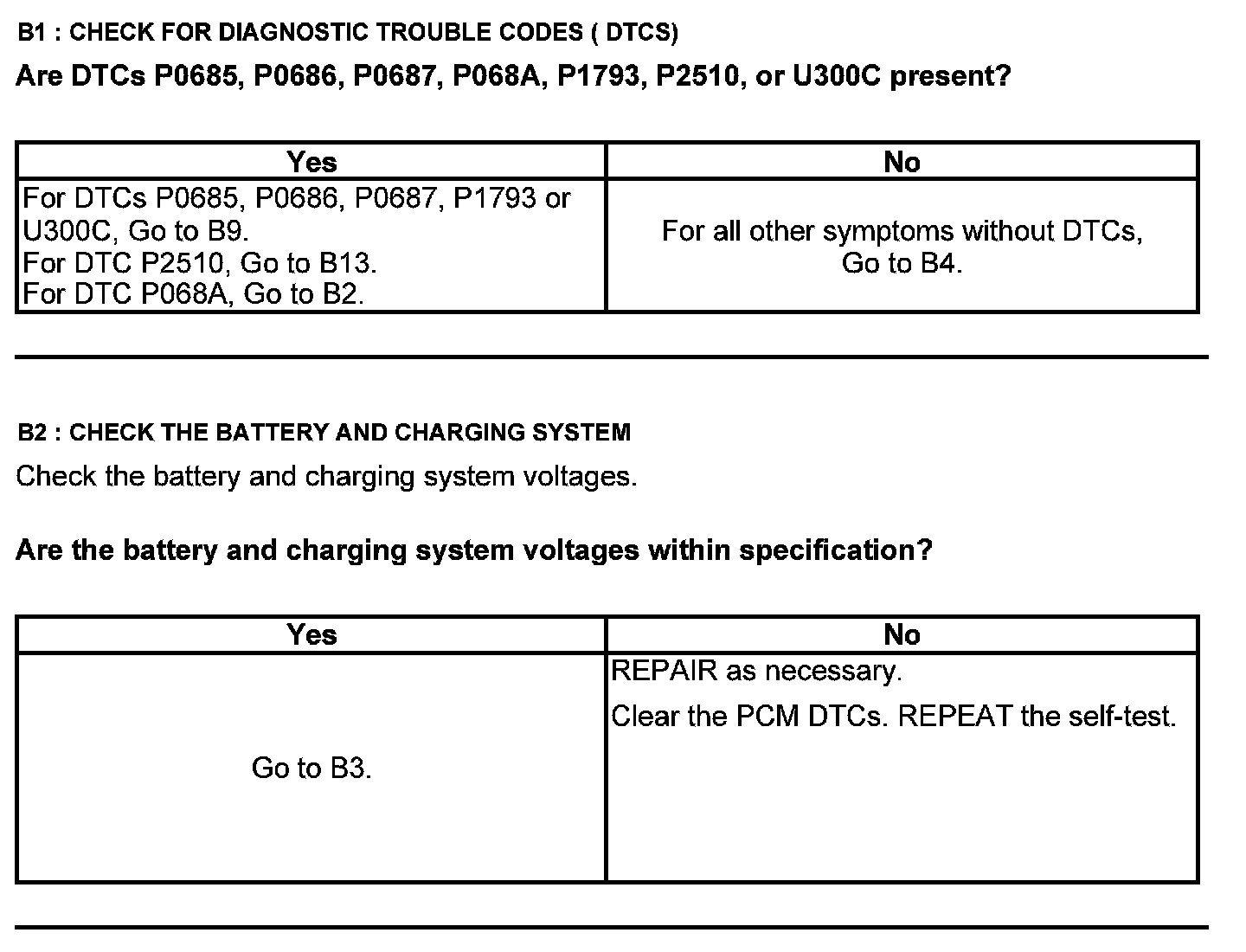

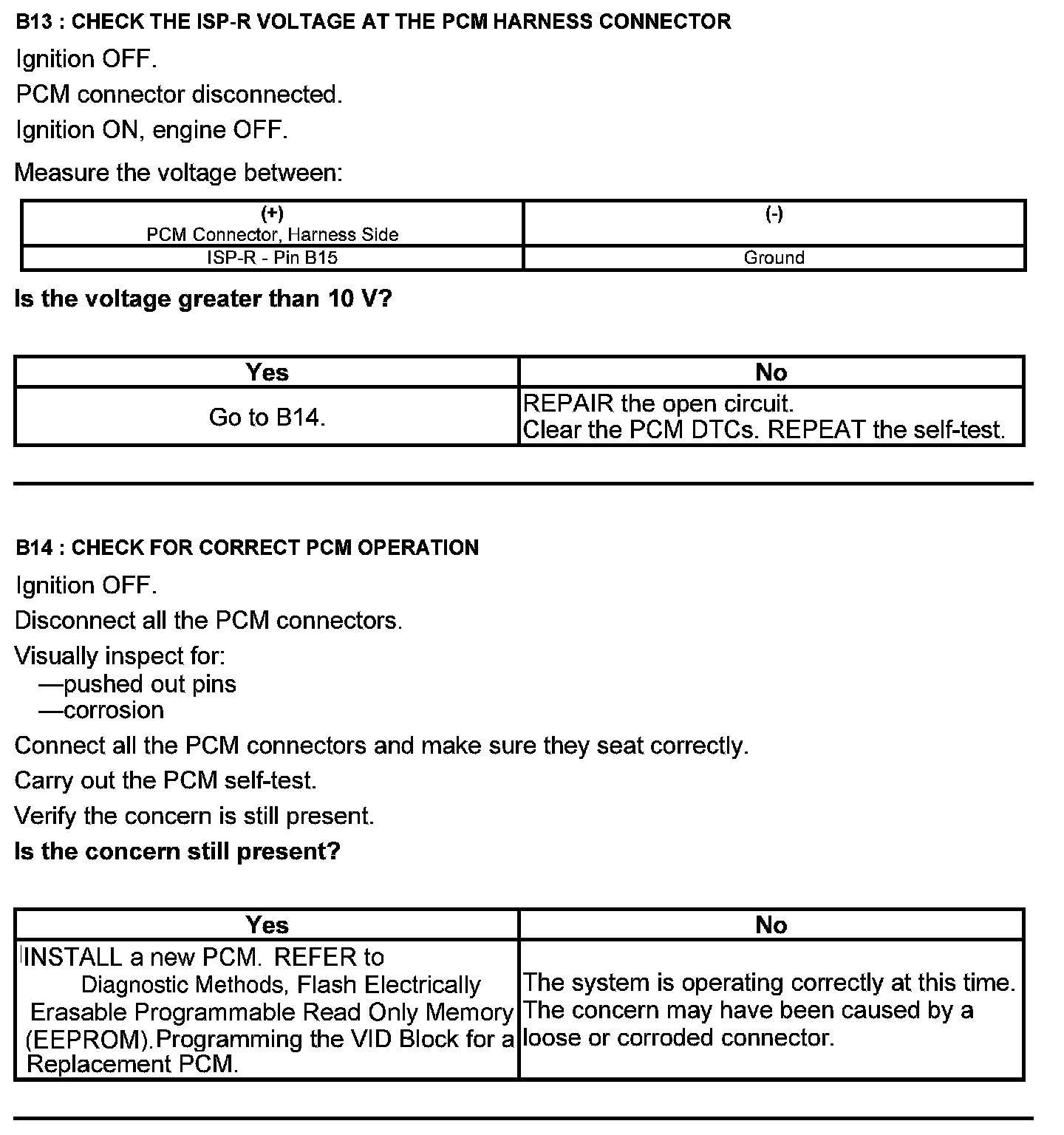

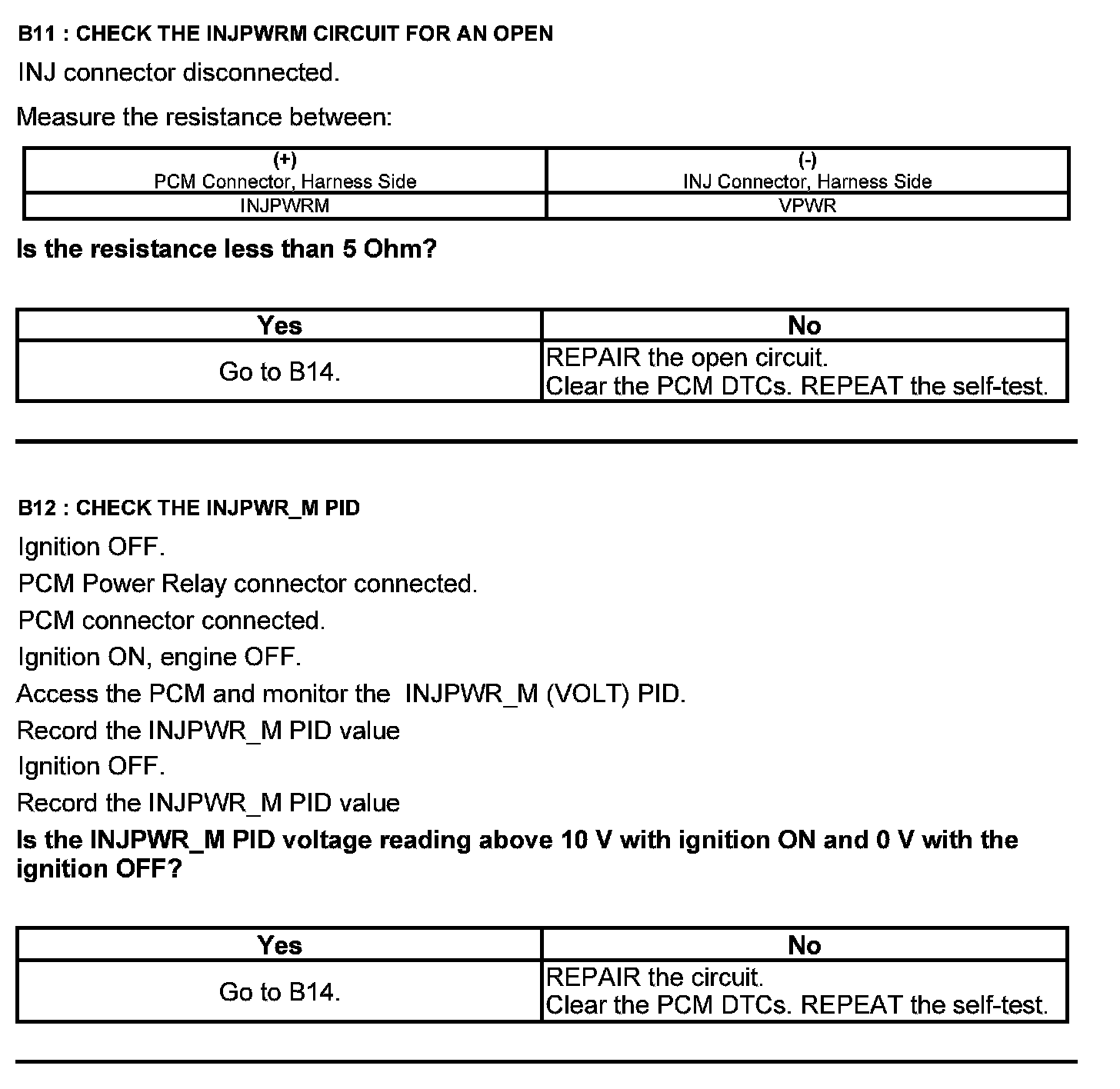

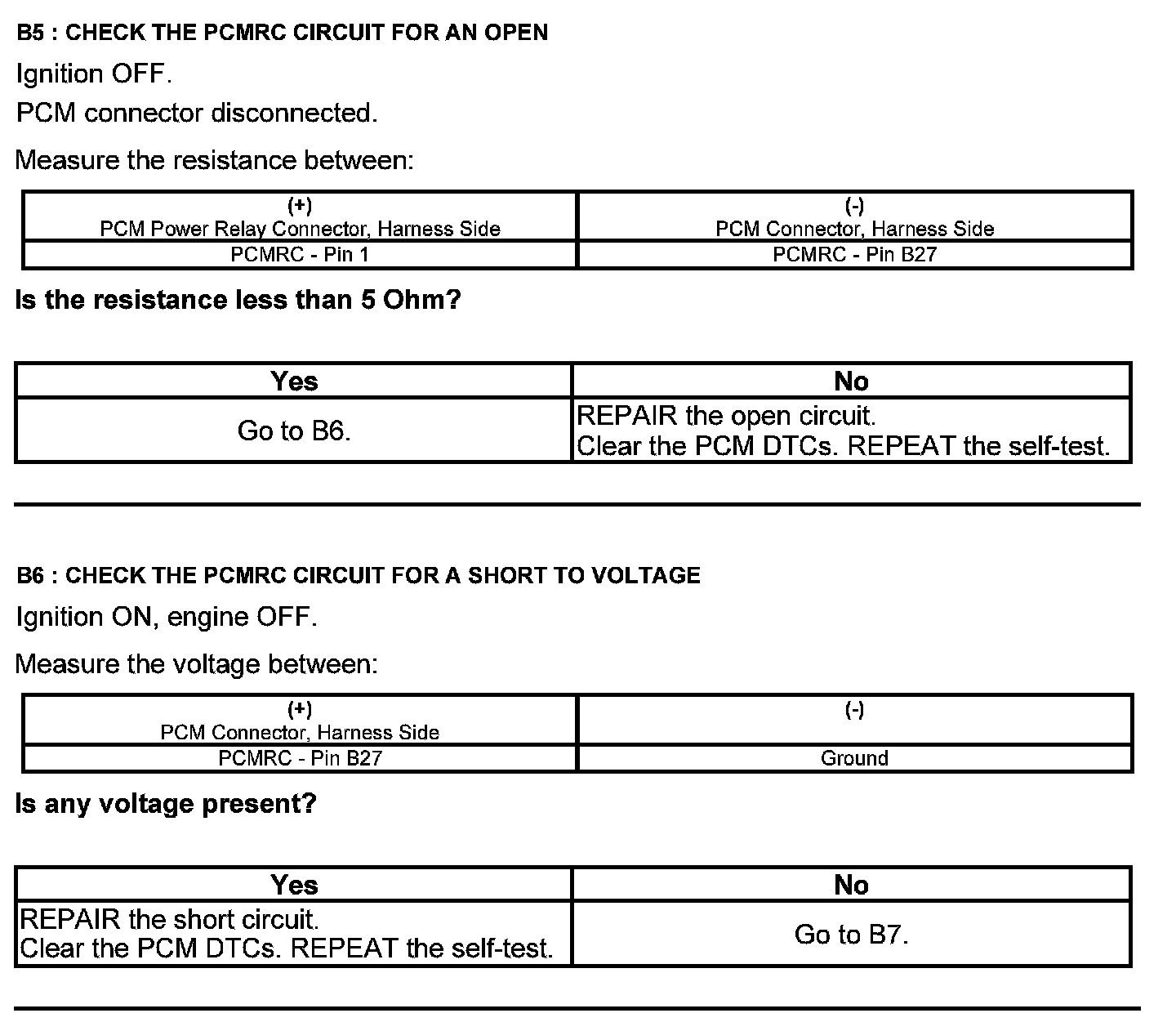

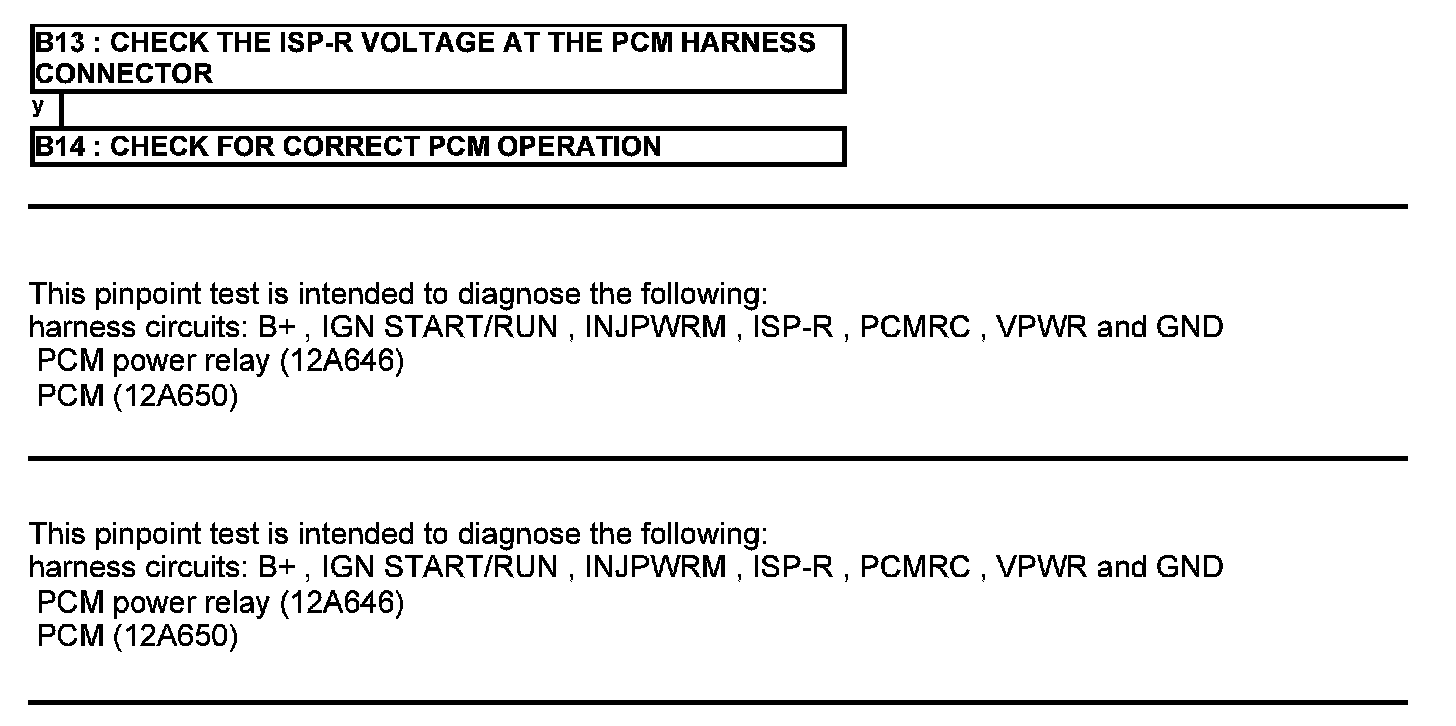

Test B: Powertrain Control Module (PCM) Power Relay

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your Ford Truck hyperlink.

AI Repair Guides


Powertrain Control Module (PCM) Power Relay

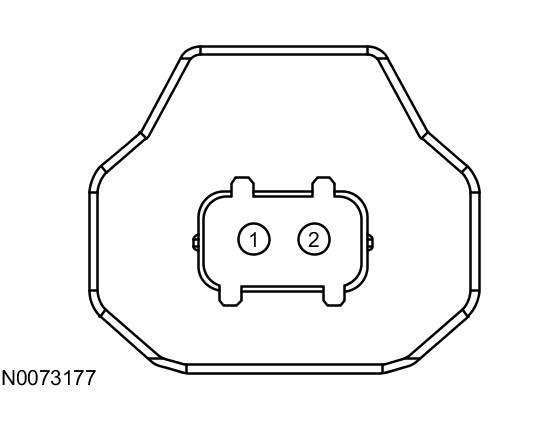

Injector (INJ) Connector





Harness Side

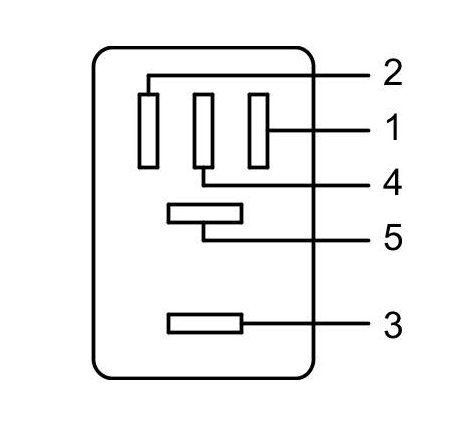

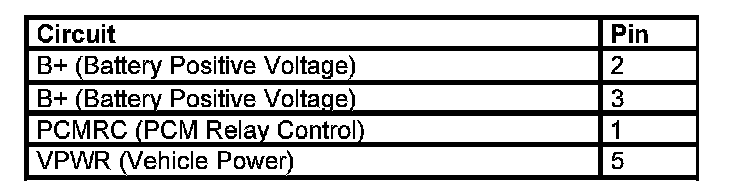

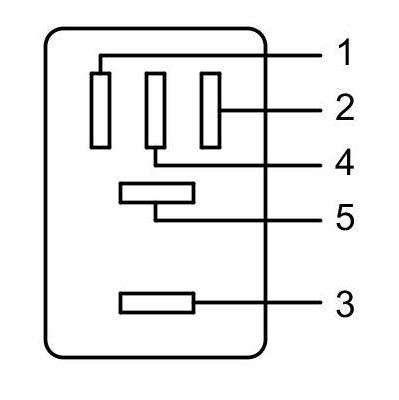

Powertrain Control Module Power (PCM Power) Relay Connector





Harness Side





Component side

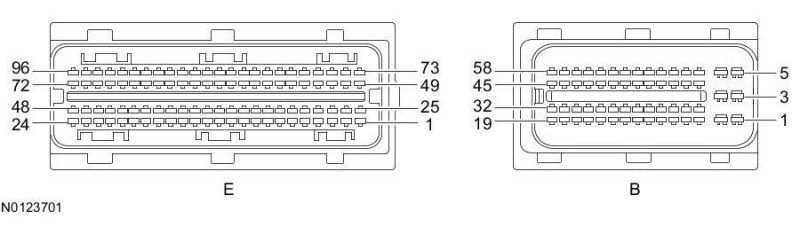

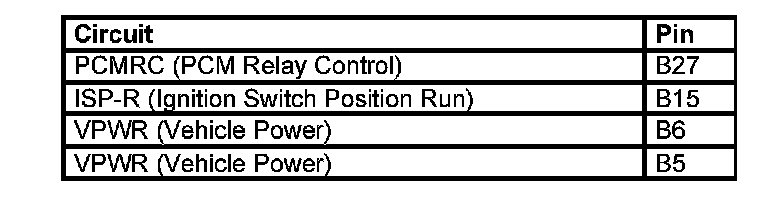

Powertrain Control Module (PCM) Connector - For PCM connector views or reference values, refer to Reference Values.





Harness Side
