Control Module HVAC: Service and Repair

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your Volvo hyperlink.

AI Repair Guides





Operation number: 87153-2

Climate control module (CCM)

Removal

Remove center console Refer to: Center console, TF-80SC AWD, TF-80SC Center Console

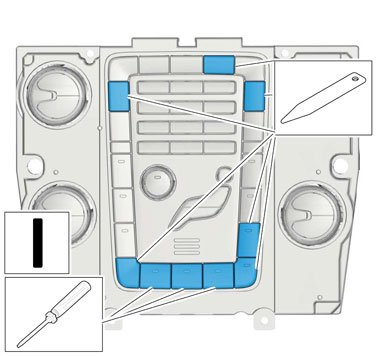

Caution! Take extra care when handling the component.

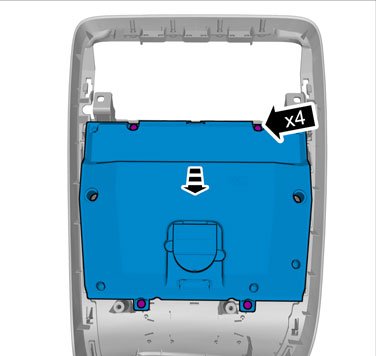

Note! This step is only necessary if the original component is to be reused.

Installation

To install, reverse the removal procedure.
