NETWORKING: LIN COMMUNICATION SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

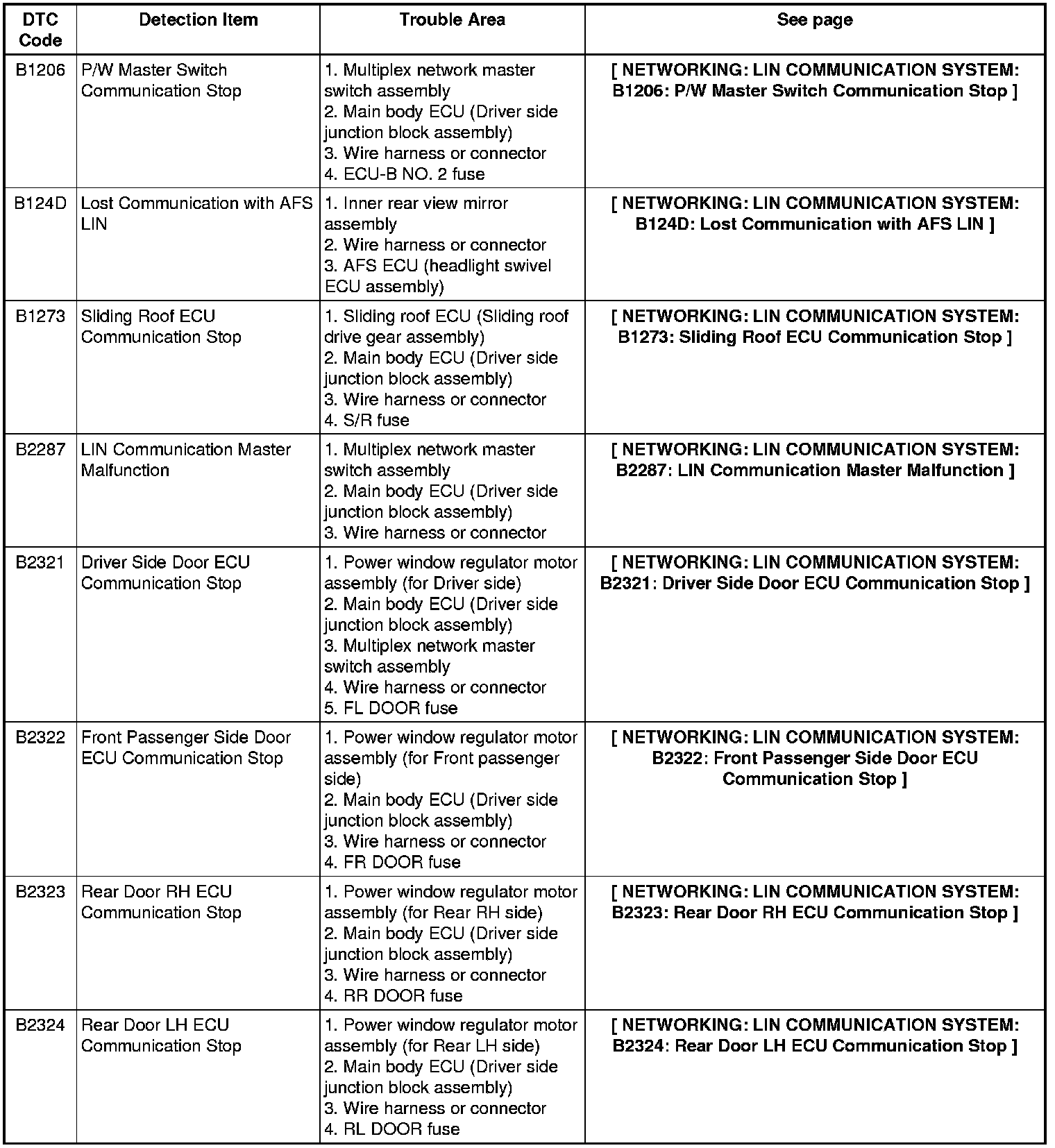

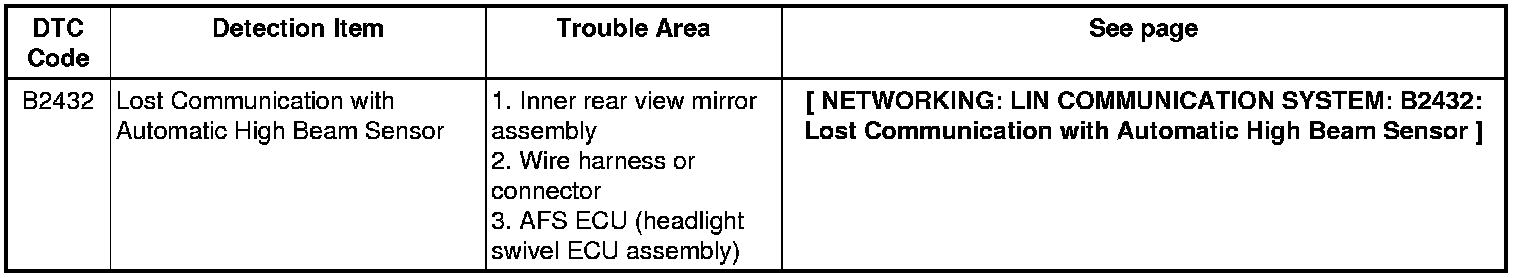

B1206-B2324:

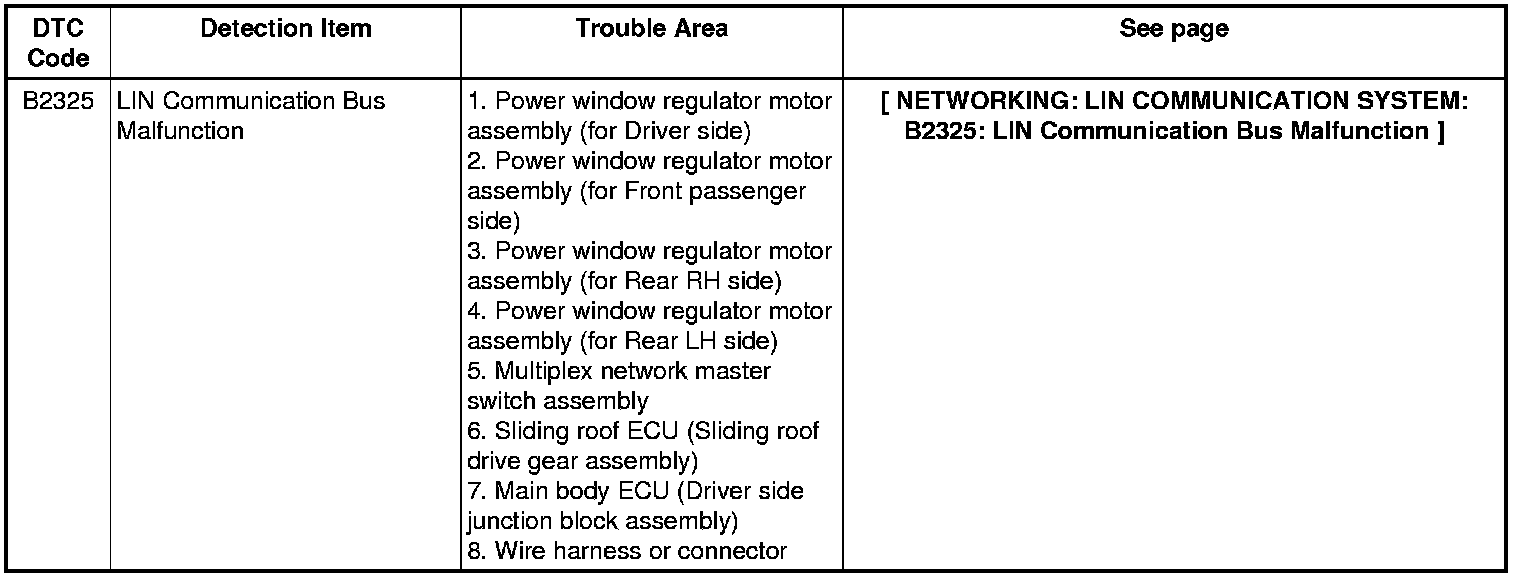

B2325:

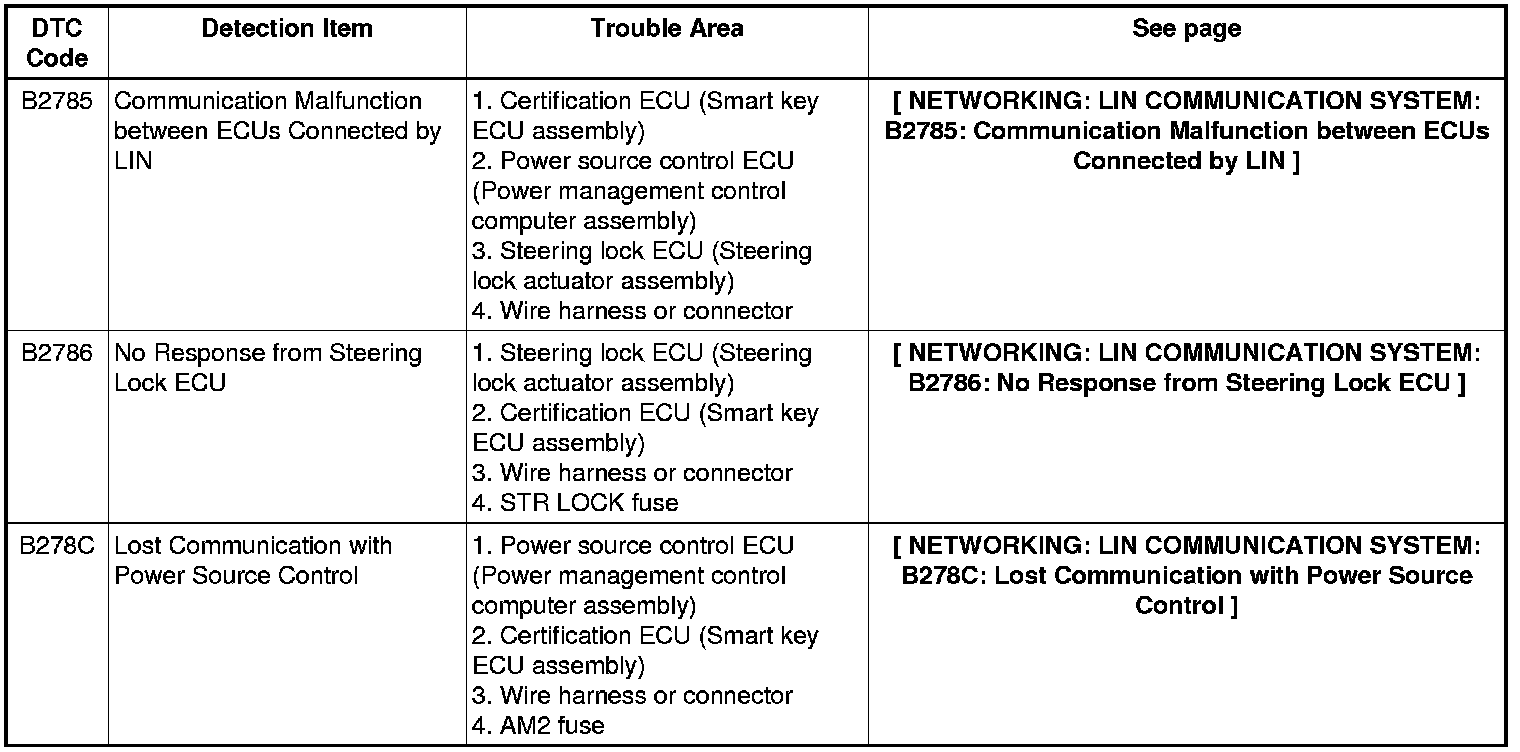

Certification ECU (Smart Key ECU Assembly):





AFS ECU (headlight swivel ECU assembly):
