Mass Air Flow (MAF) Sensor









Removal and Installation

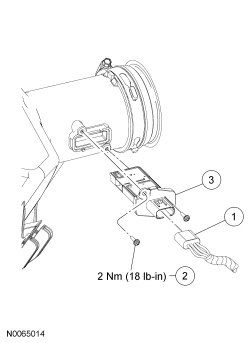

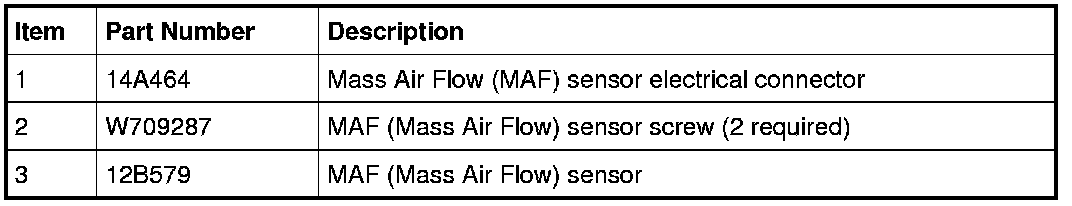

1. Disconnect the Mass Air Flow (MAF) sensor electrical connector.

2. Remove the 2 screws and the MAF (Mass Air Flow) sensor.
- To install, tighten to 2 Nm (18 lb-in).


3. To install, reverse the removal procedure.
