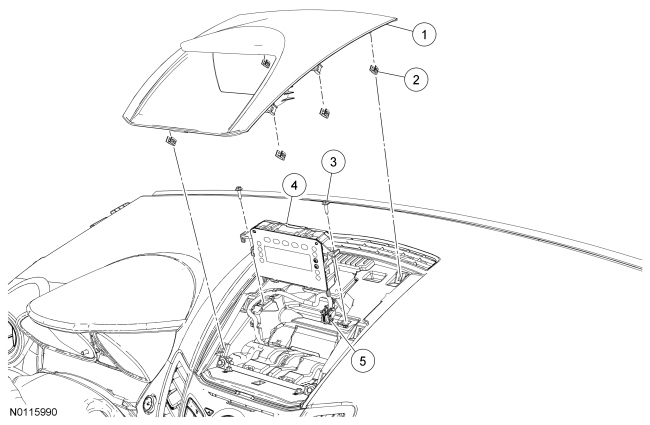

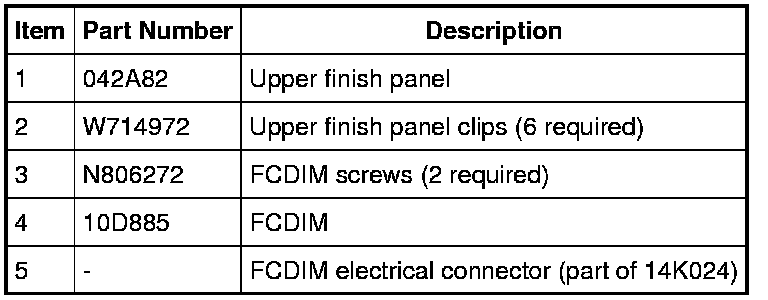

Front Controls/Display Interface Module (FCDIM)









Removal and Installation

1. Remove the instrument panel upper finish panel. For additional information, refer to Instrument Panel and Console Instrument Panel Finish Panel - Upper.

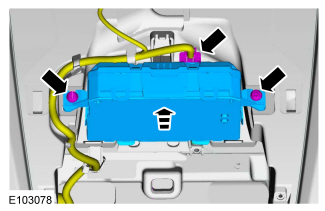

2. Remove the two screws and remove the FCDIM.
- Disconnect the FCDIM electrical connectors.





3. To install, reverse the removal procedure.
