Mass Airflow Sensor/Intake Air Temperature Sensor Replacement

Removal Procedure




1. Remove the air cleaner outlet duct.

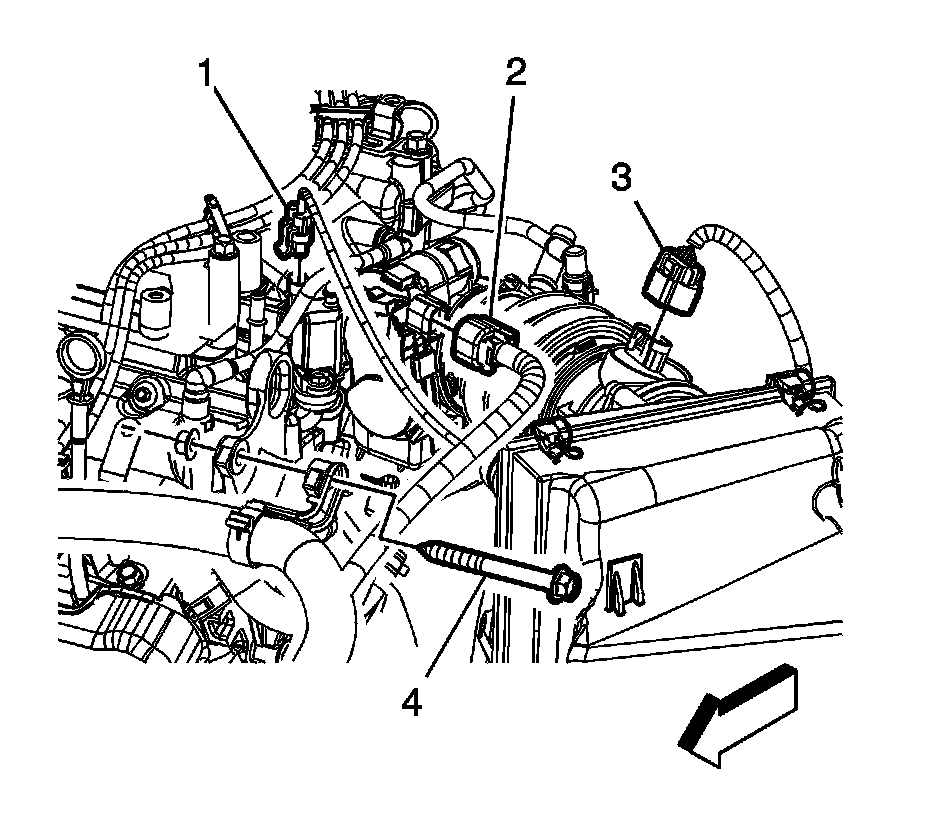

2. Disconnect the mass air flow (MAF)/intake air temperature (IAT) sensor electrical connector (3).

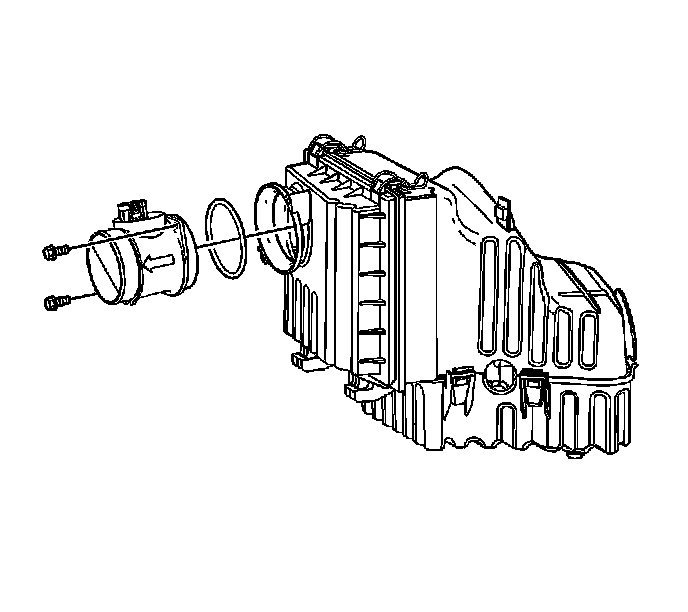

3. Remove the MAF/IAT sensor bolts.
4. Remove the MAF/IAT sensor from the air cleaner housing.
5. Remove the MAF/IAT sensor seal, if necessary.

Installation Procedure




1. Install the MAF/IAT sensor seal, if necessary.
2. Install the MAF/IAT sensor to the air cleaner housing.

Notice: Refer to Fastener Notice.

3. Install the MAF/IAT sensor bolts.

Tighten the bolts to 10 N.m (89 lb in).




4. Connect the MAF/IAT sensor electrical connector (3).
5. Install the air cleaner outlet duct.
