WIPER DRIVE SYSTEM MODULE REPLACEMENT

REMOVAL PROCEDURE
1. Remove the wiper arms.




2. Remove the air inlet grille panel.

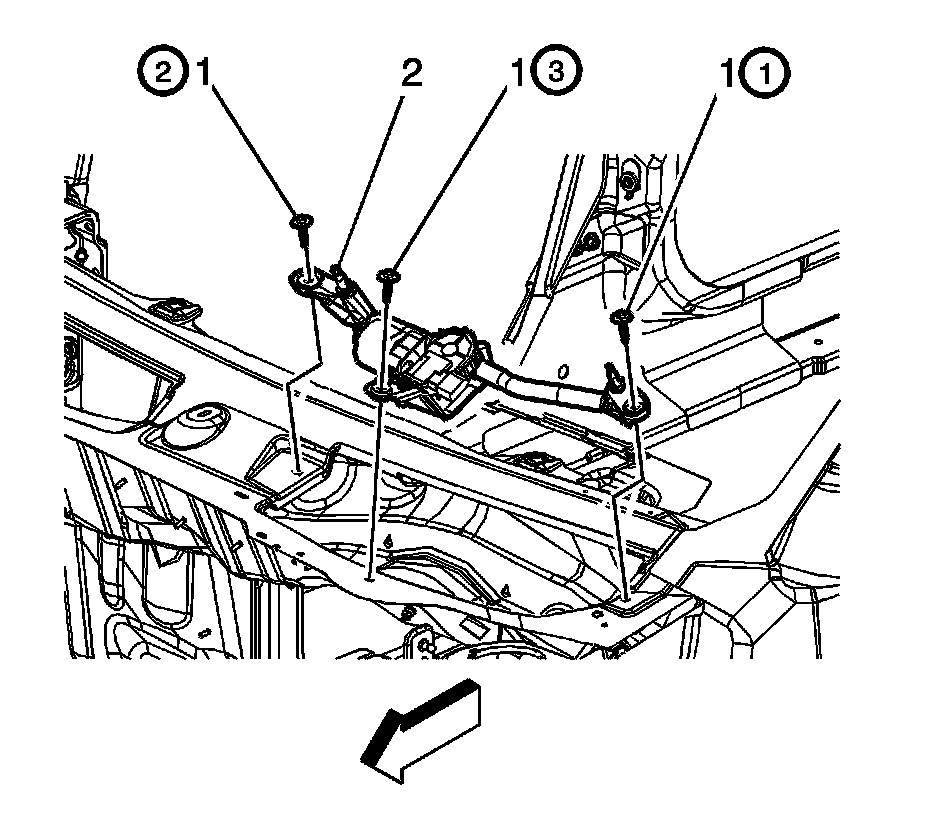

3. Remove the fasteners (1) attaching the wiper module (2) to the plenum.
4. Disconnect the electrical connector from the wiper motor.
5. Remove the wiper module assembly from the plenum.

INSTALLATION PROCEDURE
1. Connect the electrical connector to the wiper motor.




2. Install the wiper module assembly into the plenum.

3. NOTE: Refer to Fastener Notice.

Install the fasteners (1) attaching the wiper module assembly (2) to the plenum.
Tighten the fasteners in sequence as shown to 10 N.m (89 lb in)
4. Install the air inlet grille panel.
5. Install the wiper arms.
