PASSENGER CAR ZONING

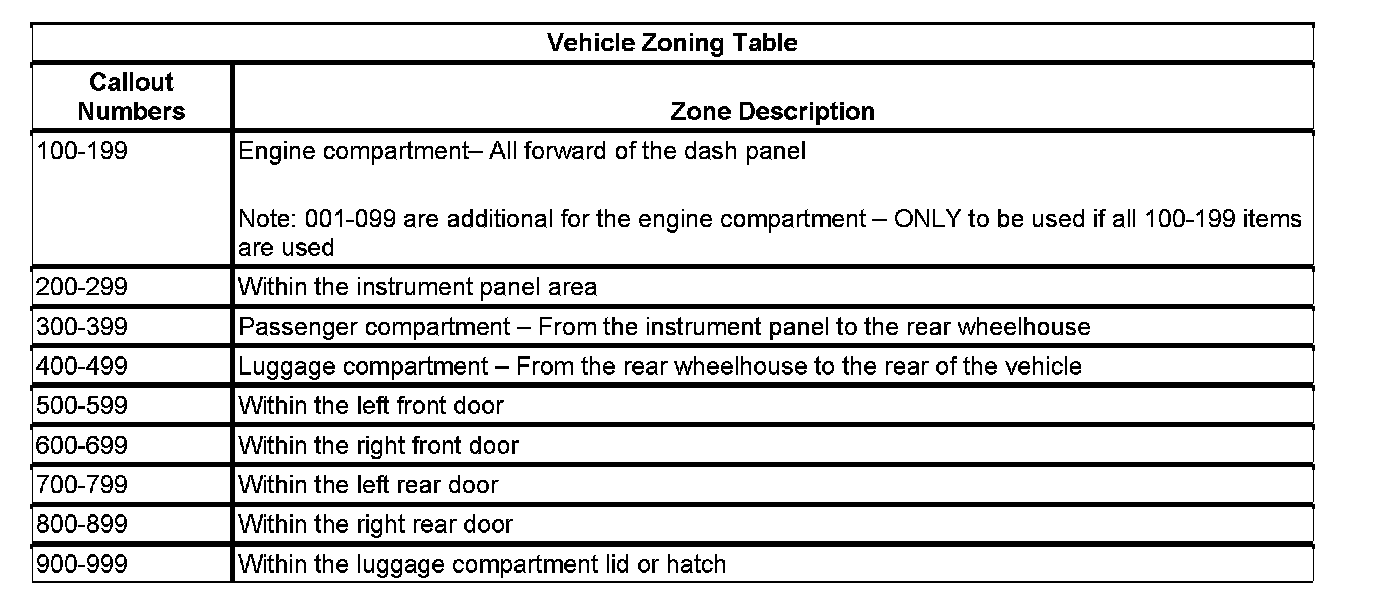

Vehicle Zoning Table:
All grounds, in-line connectors, pass-through grommets, and splices have identifying numbers that correspond to where they are located in the vehicle. The above table explains the numbering system.

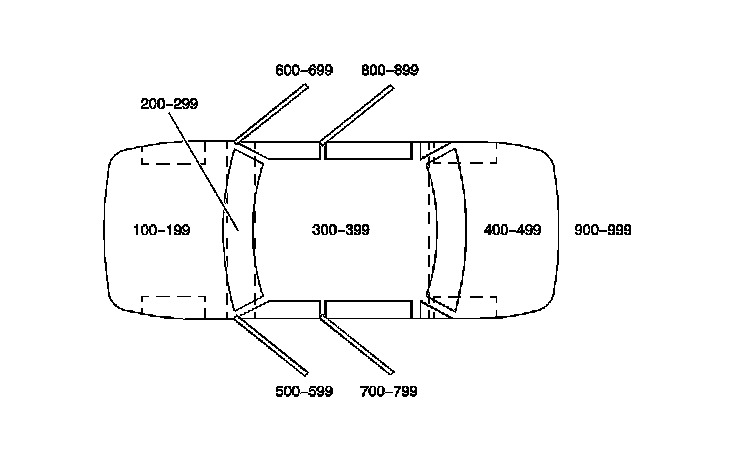

Passenger Car Zoning
