Secondary/Configurable Control Connector End Views

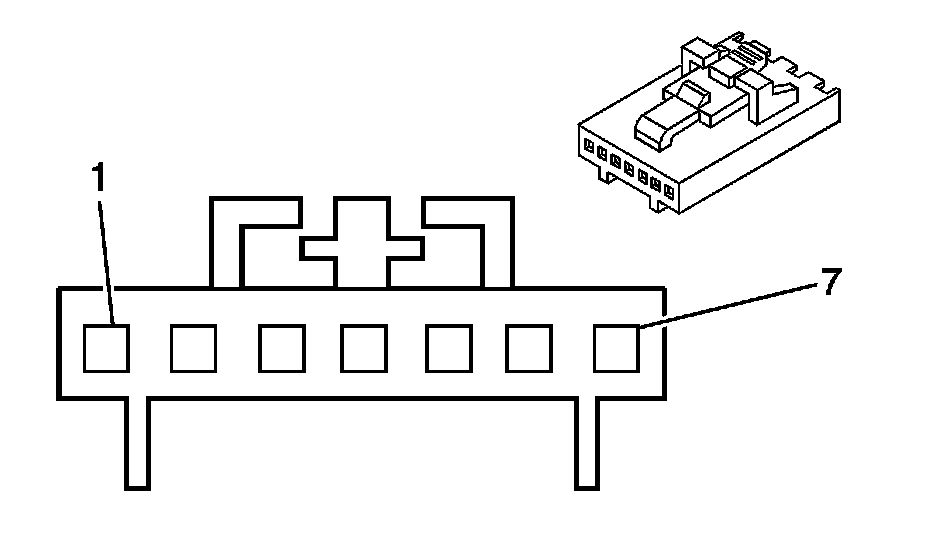

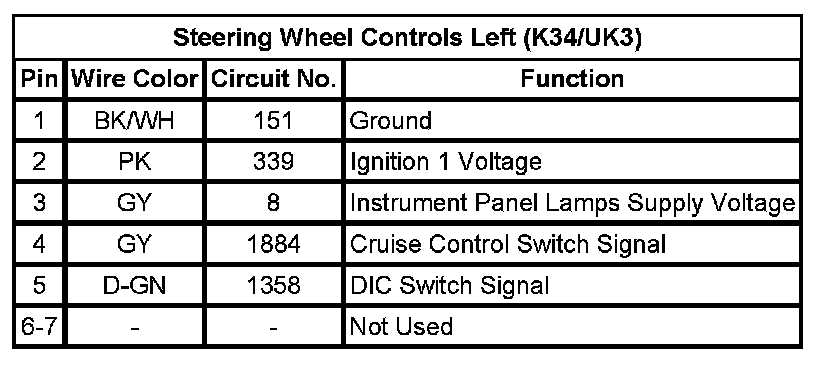

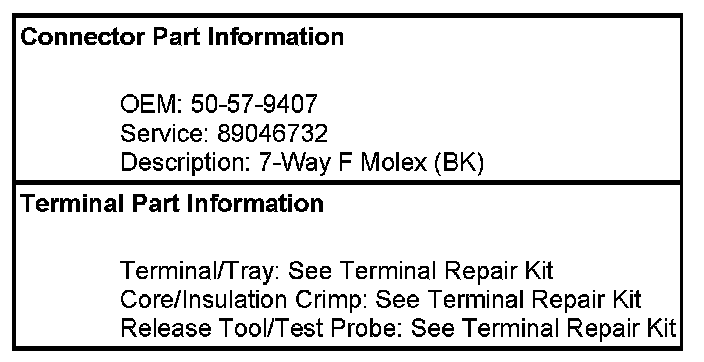

Steering Wheel Controls Left (K34/UK3)
Steering Wheel Controls - Left:

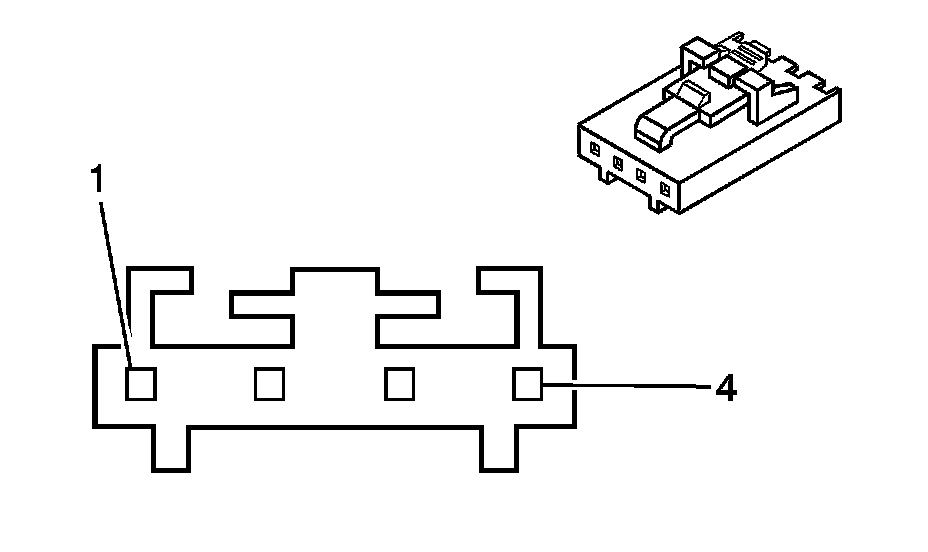

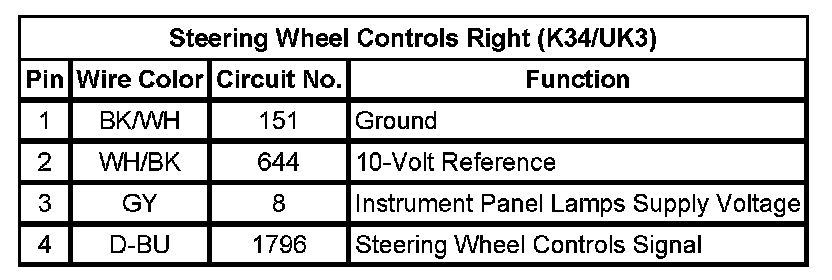

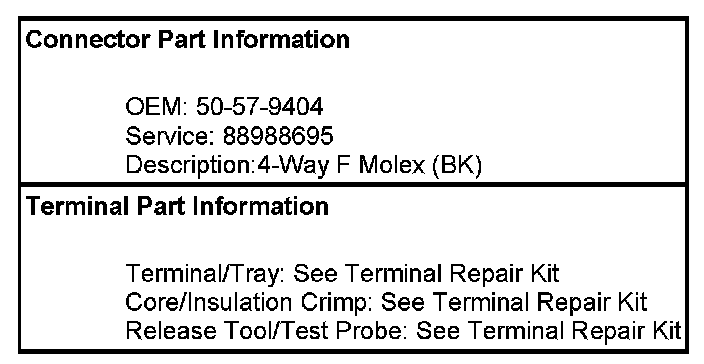

Steering Wheel Controls Right (K34/UK3)
Steering Wheel Controls - Right (UK3):

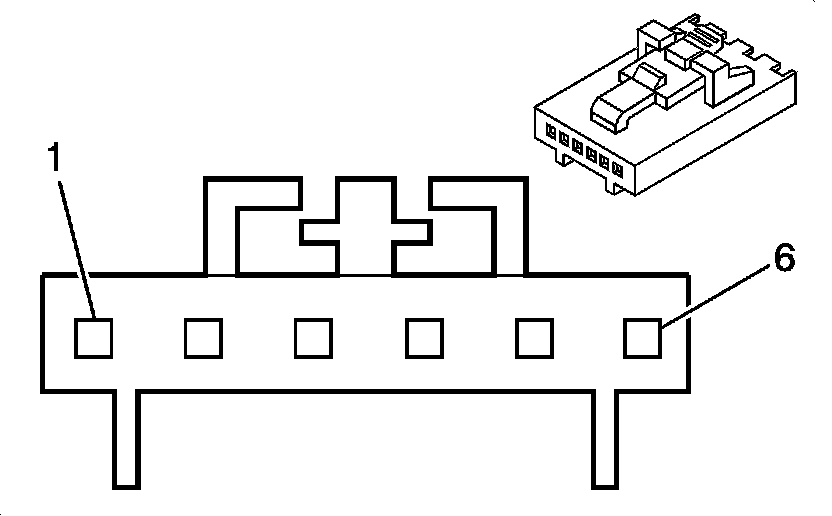

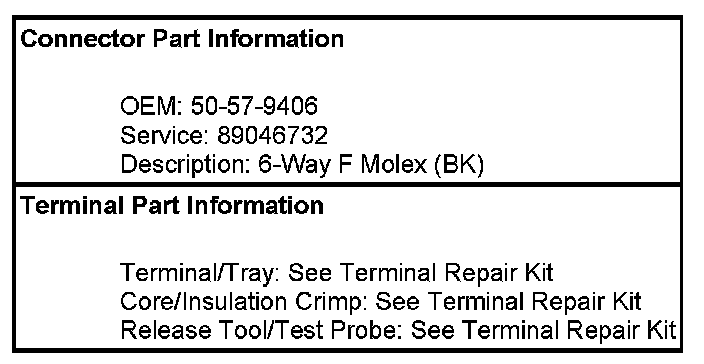

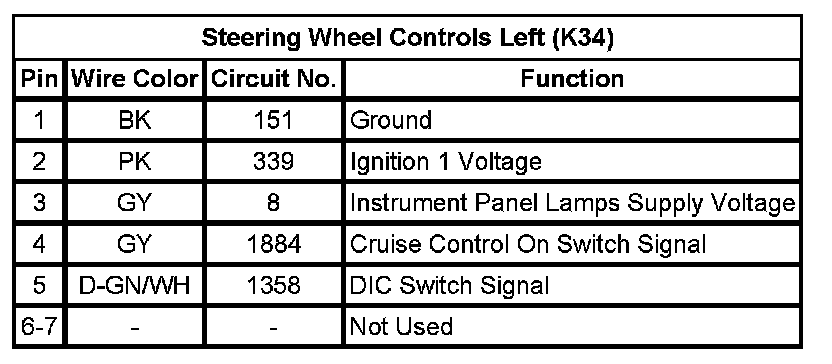

Steering Wheel Controls Left (K34)
Secondary/Configurable Control Connector End Views
