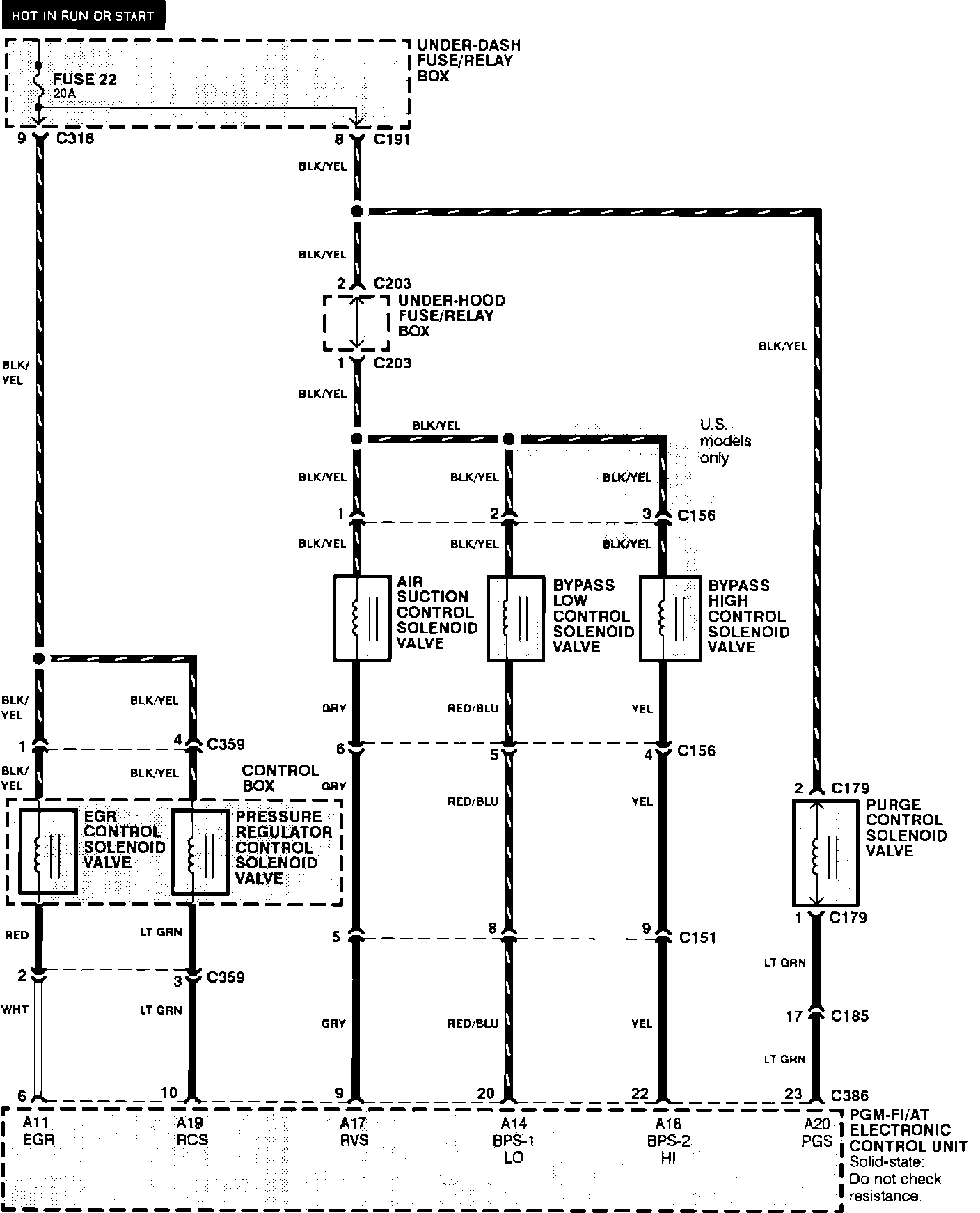

Electrical Diagrams

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your Acura hyperlink.

AI Repair Guides

Engine Management: Engine And Vehicle Data Sensors:
