Operation number: 43715-2
Transmission Control Module (TCM)
Removal
Note! Removal steps in this procedure may contain installation details.
Perform battery disconnecting and connecting. Battery, Disconnecting
Remove Accessory Drive Component Bracket Refer to: Accessory Drive Component Bracket, B6324S5, B6324S4 Service and Repair

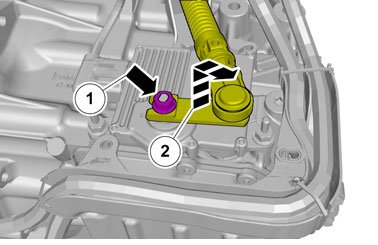

Torque: Gear selector mechanism (nut), 16 Nm

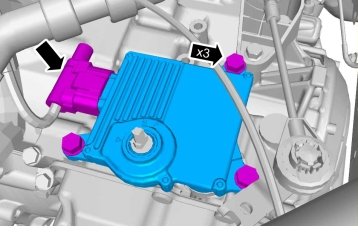

Torque: M8, 24 Nm
Installation
To install, reverse the removal procedure.
Order and download software Programming and Relearning

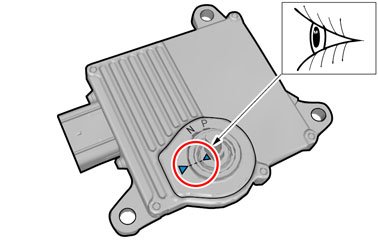

Calibrate position sensor
