Operation number: 37206-2

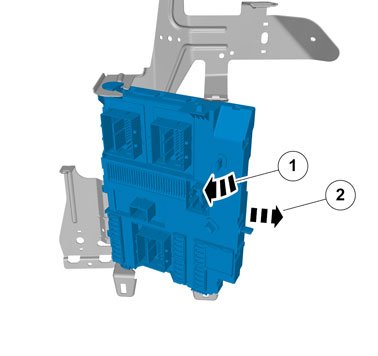

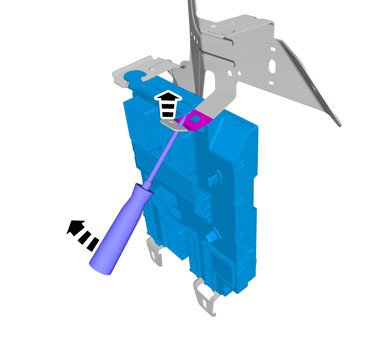

Control module relay box passenger compartment
Removal
Check according to: Checking communication and control module
Perform battery disconnecting and connecting

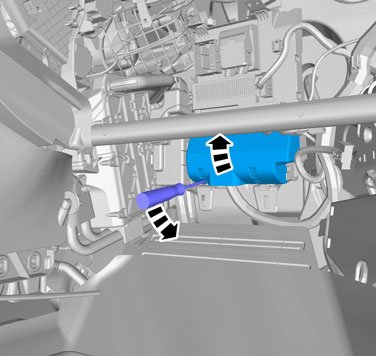

Remove glove compartment Refer to: Glove compartment Glove Compartment
Caution! The instrument cluster and generic electronic module (GEM) must only be removed and new ones installed and loaded with software one at a time.
Note! Make sure that the component terminals are not bent or damaged.
Installation
To install, reverse the removal procedure.
Order and download appropriate software Programming and Relearning
Calibrate according to: Calibrating position sensor
