Operation number: 32102-2
Generator
Removal

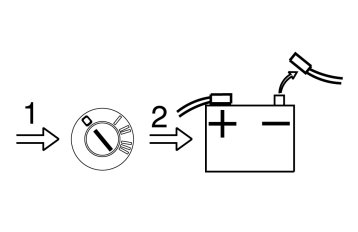

Perform battery disconnecting and connecting. Battery, Disconnecting
Remove intake manifold Refer to: Induction pipe, B6324S5, TF-80SC AWD, B6324S5, TF-80SC, B6324S4, TF-80SC AWD, B6324S4, TF-80SC Service and Repair
Installation
Note! Only tighten the bolt finger tight at this stage.

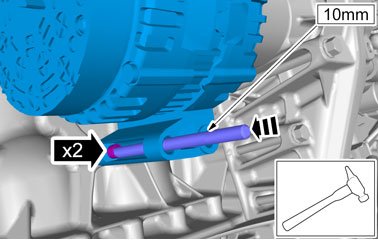

Caution! Make sure that the component is correctly located on the locating dowels.

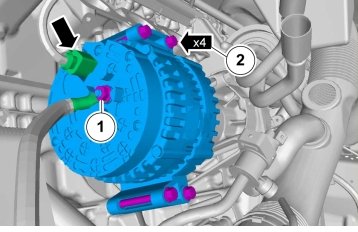

1. Torque: Generator B+ terminal, 15 Nm
2. Torque: M8, 24 Nm
