Component specifications
Shift solenoids

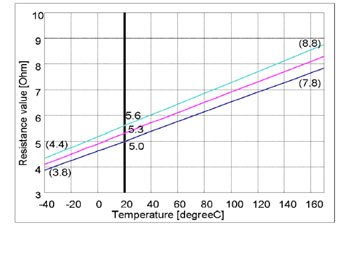

Other values, see diagram. When measuring at other temperature than +20 °C the check-measurement shall be performed at +20 °C. This is to ensure if the resistance is correct or not.

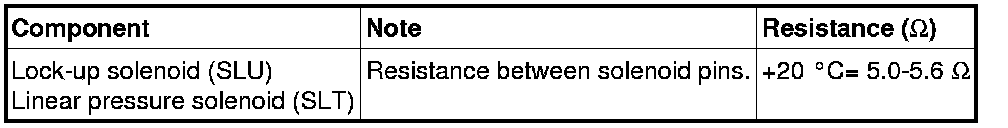

Linear pressure solenoid SLT and Lock-up solenoid SLU

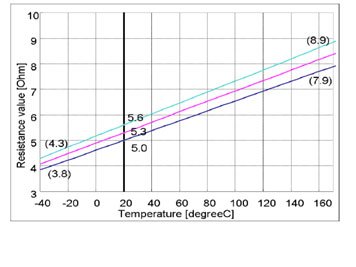

Other values, see diagram. When measuring at other temperature than +20 °C the check-measurement shall be performed at +20 °C. This is to ensure if the resistance is correct or not.
Linear pressure solenoid SLB1, SLC1, SLC2, SLC3

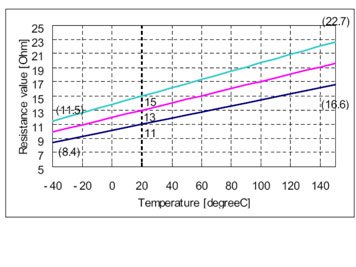

Other values, see diagram. When measuring at other temperature than +20 °C the check-measurement shall be performed at +20 °C. This is to ensure if the resistance is correct or not.

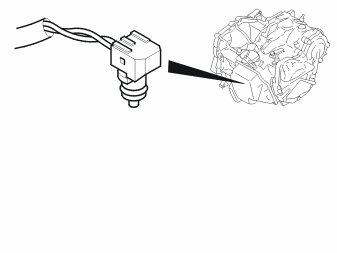

Oil temperature sensor

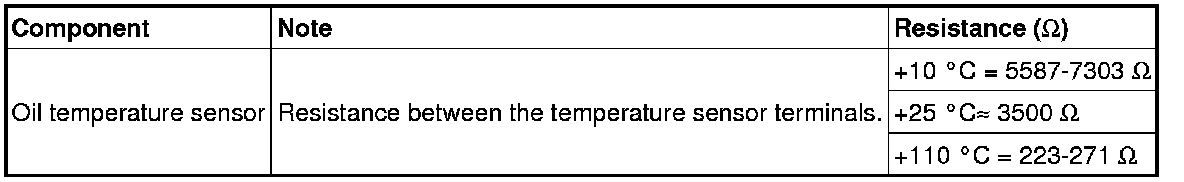

Oil Temperature Sensor:
Resistance decreases with increasing temperature.
A test measurement must be taken at both temperatures. This is to establish if the resistance is correct or not.

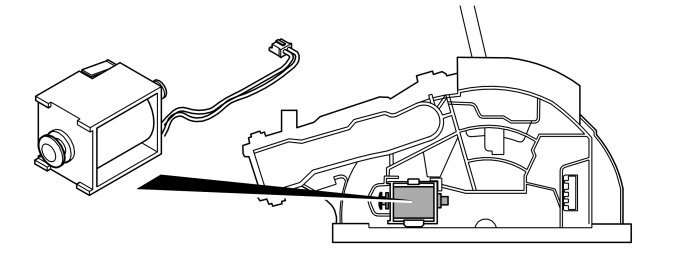

Solenoid p-position lockout
