Operation number: 28403-2

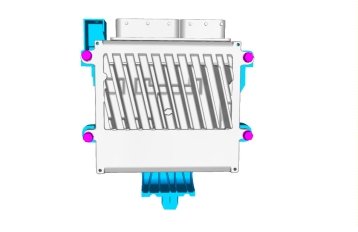

Engine control module (ECM)
Removal
Note! Removal steps in this procedure may contain installation details.
Caution! If a new module is to be installed the adaptation values must be downloaded before removal.

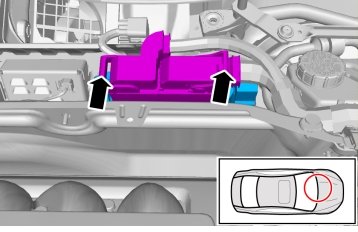

Remove the plenum cover Refer to: Cowl Panel Cover Service and Repair

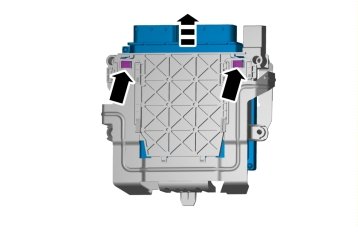

Note! Make sure that the component terminals are not bent or damaged.
Torque: M6, 10 Nm
Installation
To install, reverse the removal procedure.
Order and download software Programming and Relearning
