Signal specification
General

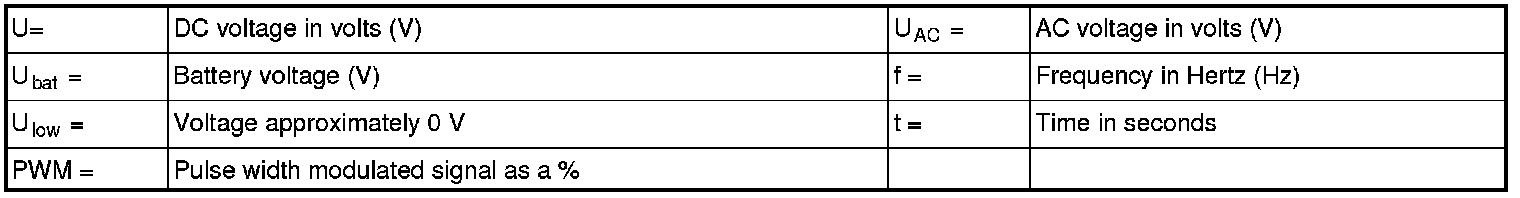

All values given below are between the connection stated in column 1 and connection #22 in column 1 (power ground). This applies unless otherwise indicated in brackets.
Note! It is important to connect the breakout box and check the ground connections before starting to measure.

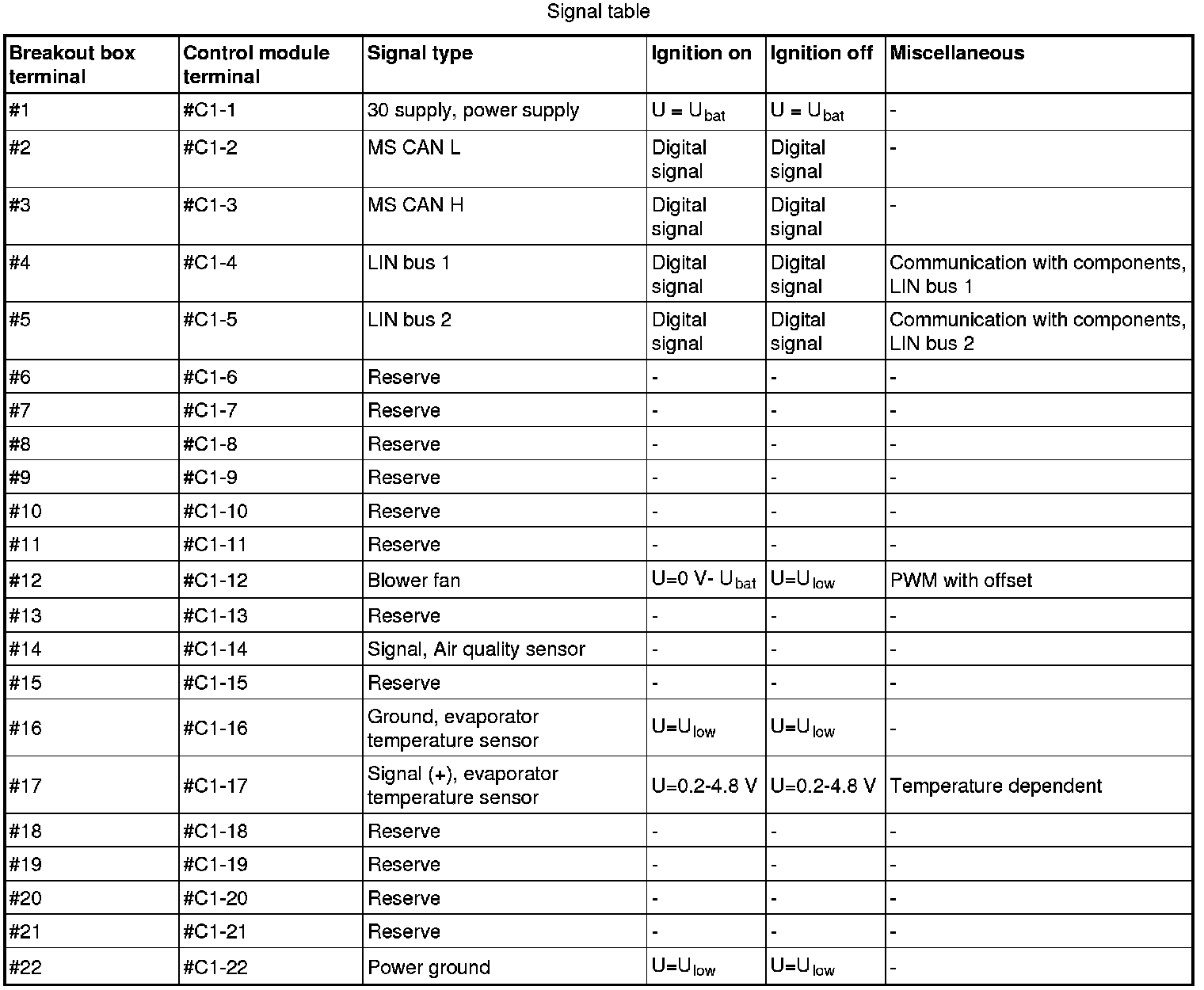

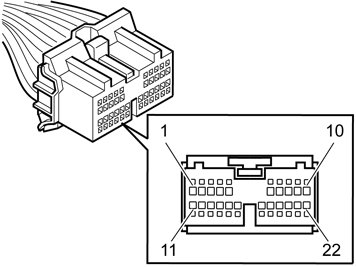

Connector C1
