AC compressor
Removal
Note! Removal steps in this procedure may contain installation details.
Drain the refrigerant Refer to: Refrigerant, draining Refrigerant, Draining

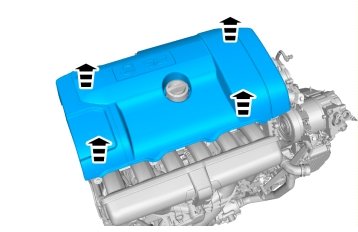

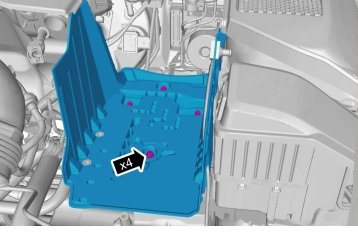

Remove battery Refer to: Battery Battery
Torque: M8, 24 Nm

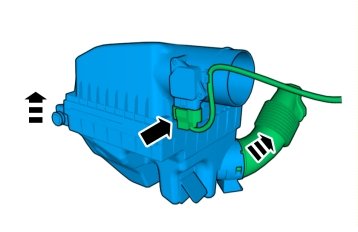

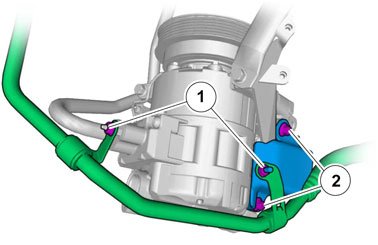

Remove the following items:
1. Torque: M6, 10 Nm
2. Torque: M8, 24 Nm

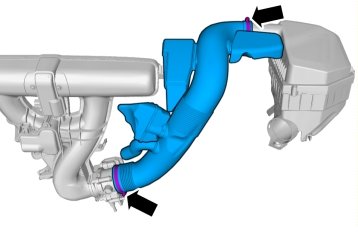

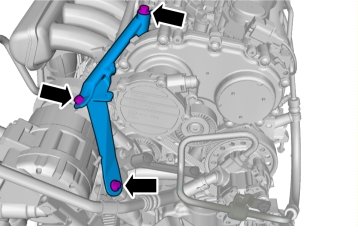

Torque: M8, 24 Nm

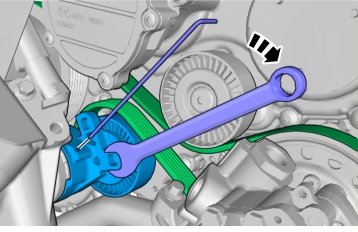

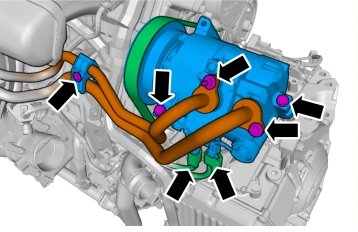

Remove the following items:
1. Torque: M5, 5 Nm
2. Torque: M6, 10 Nm
3. Torque: M8, 24 Nm
Remove wiper Refer to: Receiver drier, B6324S5, B6324S4 Service and Repair
Installation
Note! Use new seals.
To install, reverse the removal procedure.
Perform draining refrigerant, vacuum pumping, and filling Refer to: Draining refrigerant, vacuum-pumping, and filling Draining Refrigerant, Vacuum-Pumping, And Filling
Perform climate unit, checking Refer to: Climate control system, check Climate Control System, Check
