Operation number: 36653-2

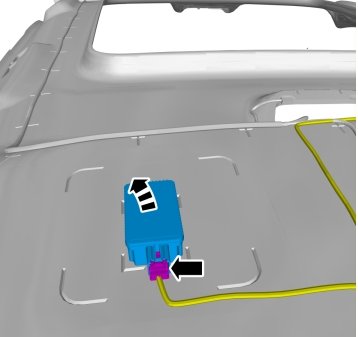

Locking system receiver
Removal
Note! Removal steps in this procedure may contain installation details.
Remove the following items:

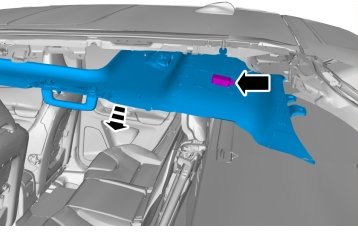

- left panel B-pillar Refer to: B-pillar trim panel B-Pillar Trim Panel
- left side panel cargo compartment Refer to: Side panel loadspace Side Panel Loadspace

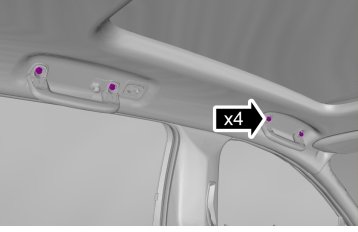

Torque: M6, 10 Nm
Torque: M8, 24 Nm
Caution! Take extra care not to crease the headliner.
Installation
To install, reverse the removal procedure.
