Signal description Central Electronic Module (CEM)

General

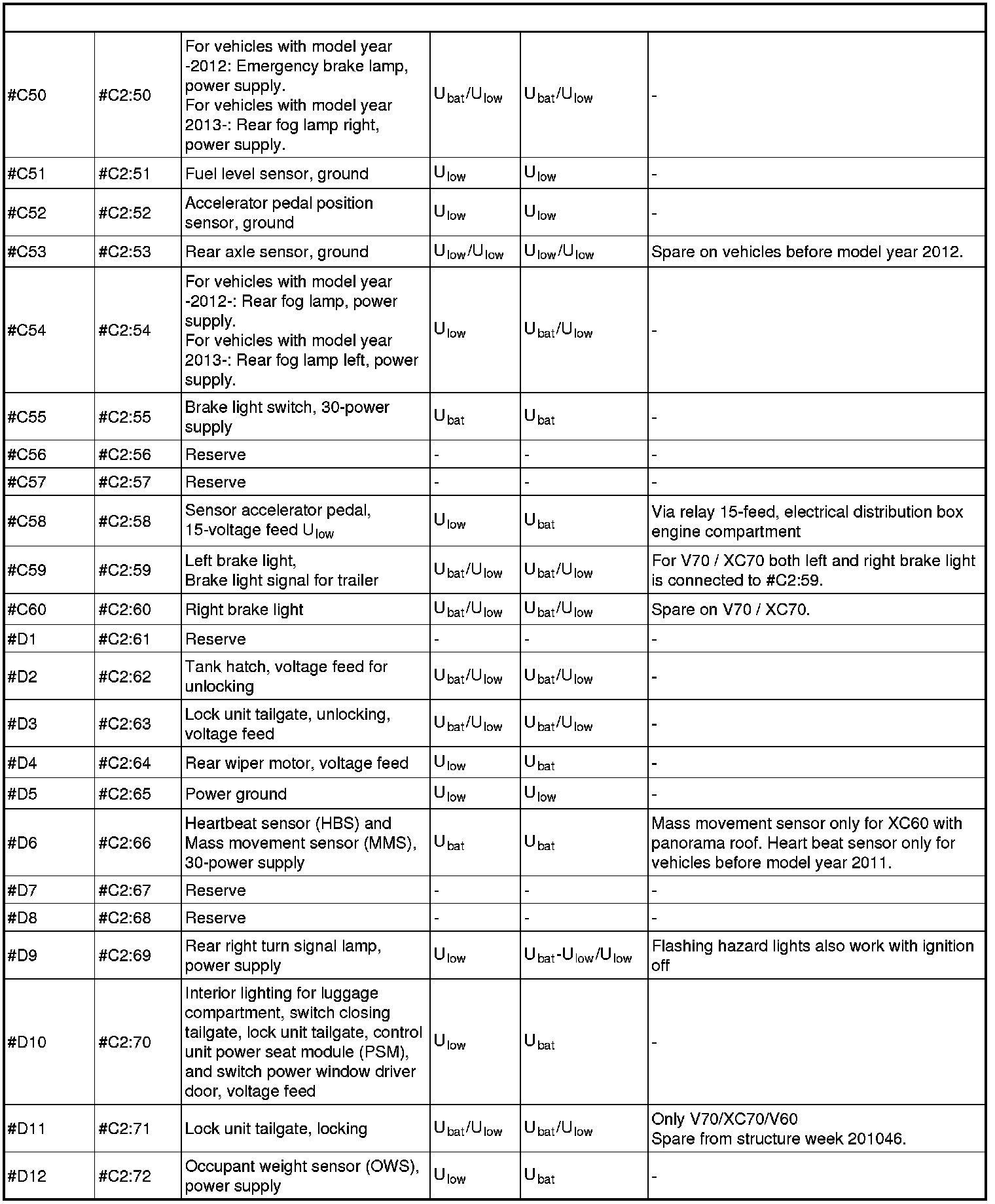

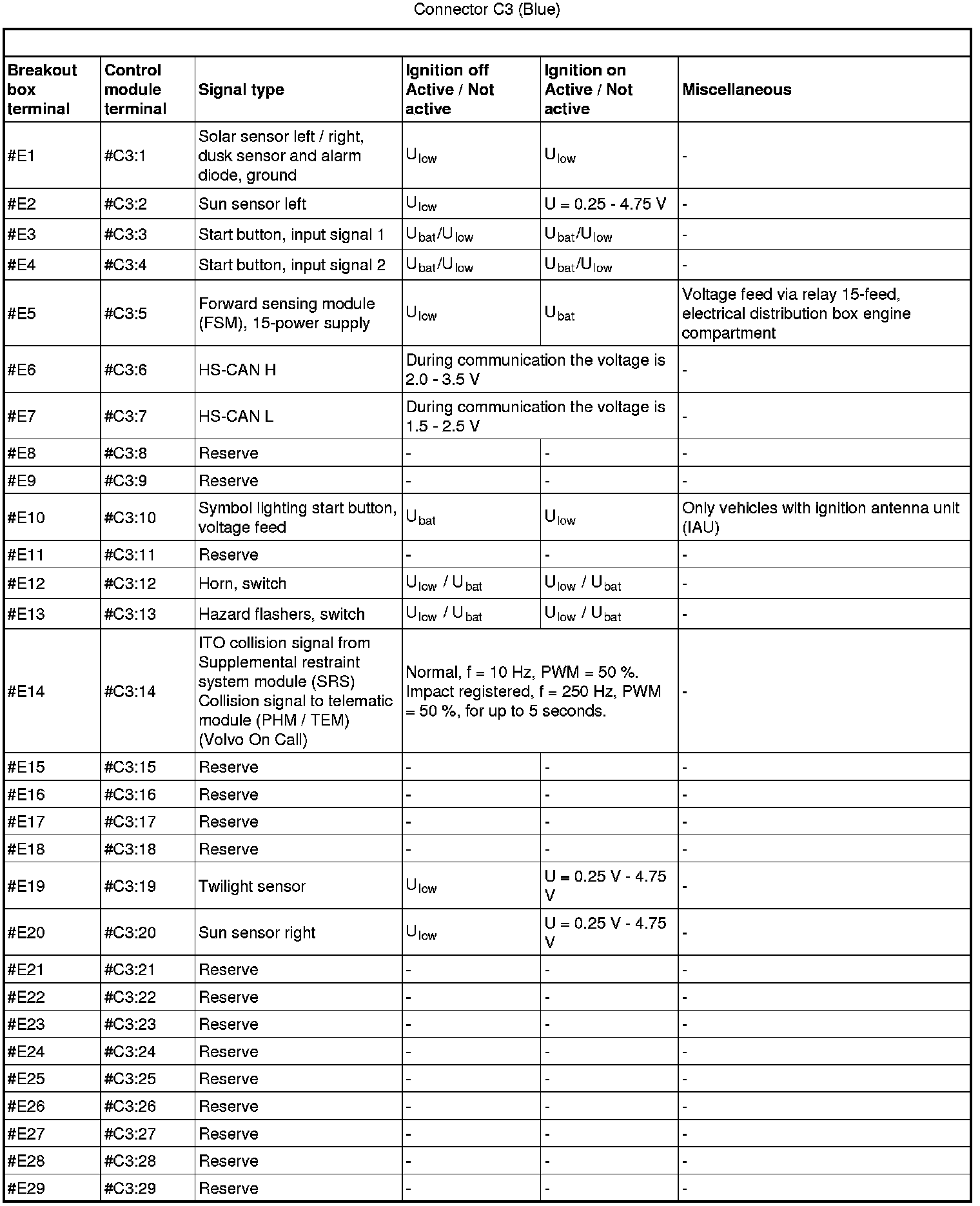

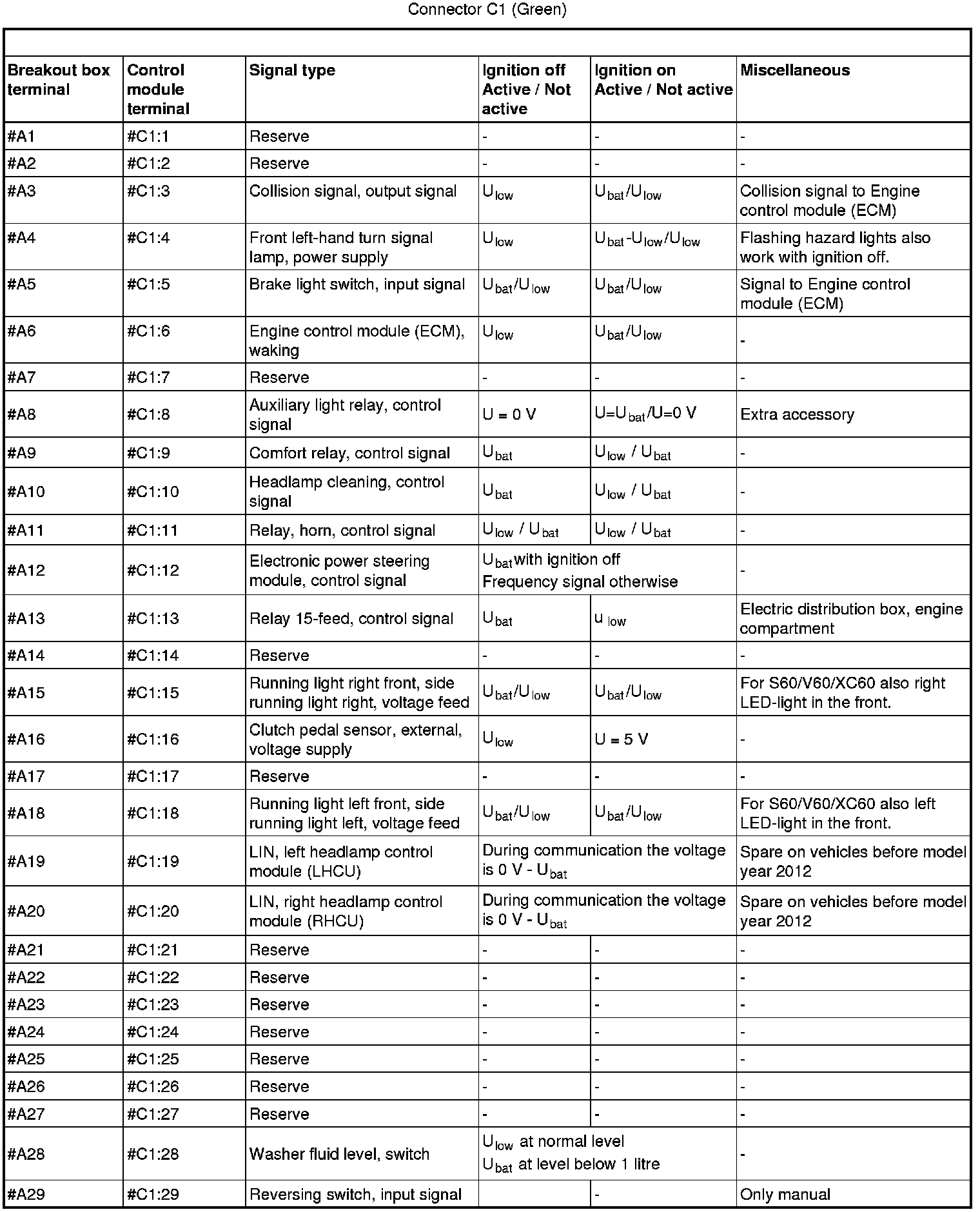

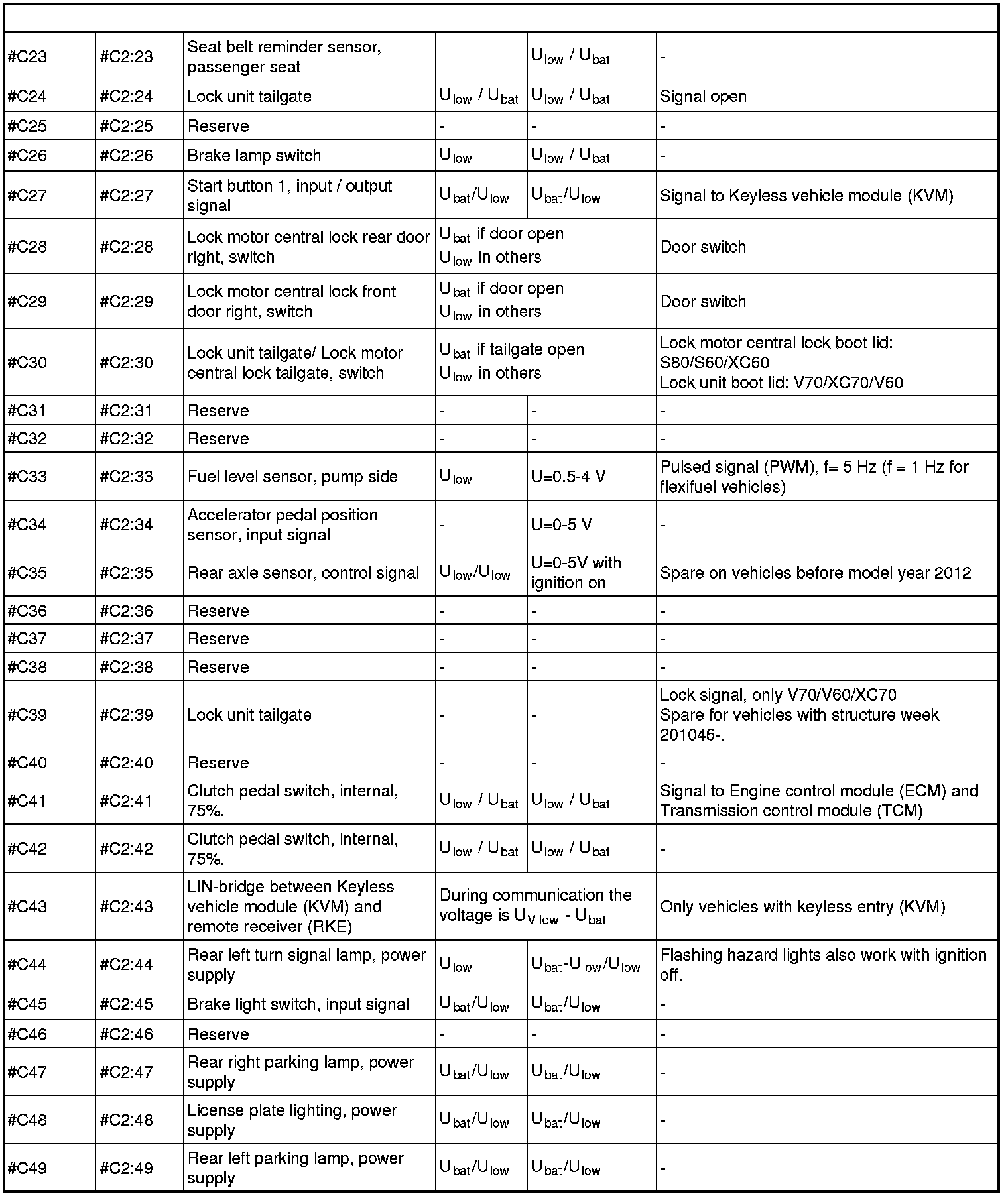

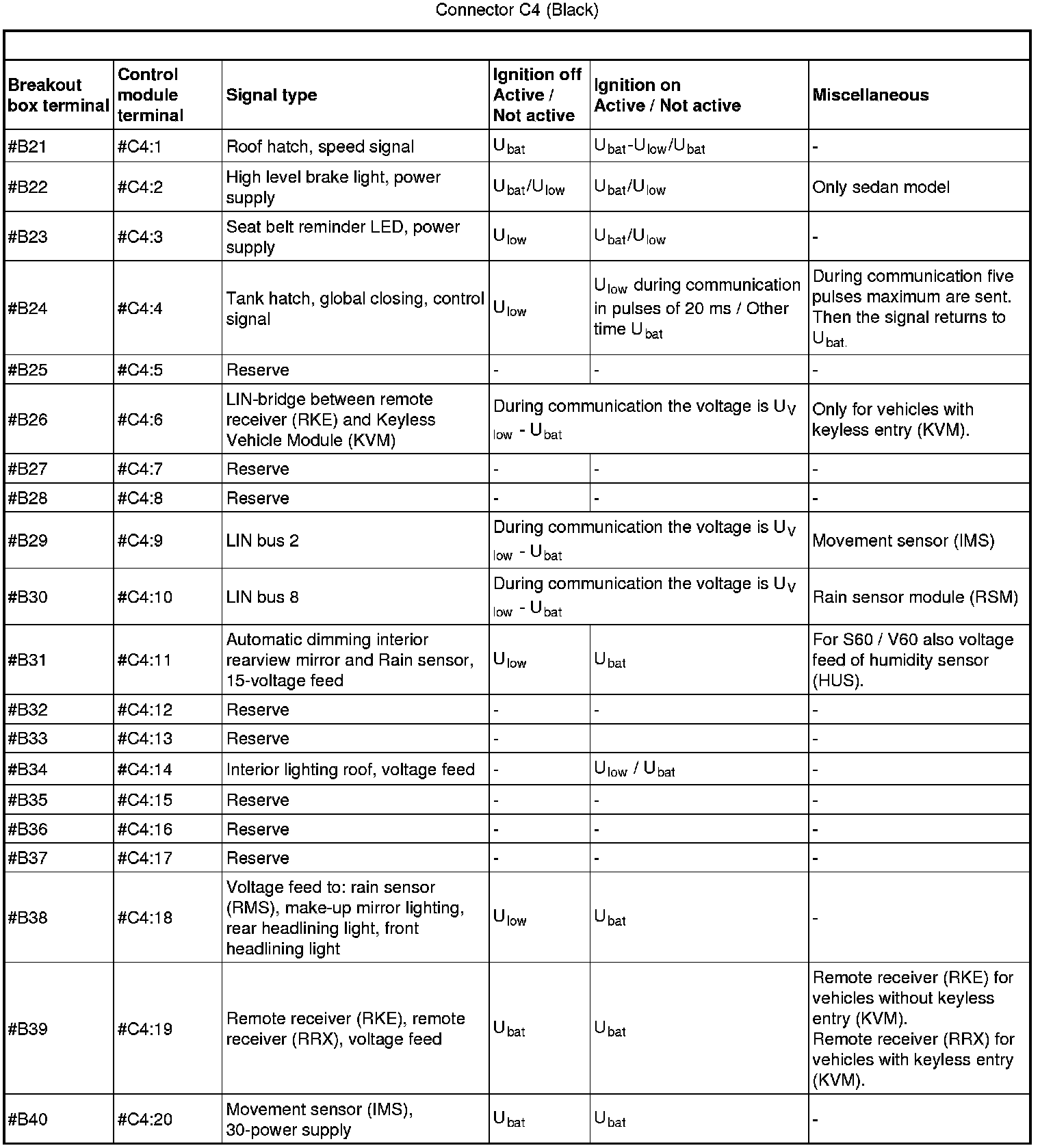

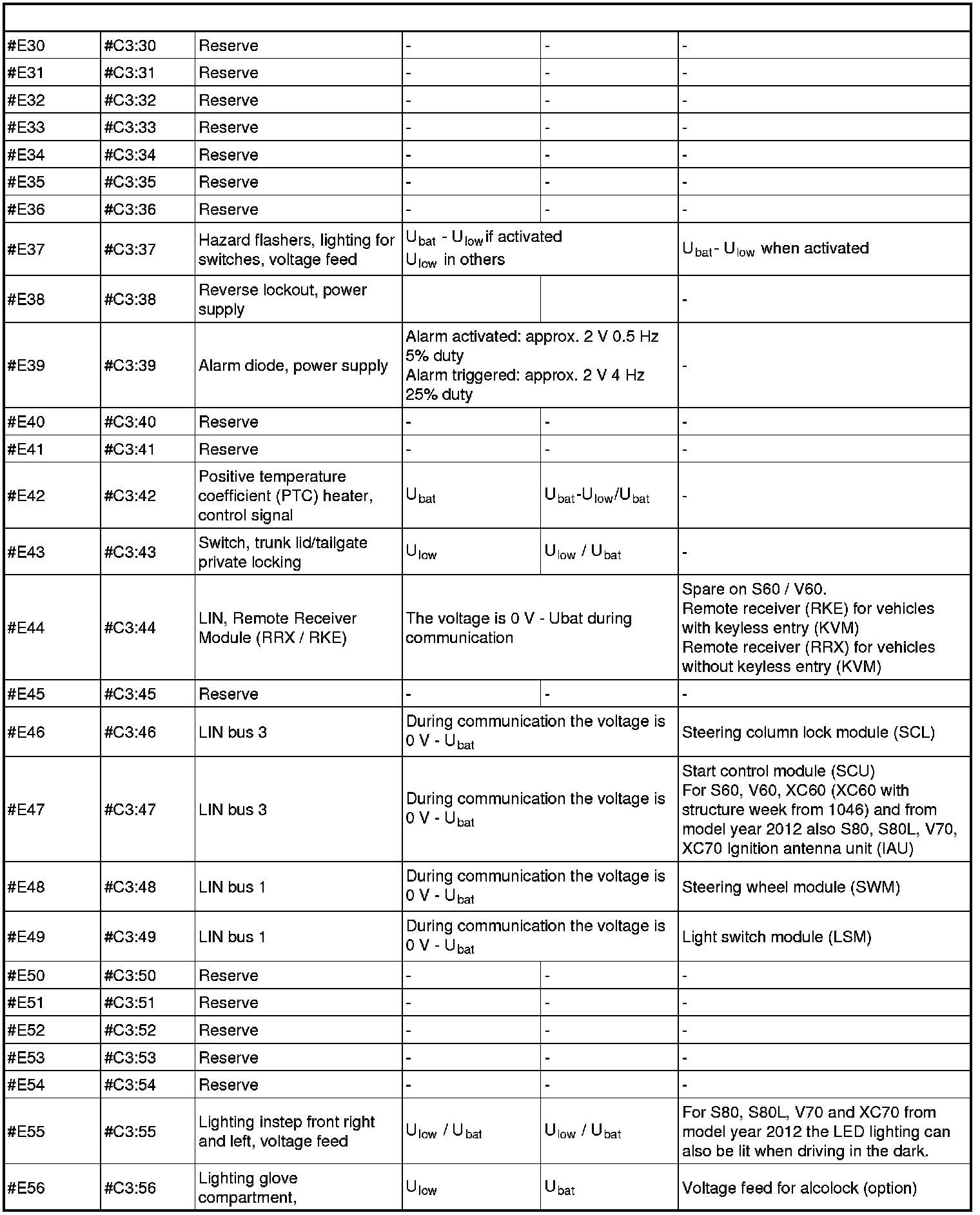

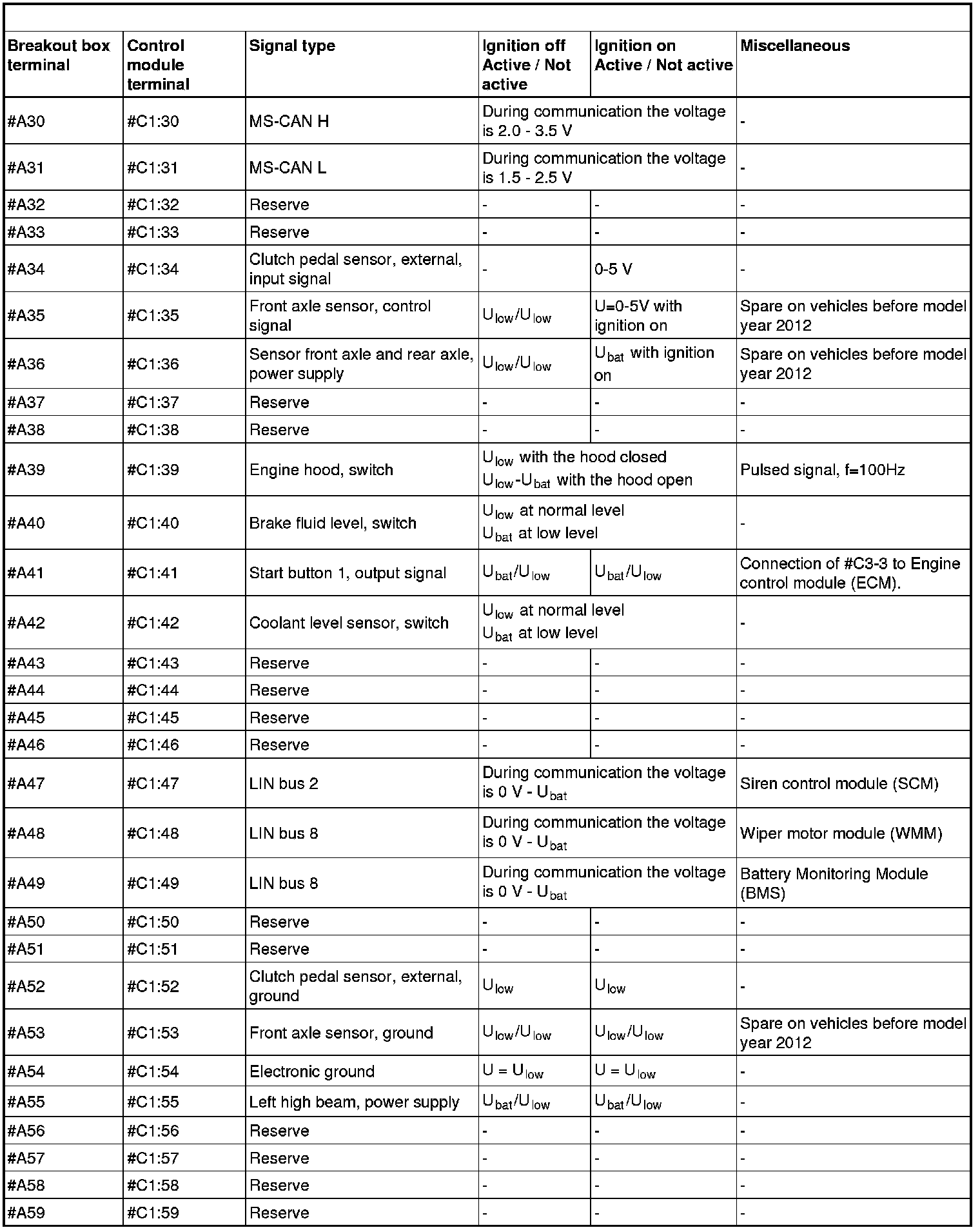

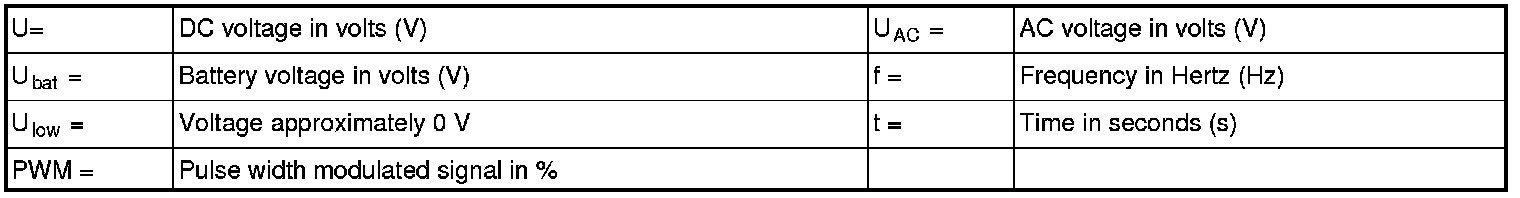

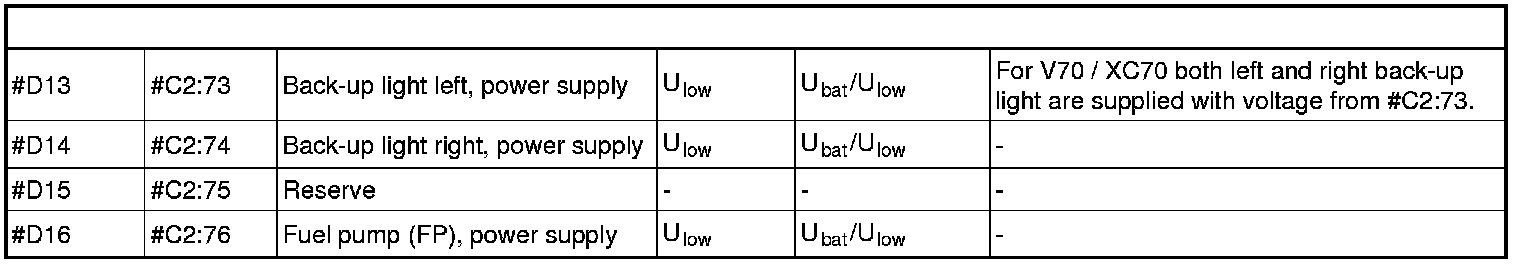

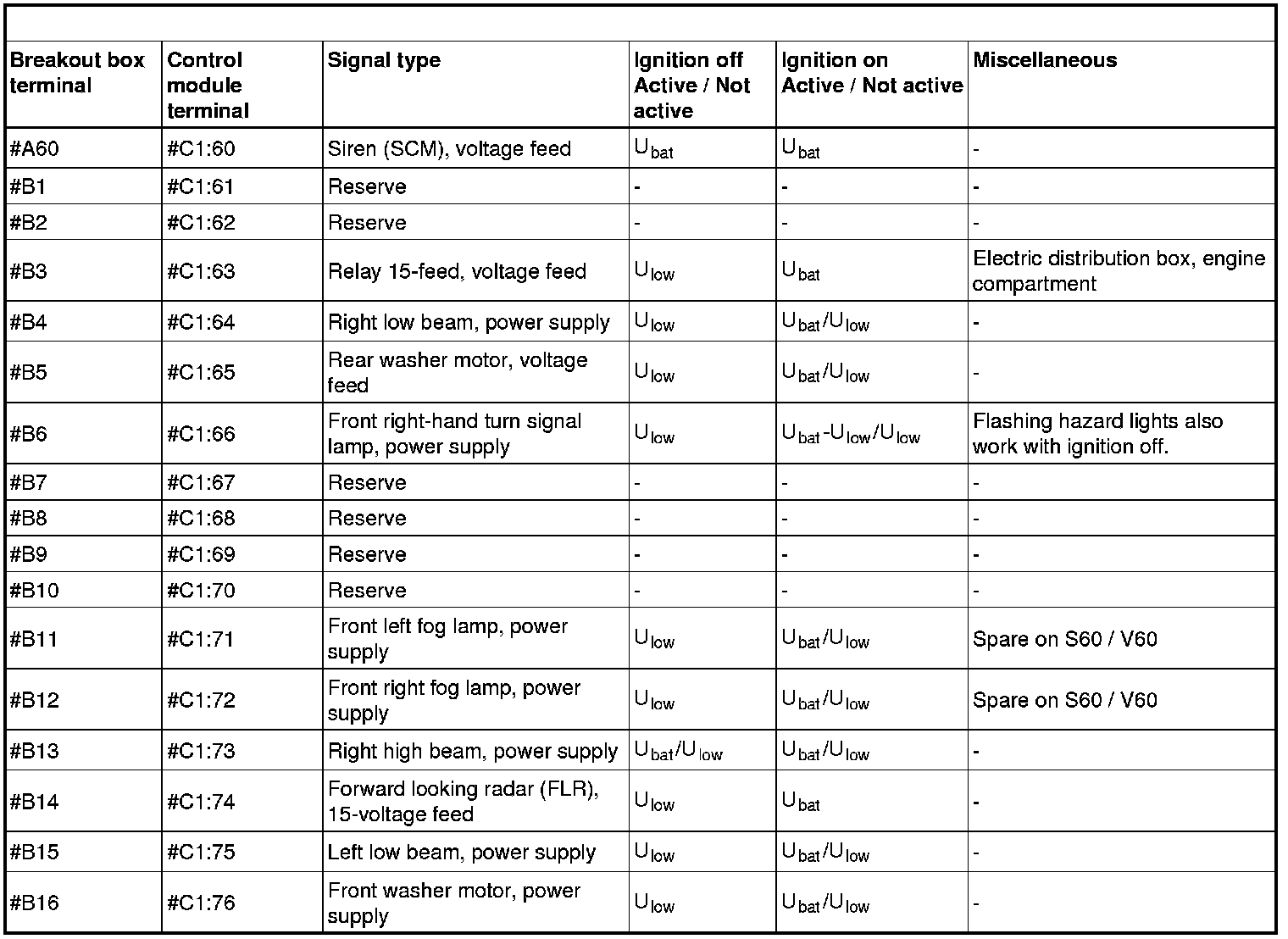

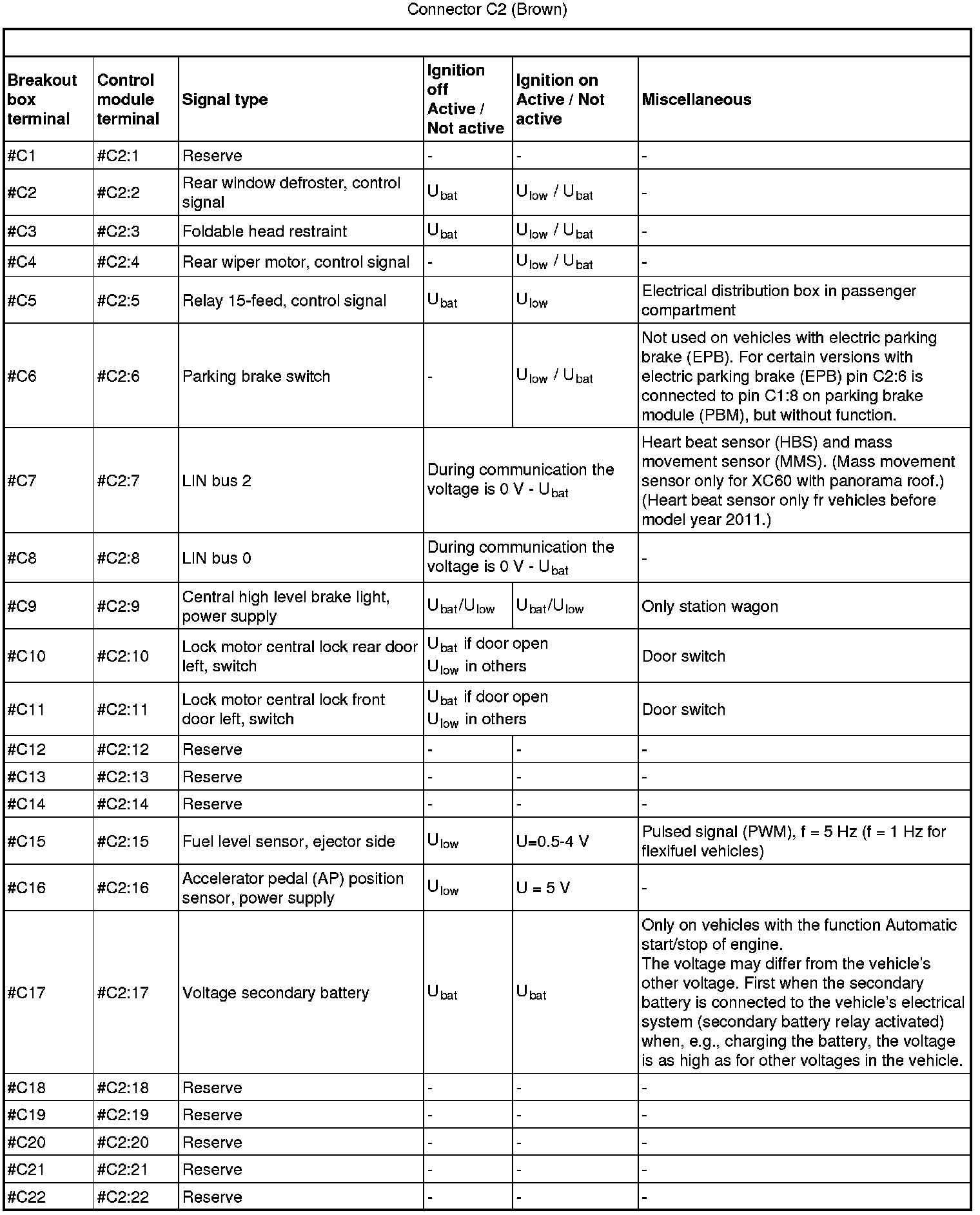

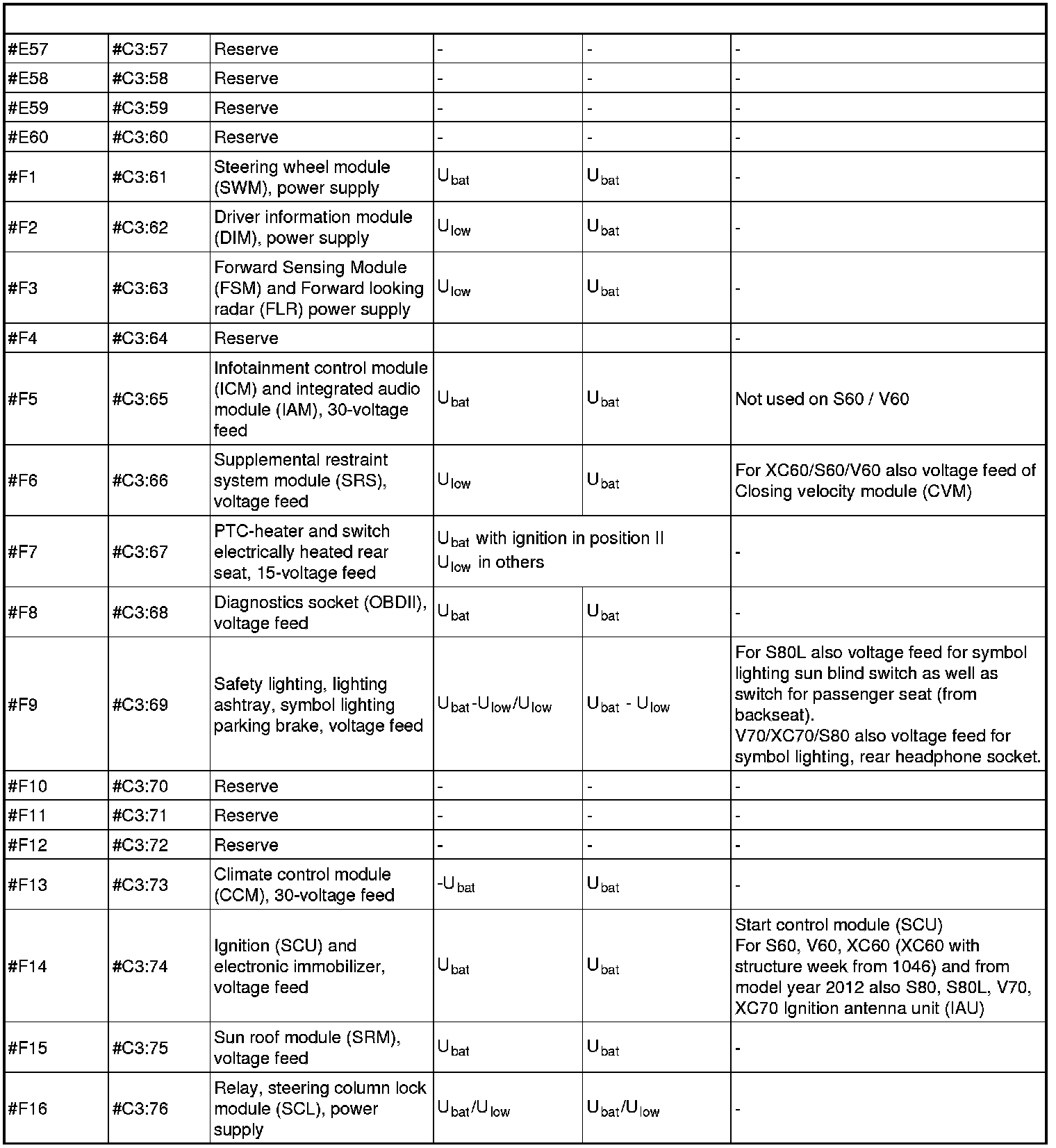

All the values given below apply between the respective connection (column 1) and power ground (#D5). If this is not the case, it is indicated in brackets.

Note! It is important to connect the breakout box and check the ground connections before starting to measure.
