Component specifications

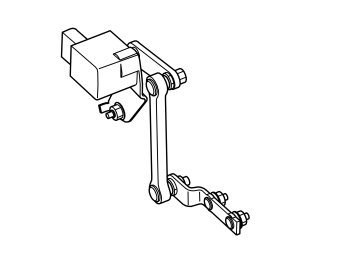

Position sensor 7/119, 7/121
General
Type
Resistance sensor.
Characteristic
Resistance between #C1:1 and #C1:4 changes linearly depending on angle.

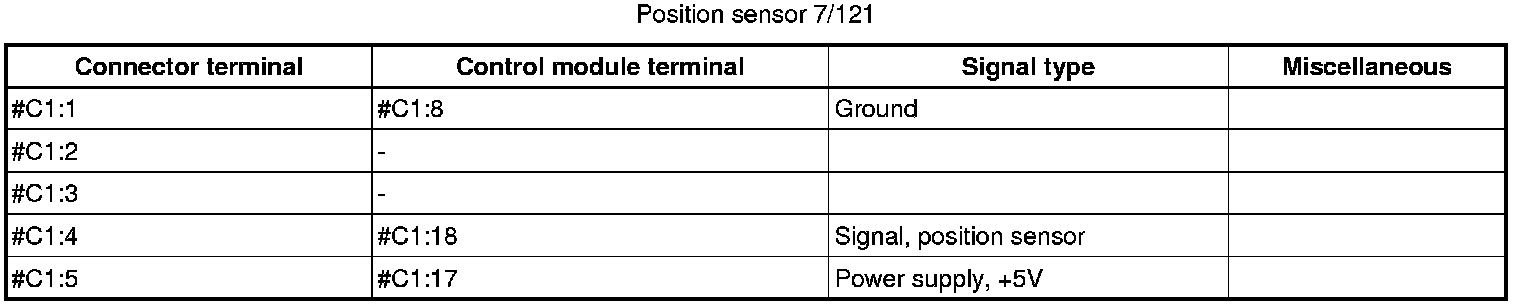

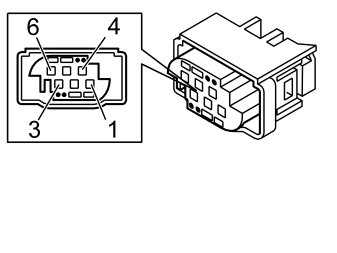

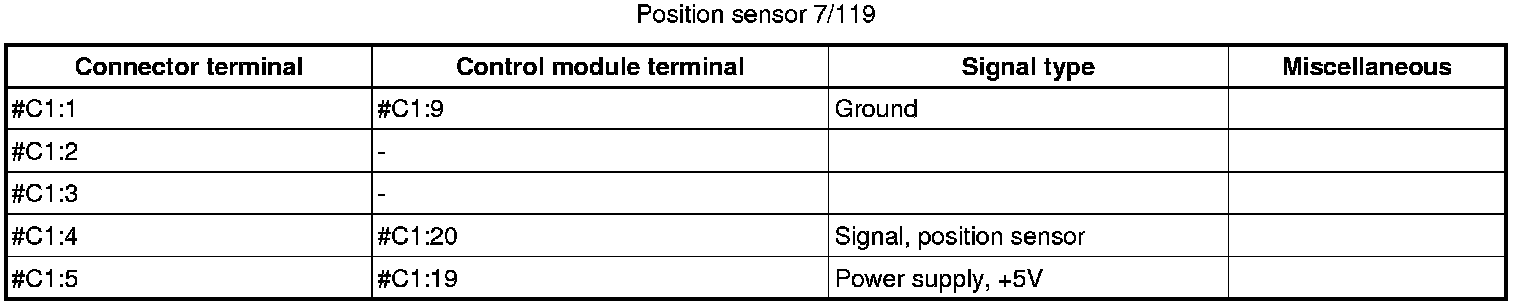

Terminal
Check
Prerequisites (unless otherwise specified):
- Sensor connected.
- Ignition switch position II.
Check 1
Position sensor:
Measure direct current between #C1:1 and #C1:4. The value should be:
Uapproximately 1.5-3.8 V at ignition position II.
