Signal Description, Transmission Control Module (TCM)

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2011 Volvo.

Signal specification

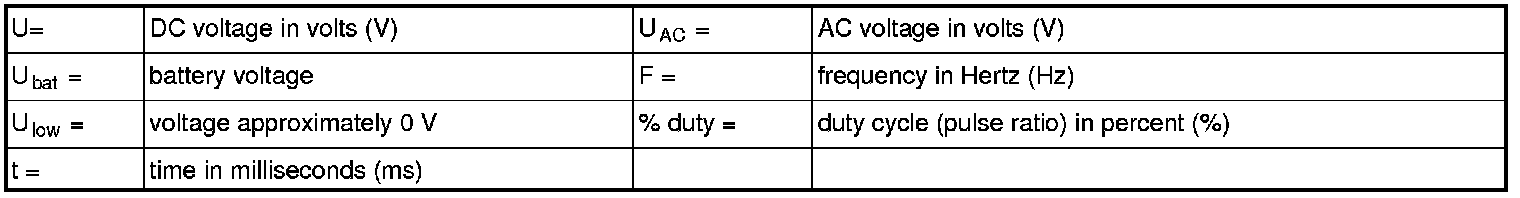

All values indicated below are between respective connection in column 1 and #A9 (#39 on the breakout box). If this is not the case, it is indicated within brackets.

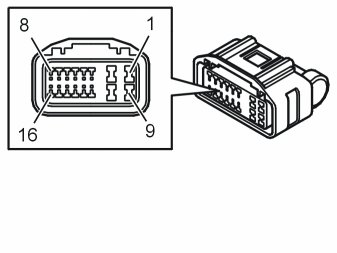

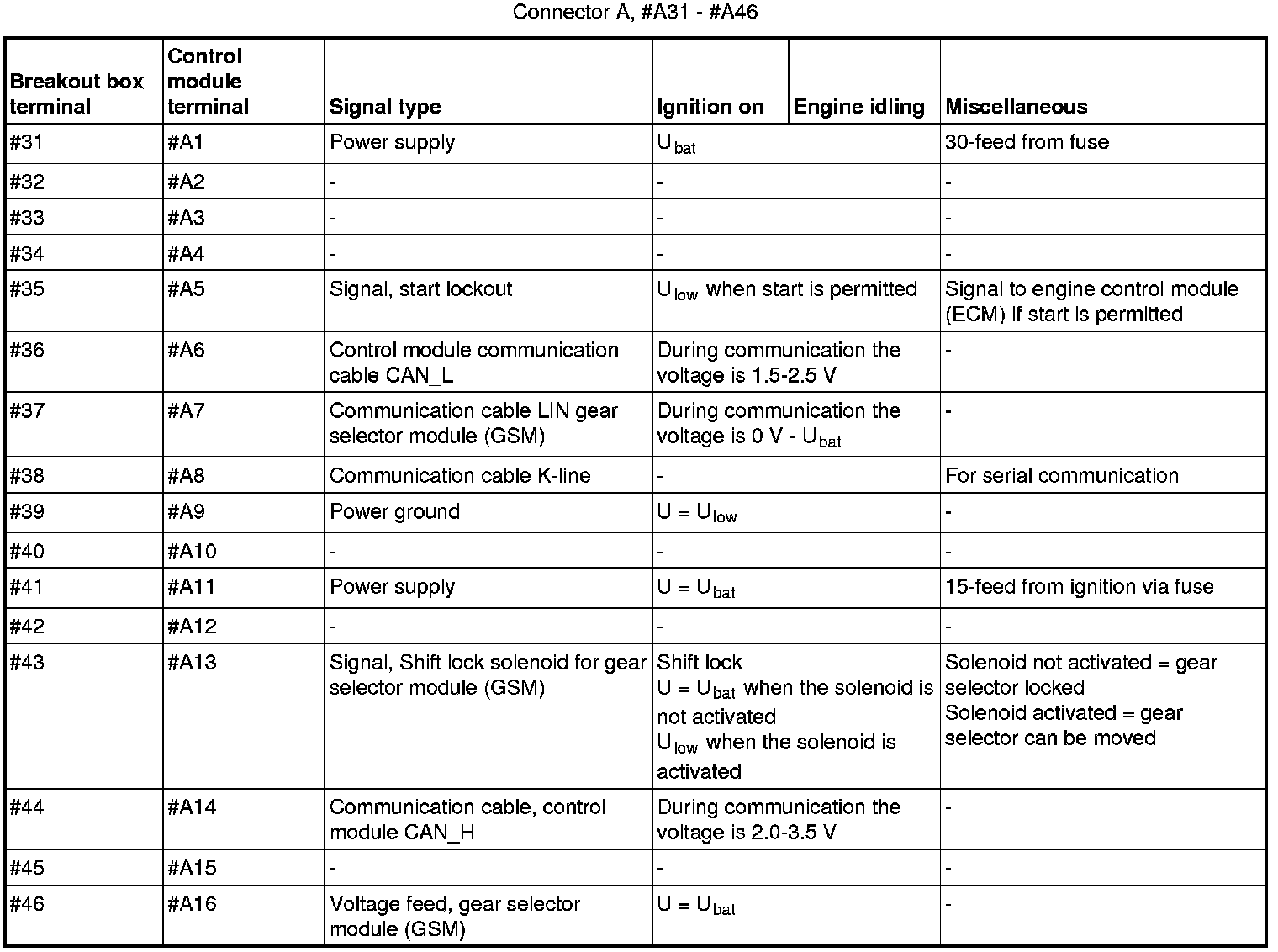

Connector A (16-pin) corresponds to #31 - #46 on the breakout box.

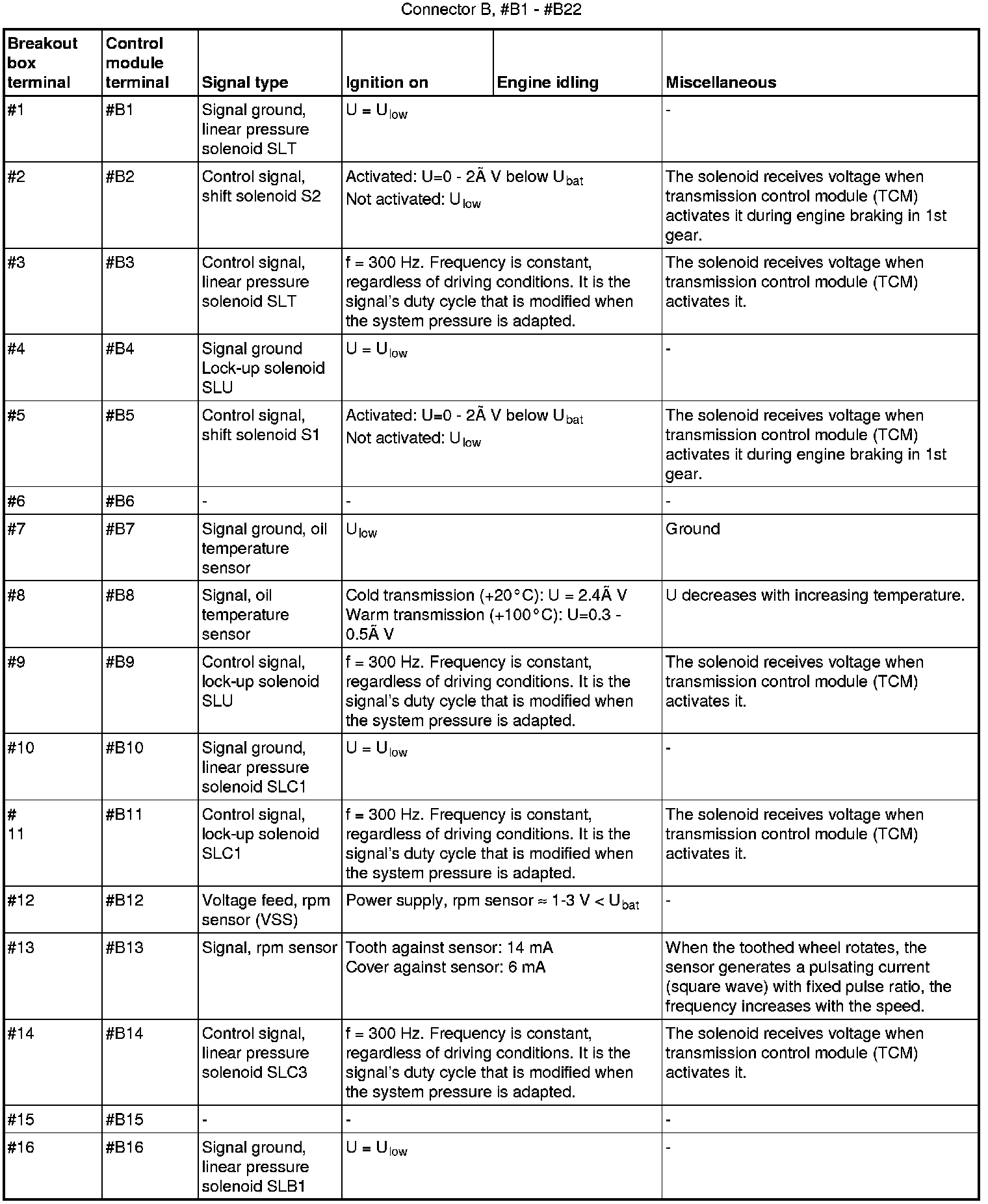

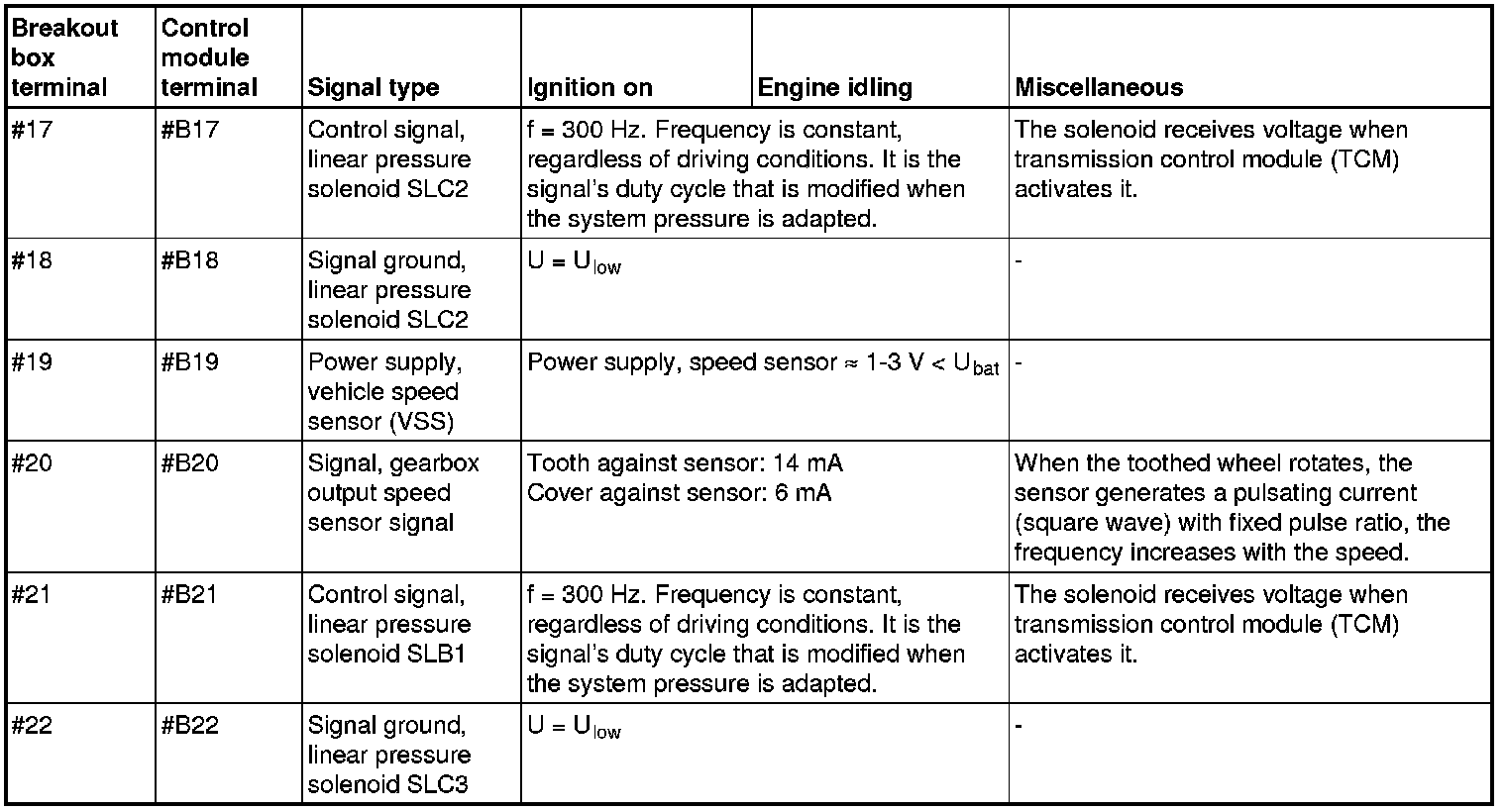

Connector B (22-pin to transmission) corresponds to #1 - #22 on the breakout box.

Note! Connect the breakout box and check the ground connections before starting to measure.

Connector A

Connector B
