Signal Description, Engine Control Module (ECM)

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2011 Volvo.

AI Repair Guides





Signal specification

All values below are measured between the relevant terminal in column 2 and #Axx (#Axx on the breakout box) unless otherwise stated in parenthesis after the table entry.

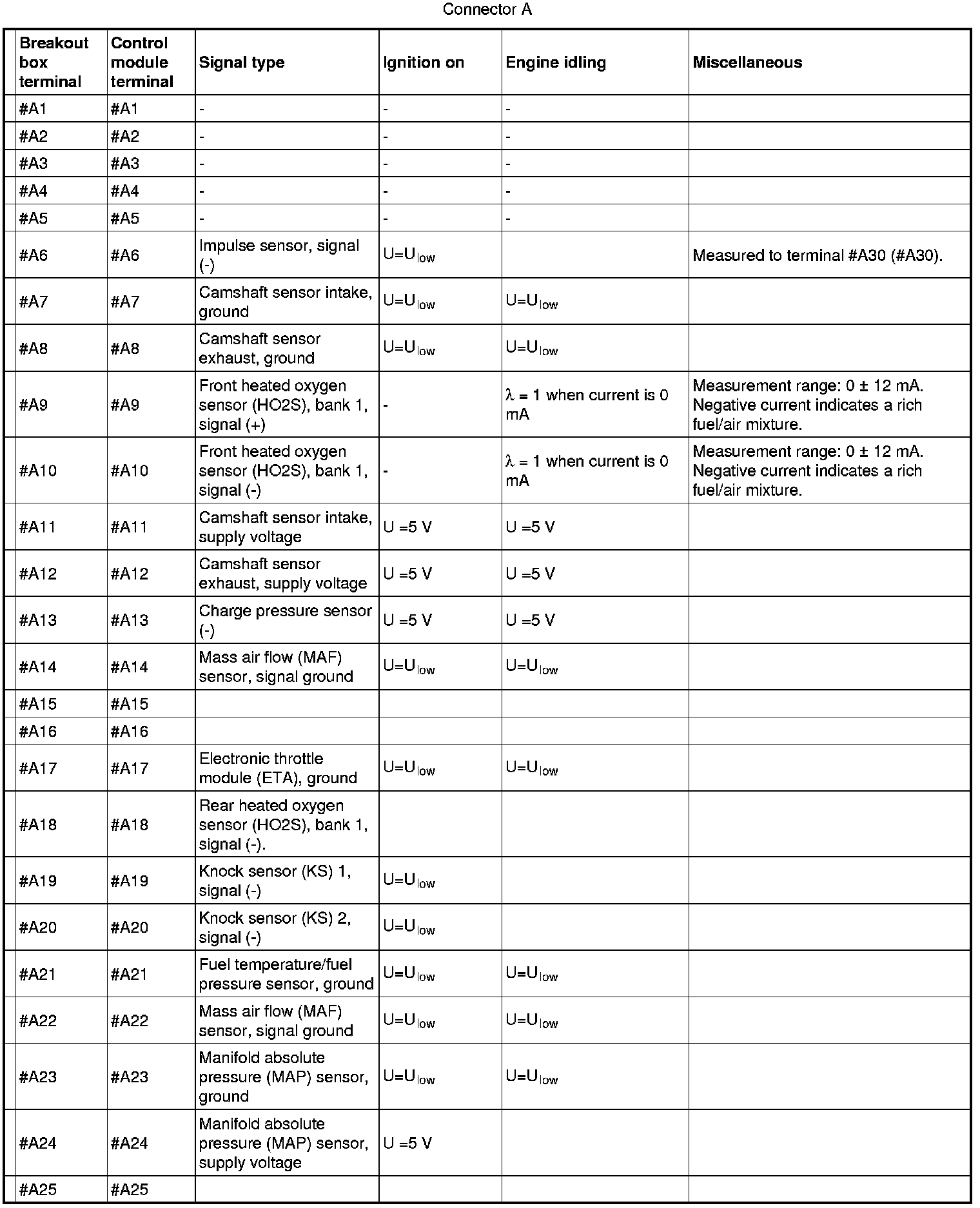

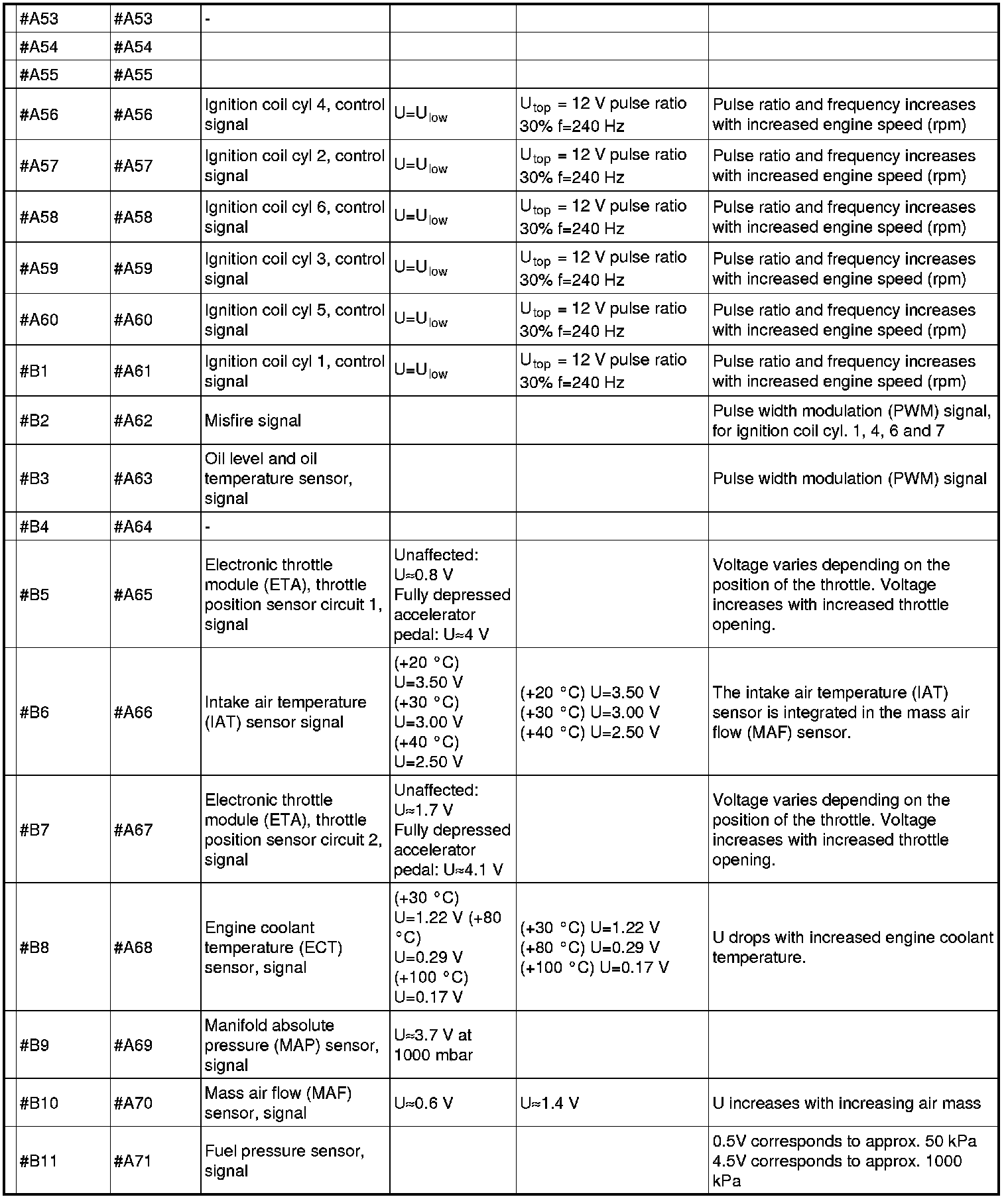

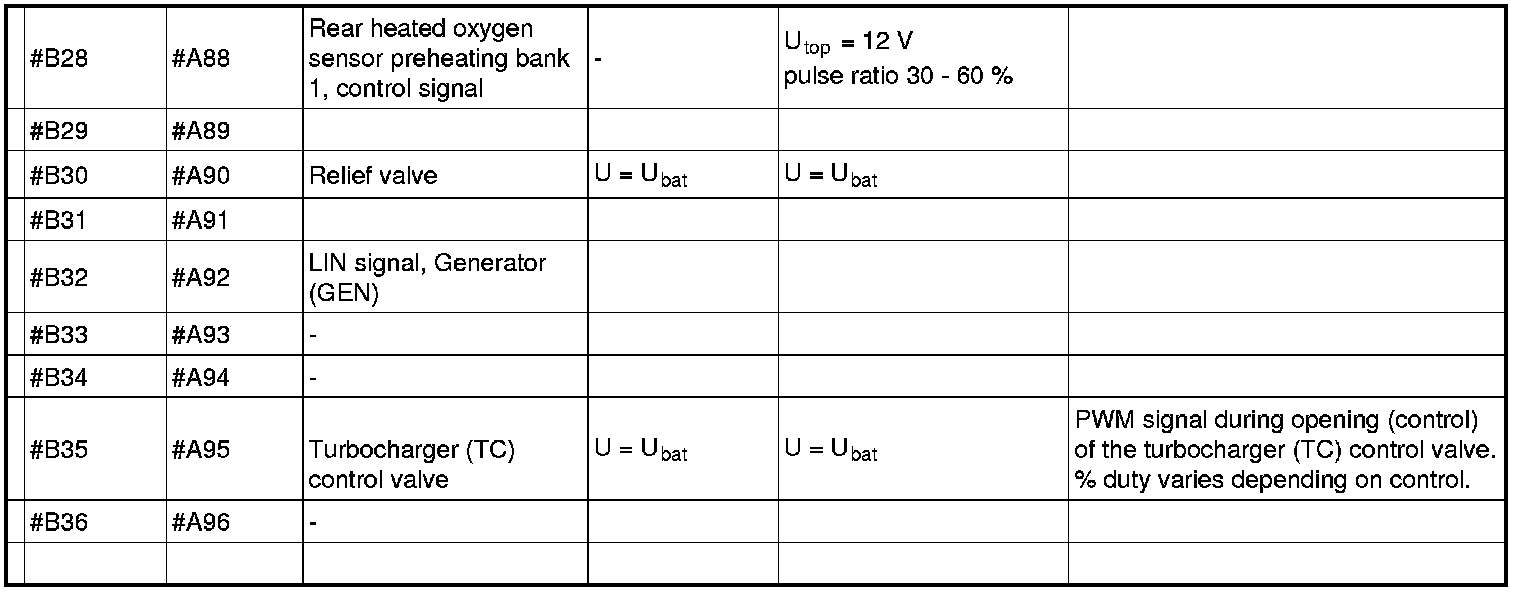

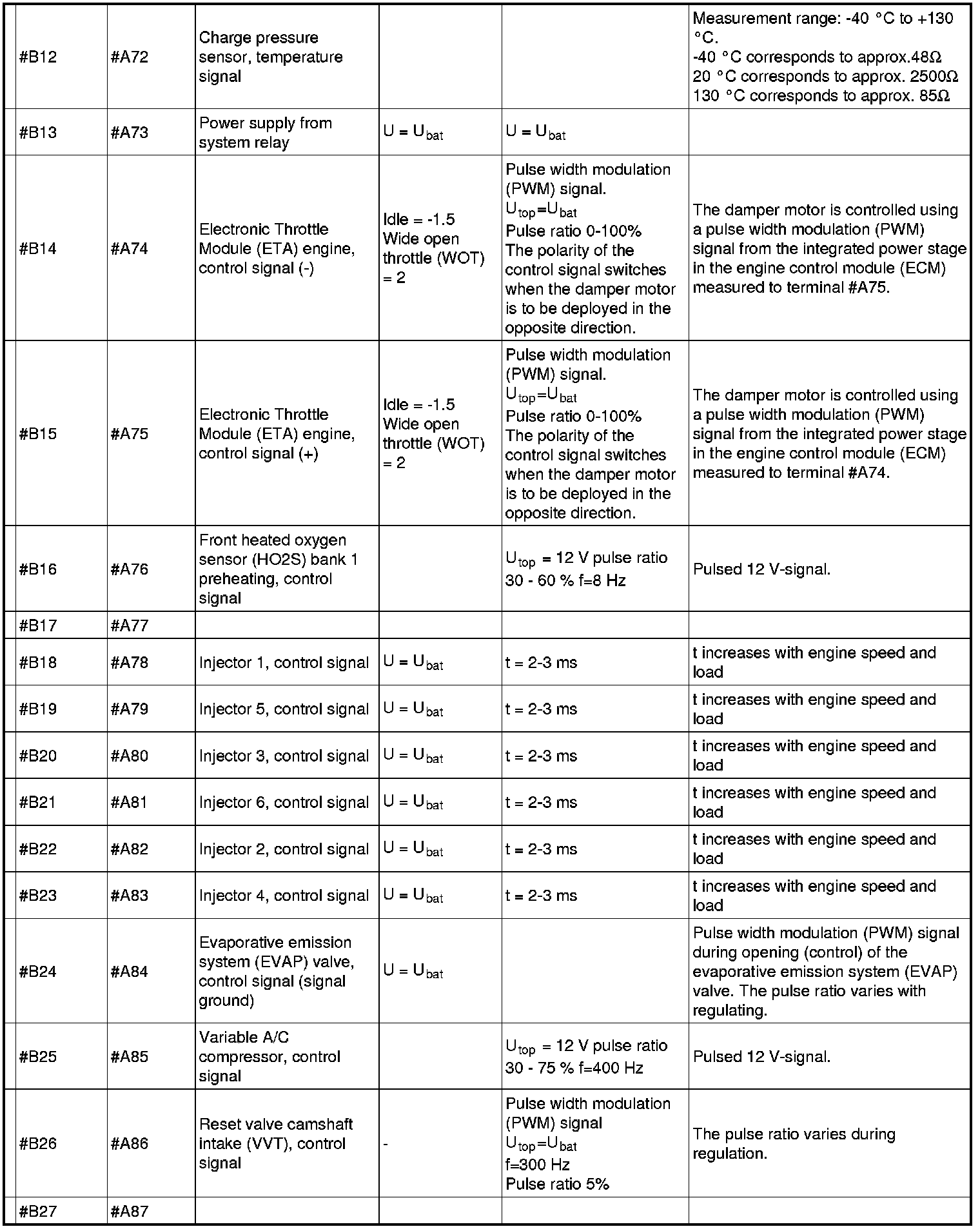

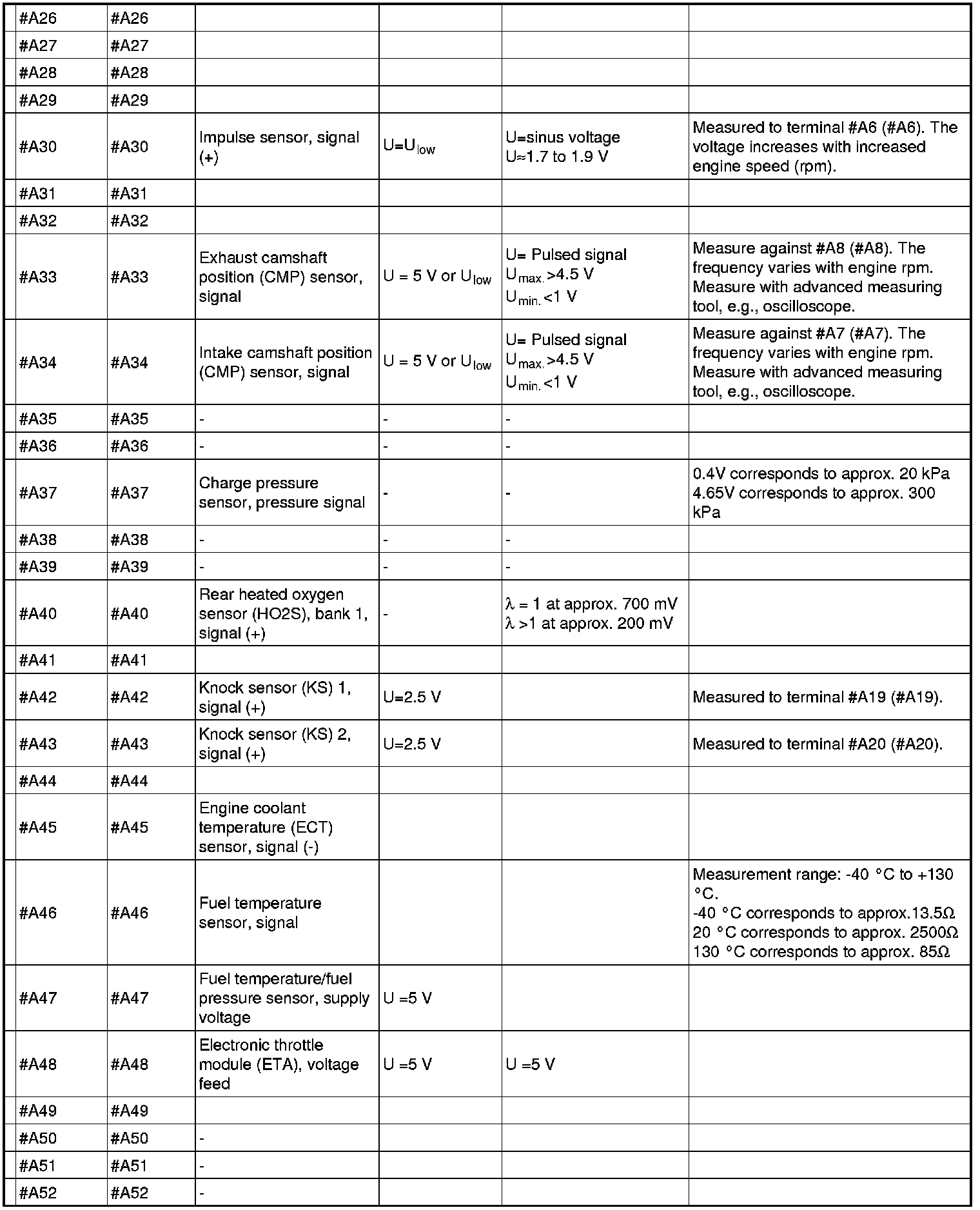

Connector A (96-pin) corresponds to terminals #A1 - #B36 on the breakout box.

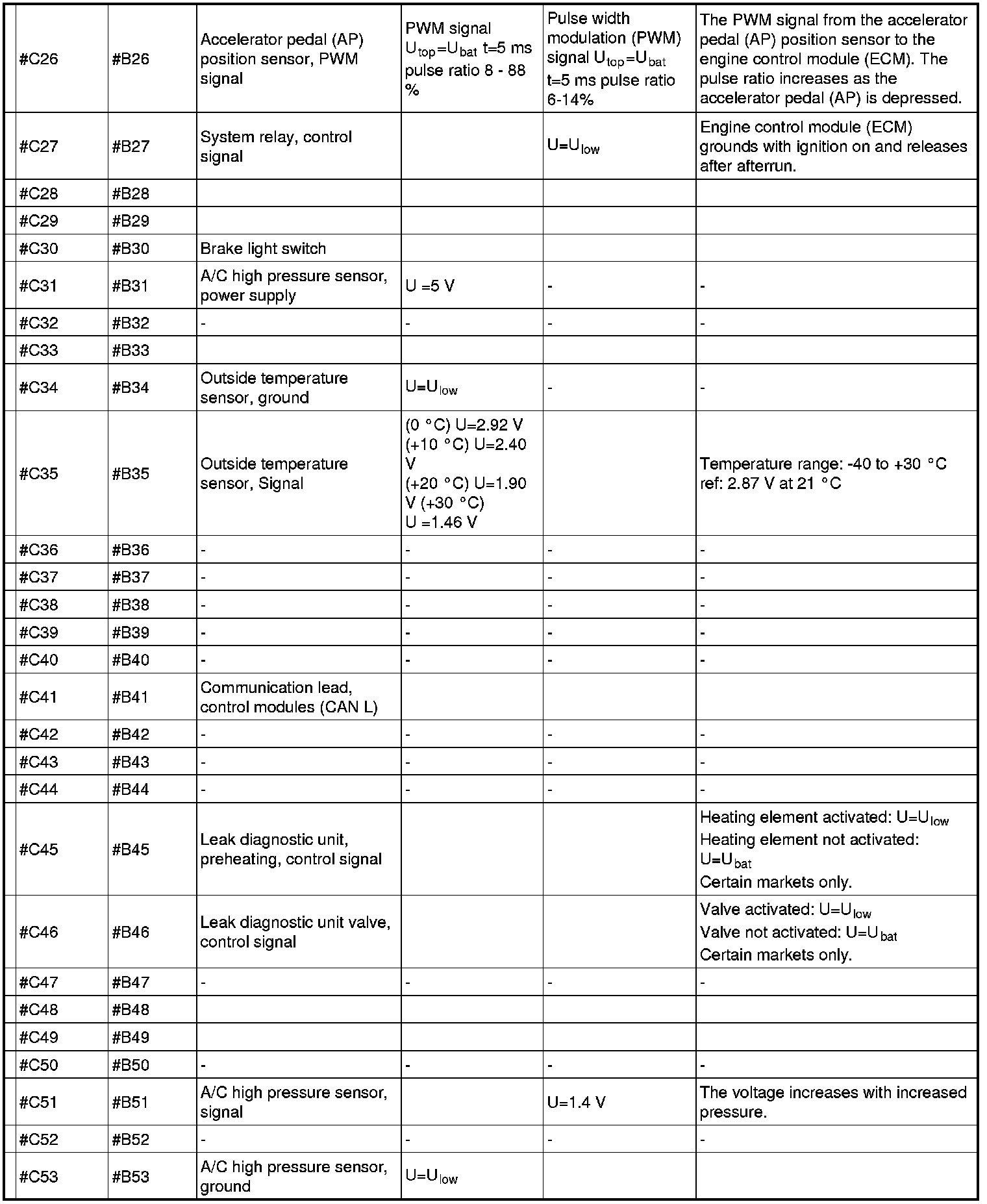

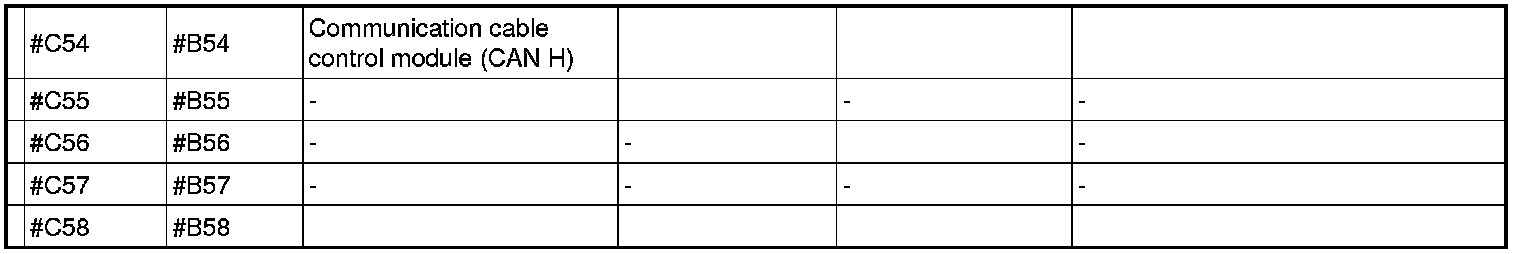

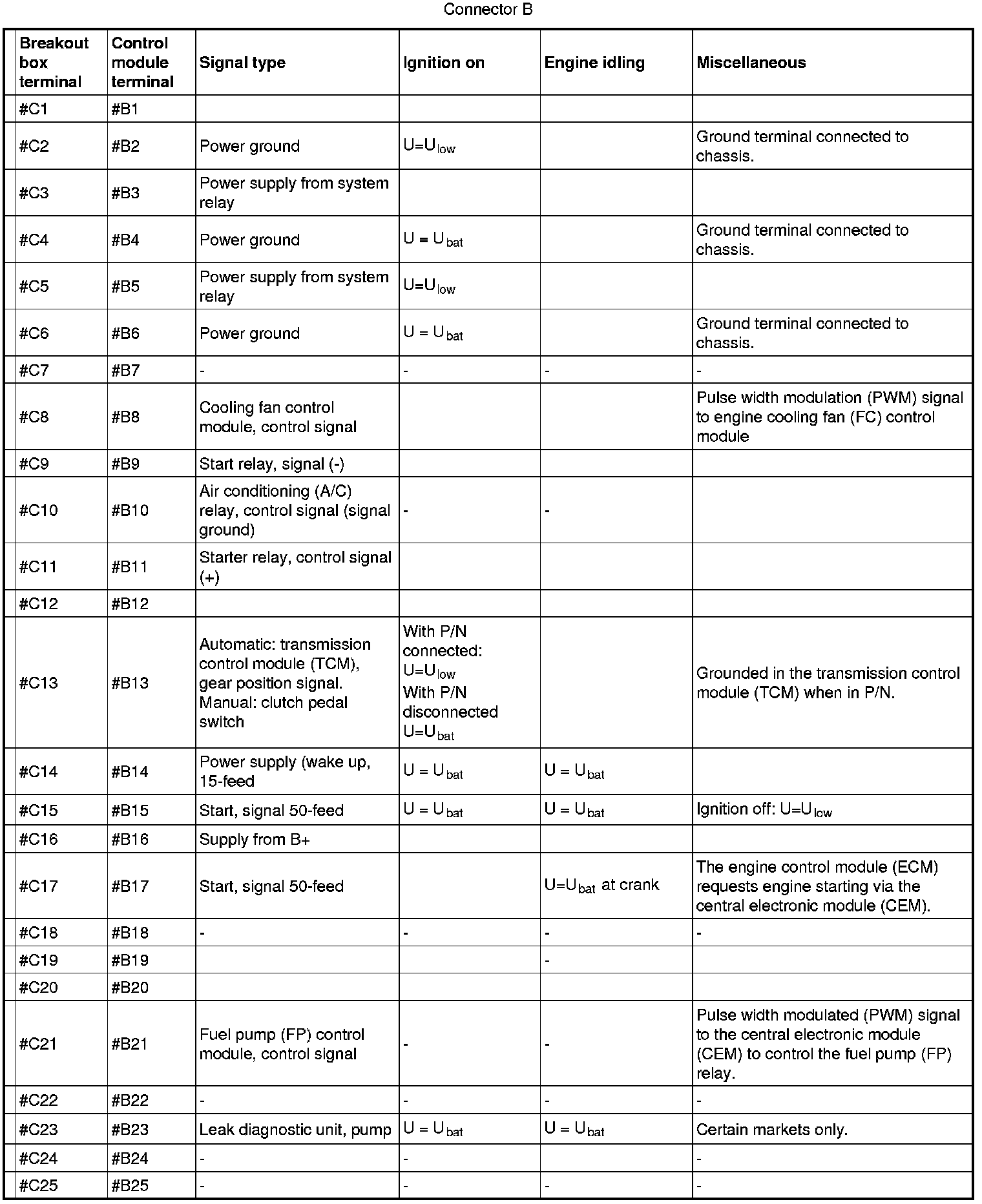

Connector B (58-pin engine side) corresponds to terminals #C1 - #58 on the breakout box.

Note! Connect the breakout box and check the ground connections before starting to measure.
