Signal specification
General

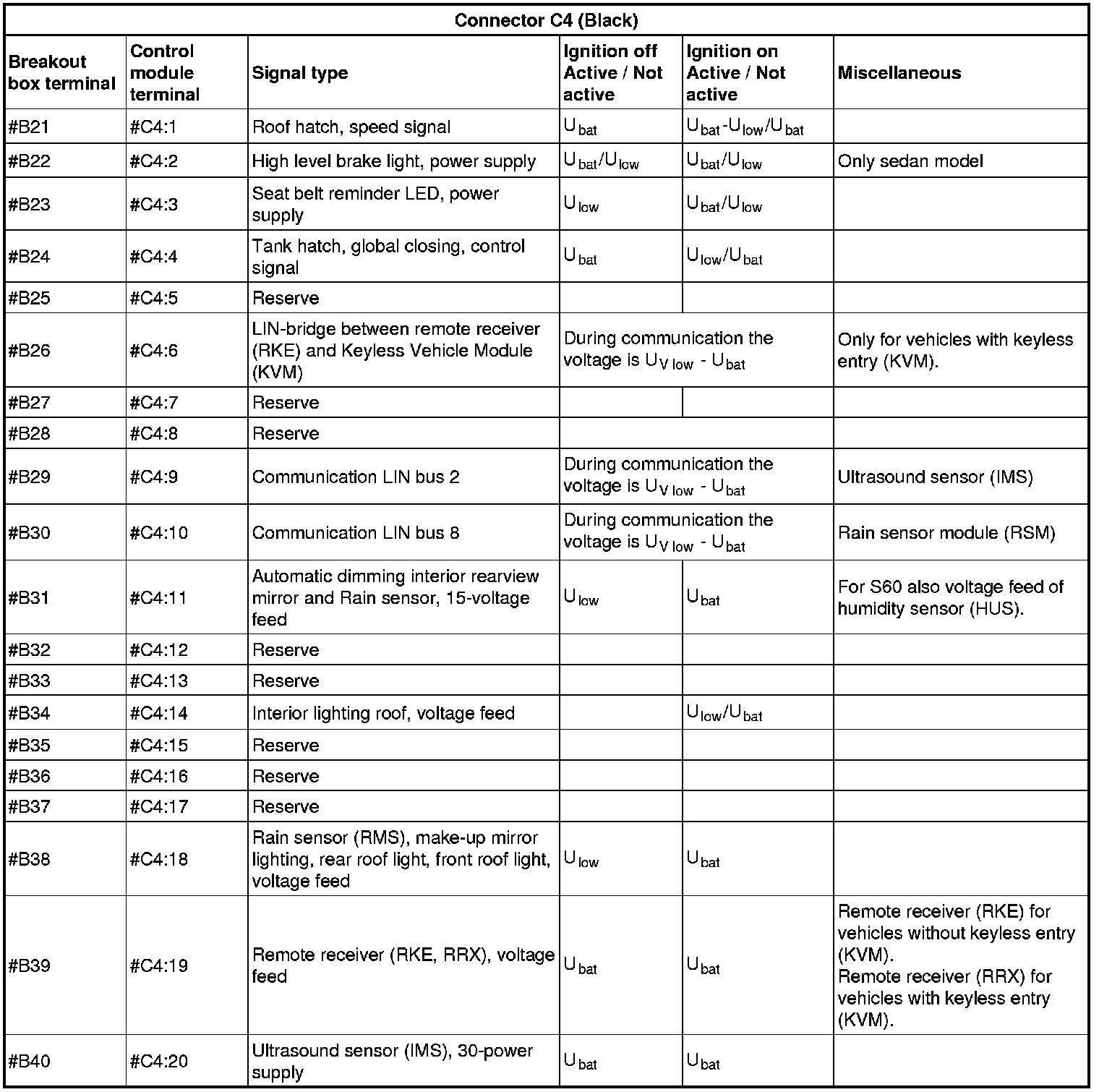

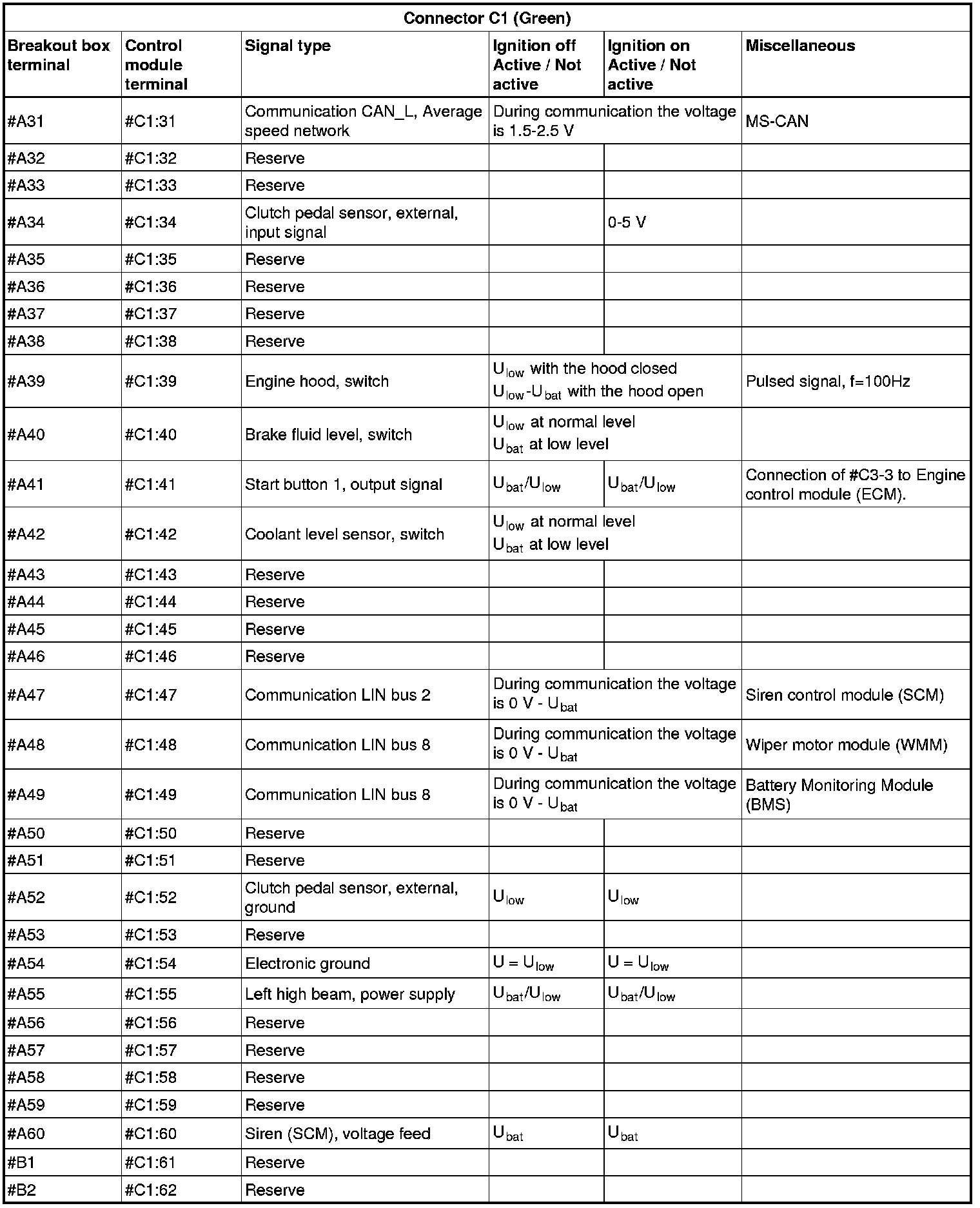

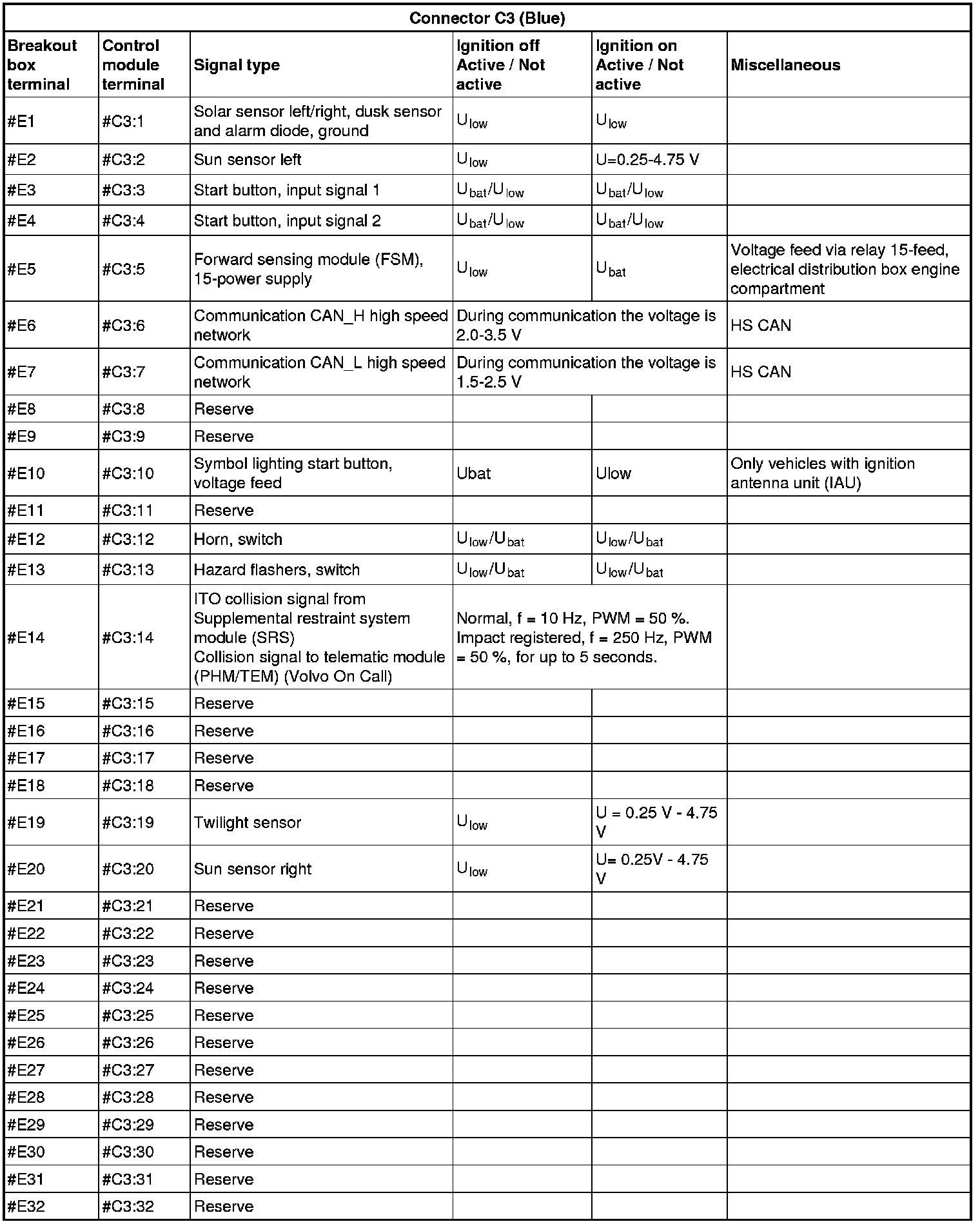

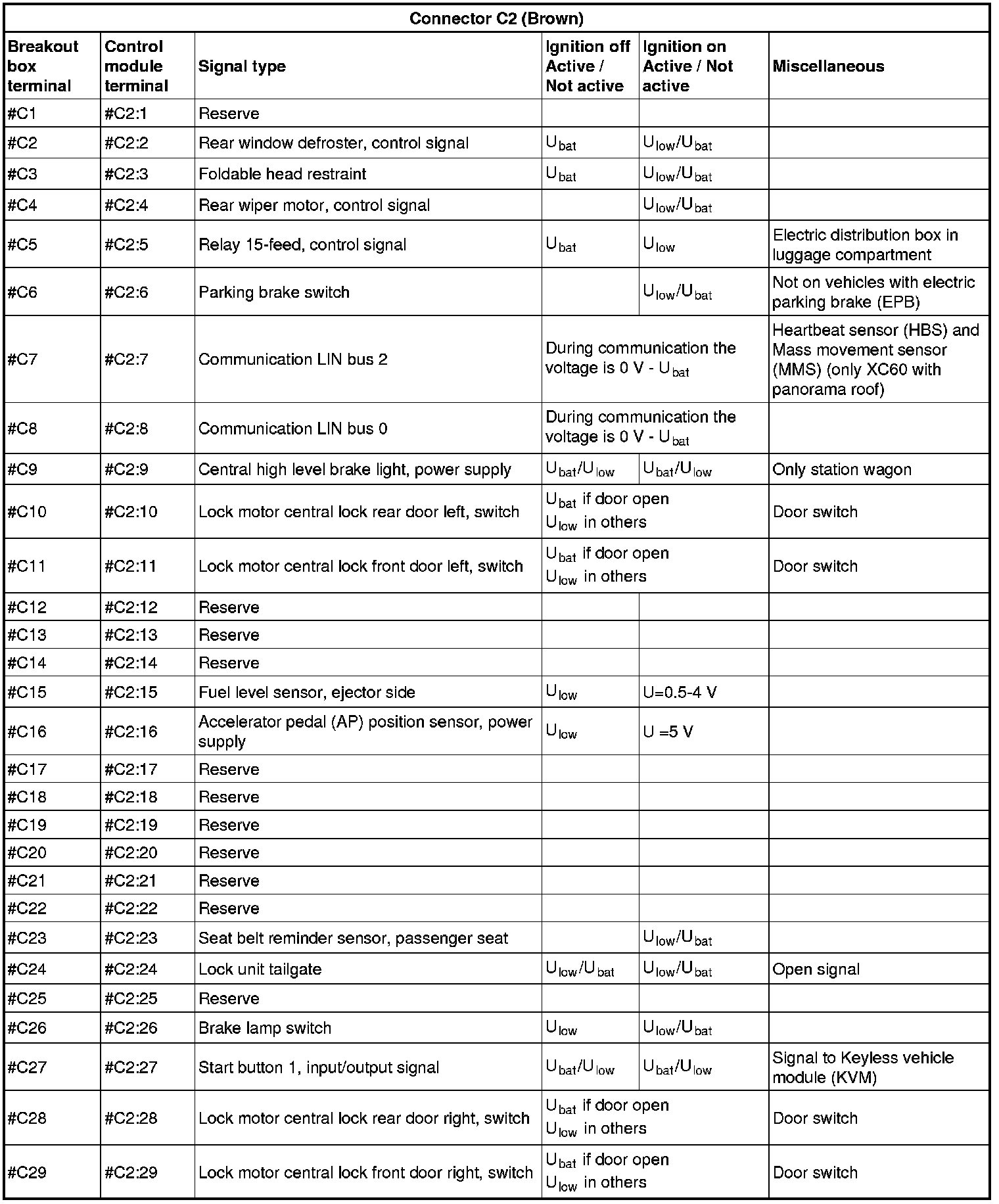

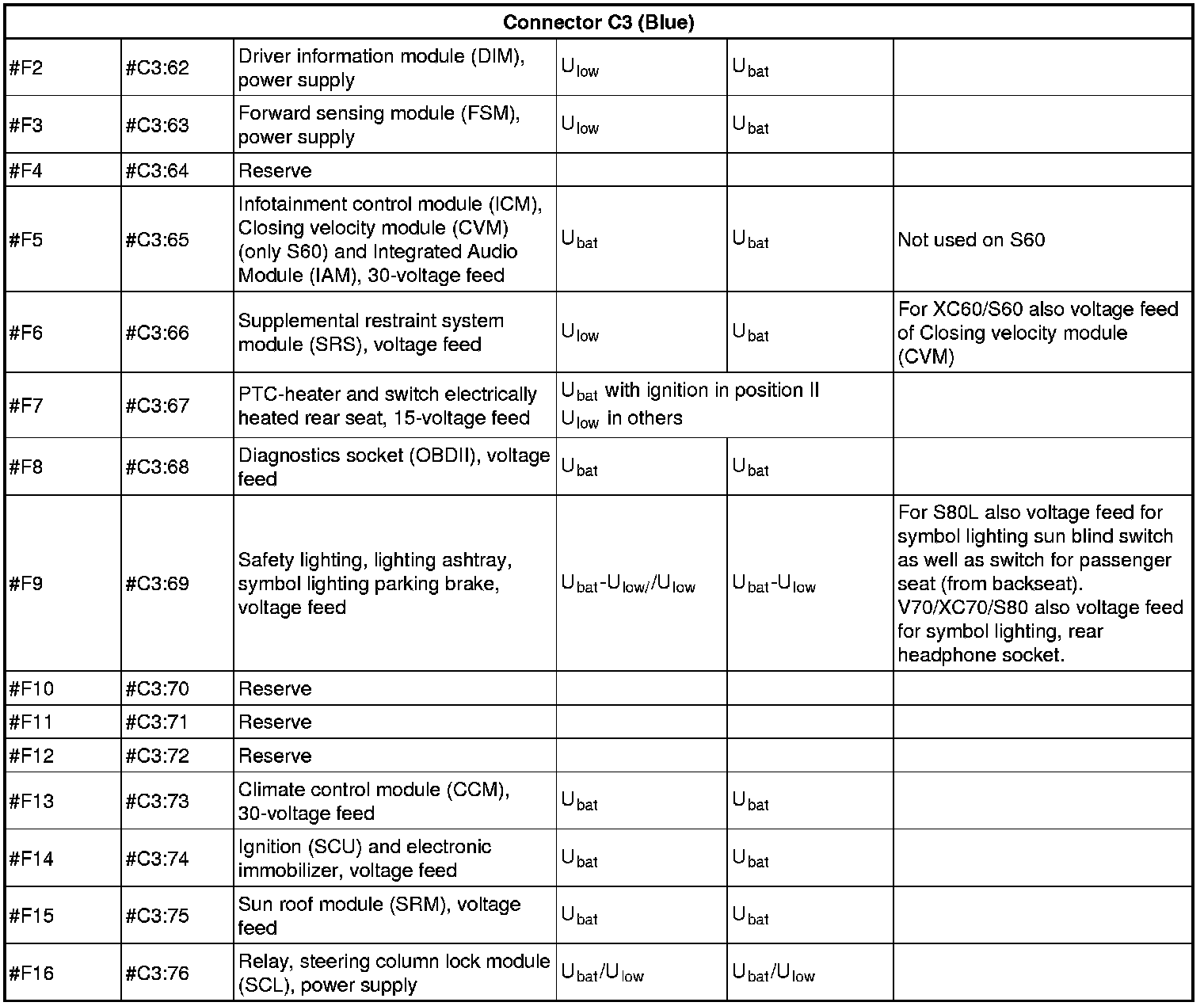

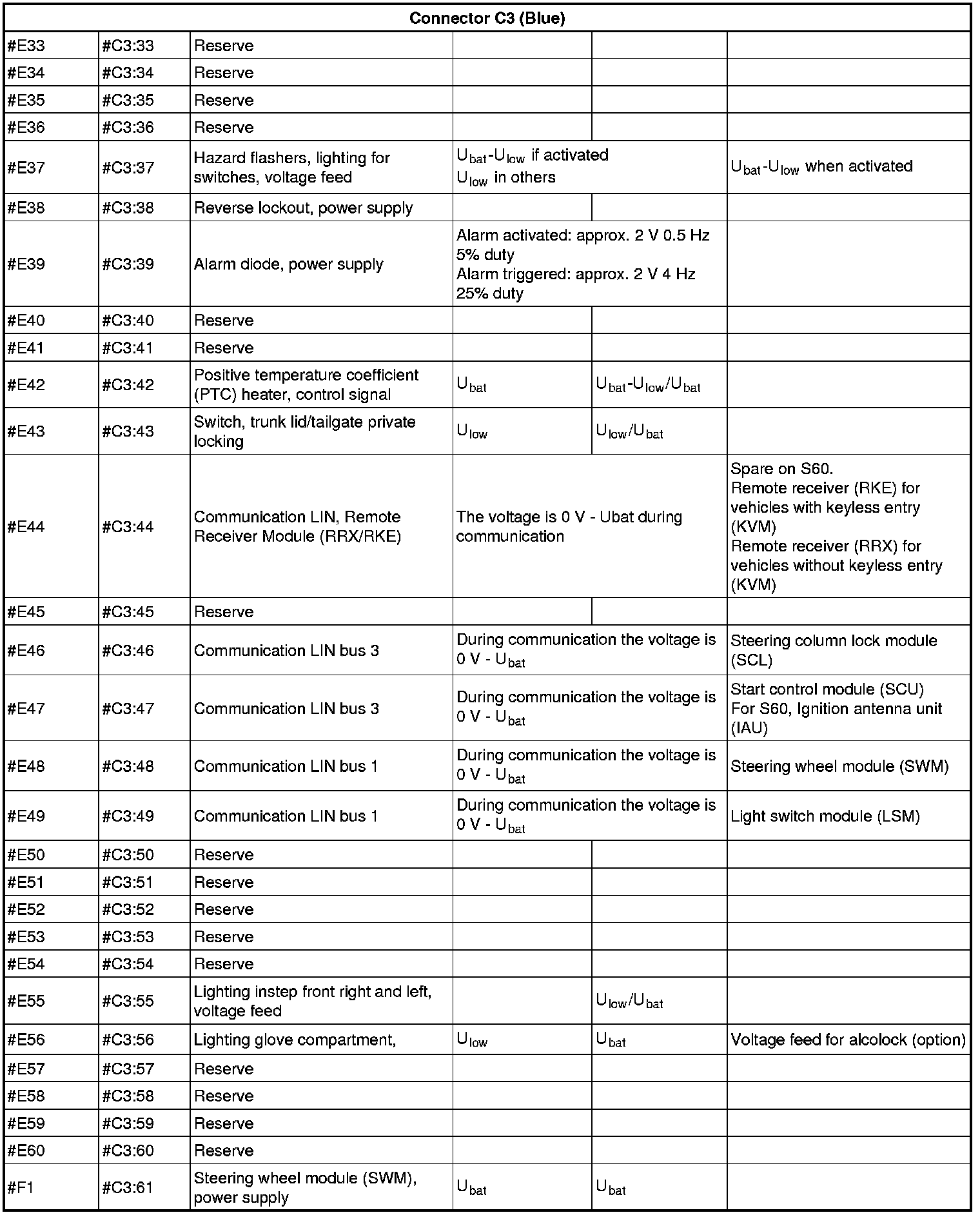

All values given below are between the terminals stated in column 1 and terminal #D5 (power ground). This applies unless otherwise indicated in the last column.
Note! It is important to connect the breakout box and check the ground connections before starting to measure.
