Signal Specification, Steering Wheel Angle Sensor Module (SAS)

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2010 Volvo.

AI Repair Guides

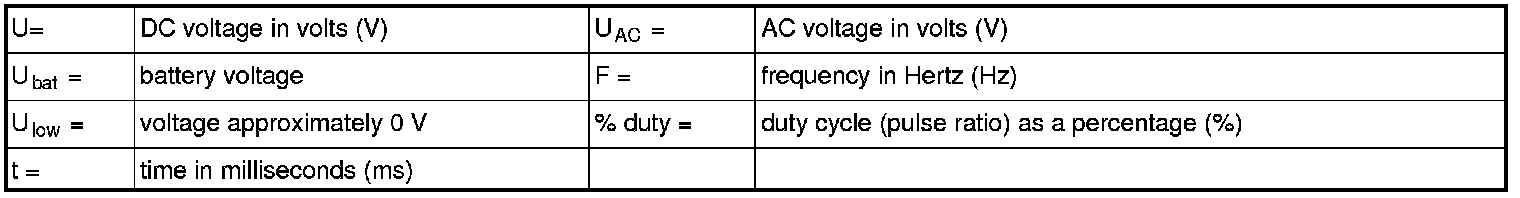

Signal specification

Signal specification

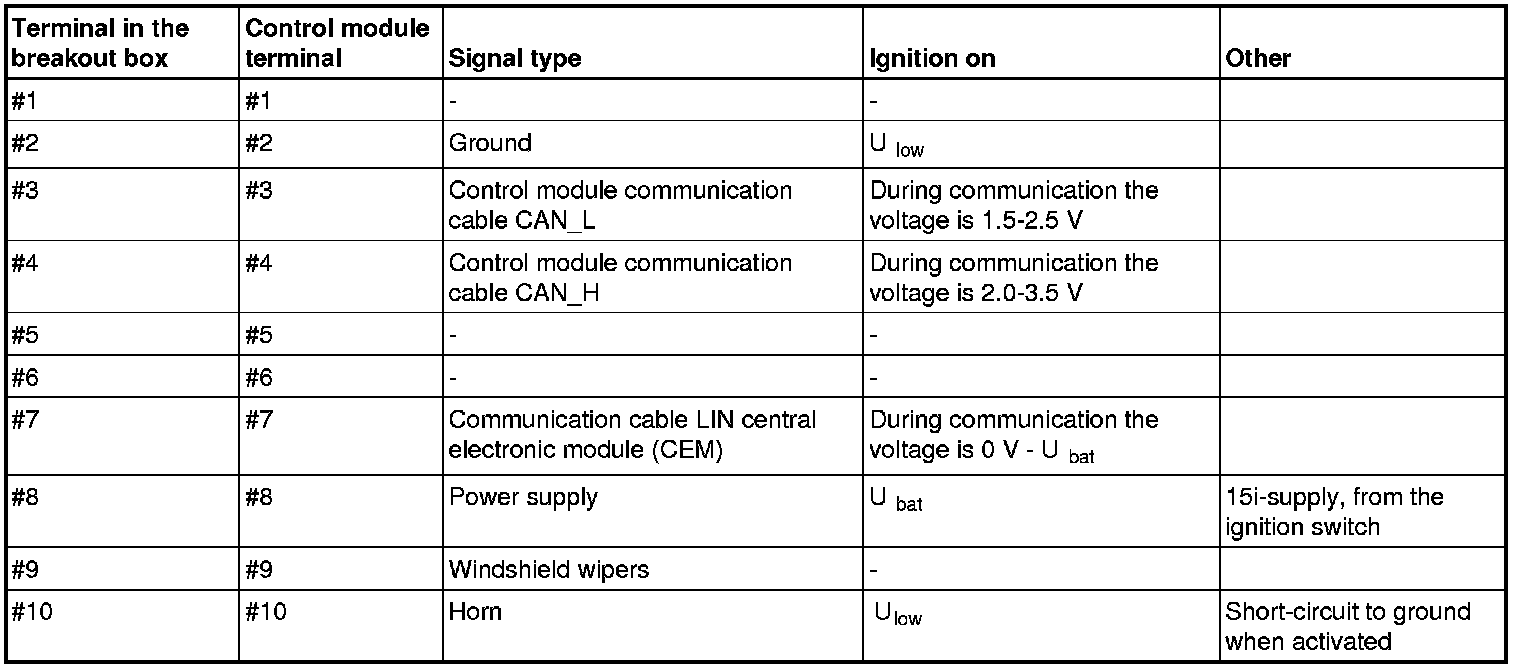

Connector A




All the values given below are between the relevant terminal stated in column 1 and terminal #A2 (ground). This applies unless otherwise indicated in brackets.

Note! It is important to connect the breakout box and check ground terminals before reading off.
