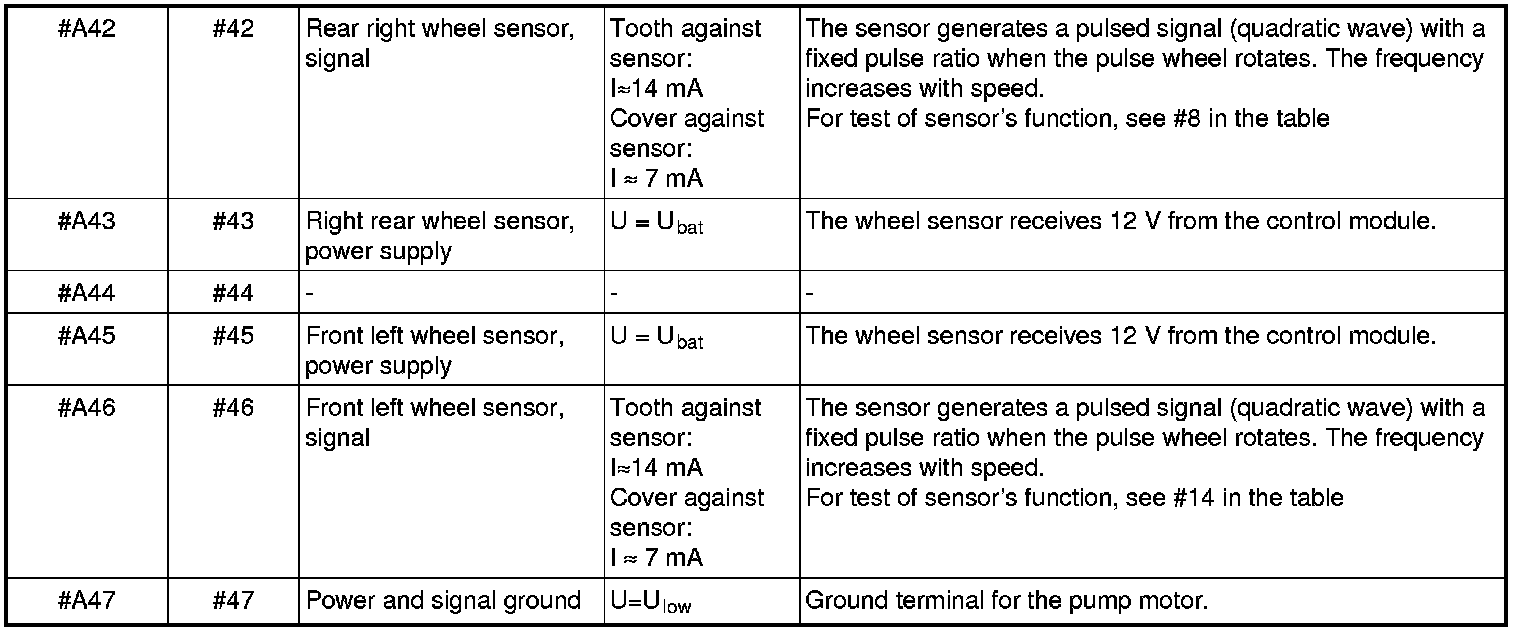

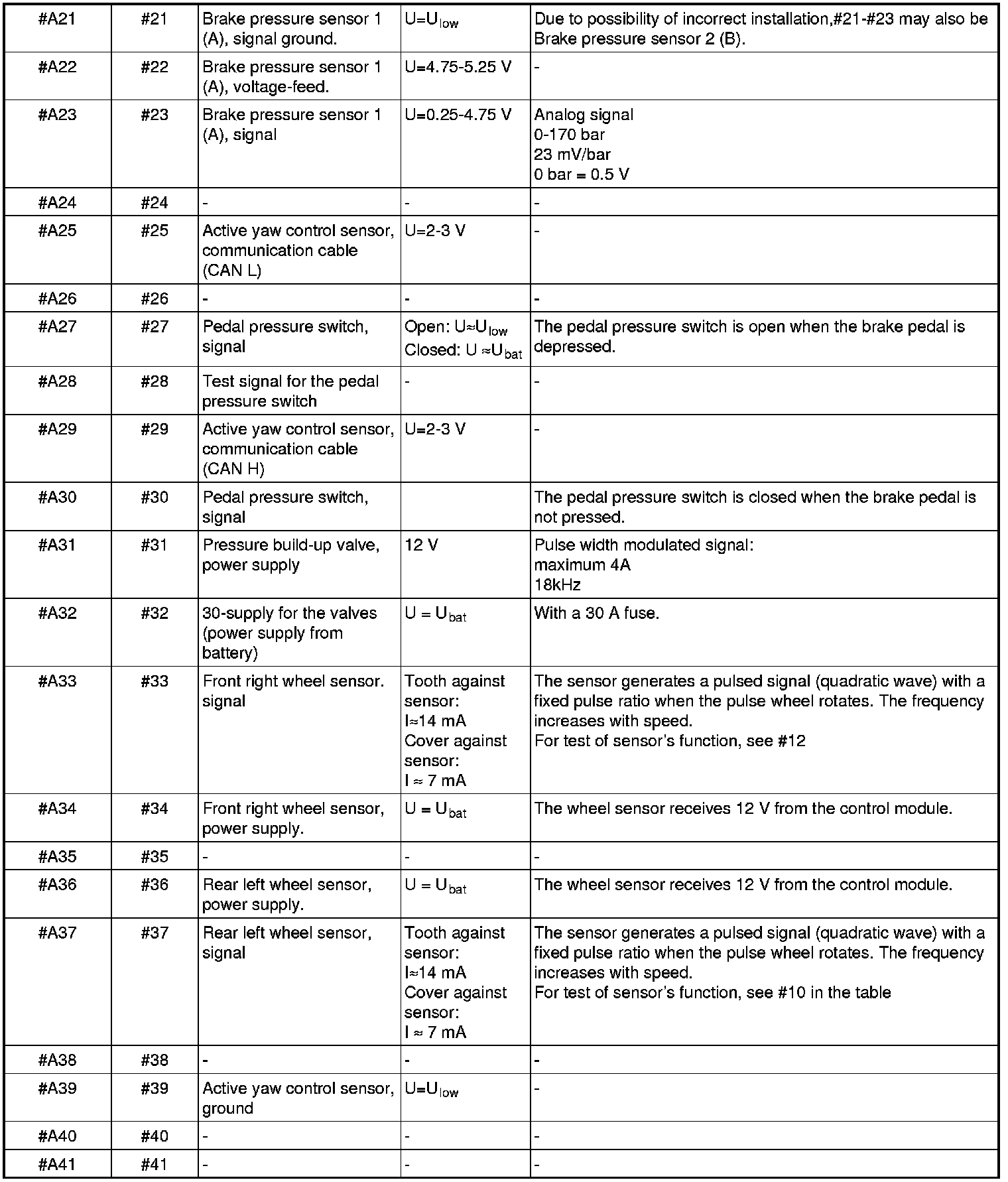

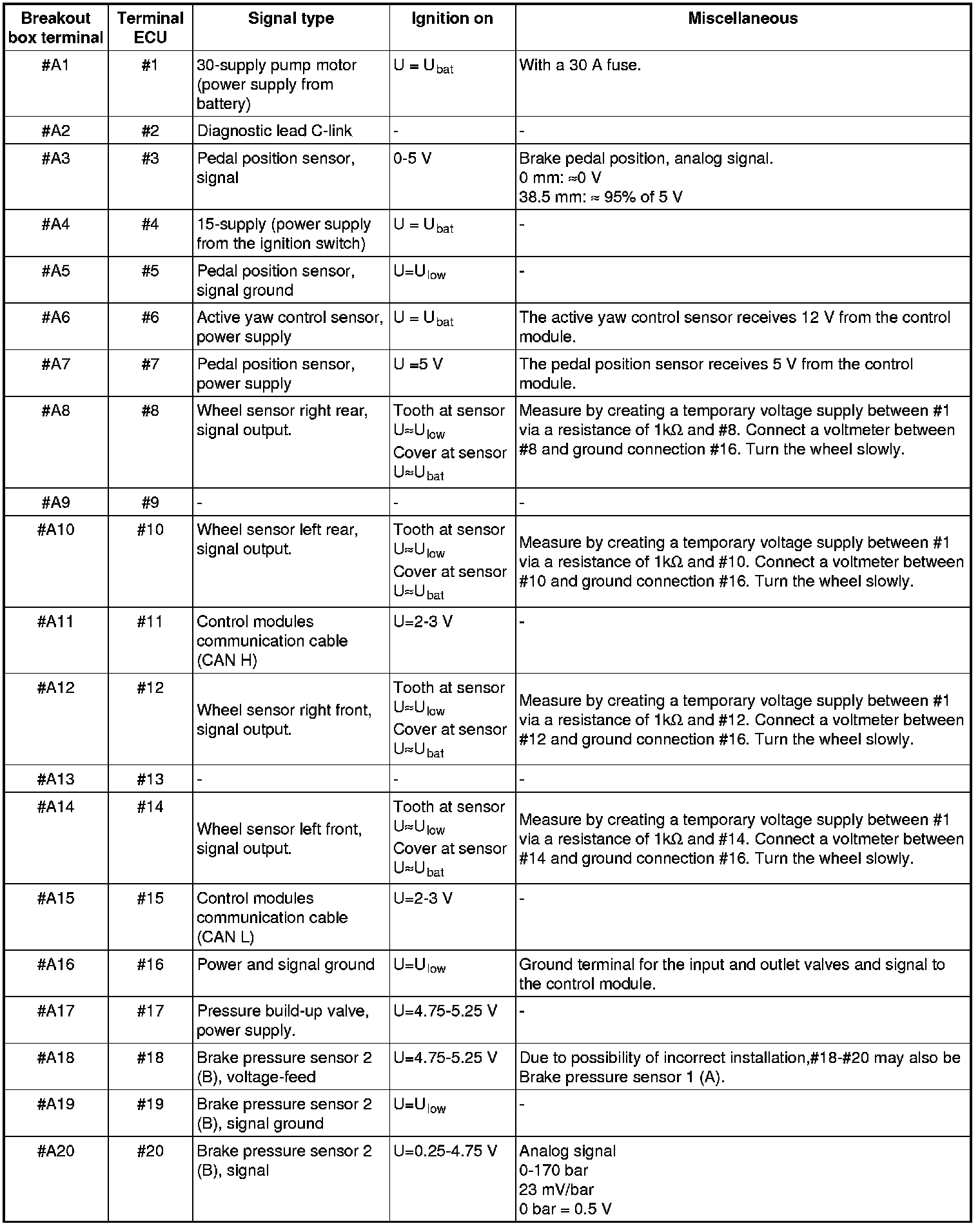

Signal specification, brake control module (BCM) with DSTC (dynamic stability and traction control)

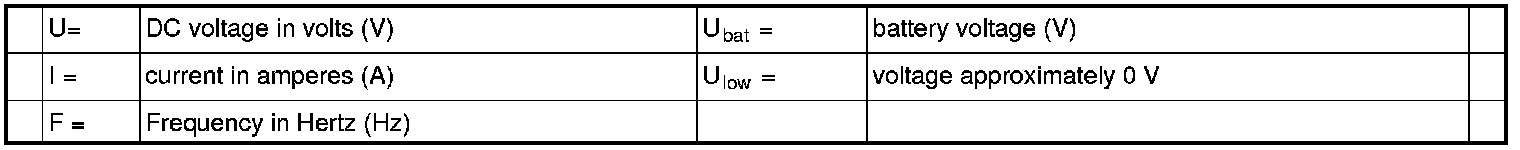

All values given are between the relevant terminal in column 1 and terminal #A16 or #A47 (ground), unless otherwise indicated in brackets.
Connections 9, 13, 24, 26, 35, 38, 40-41 and 44 are not used.
Note! It is important that the breakout box is connected and that the ground connections have been checked before starting to measure.
