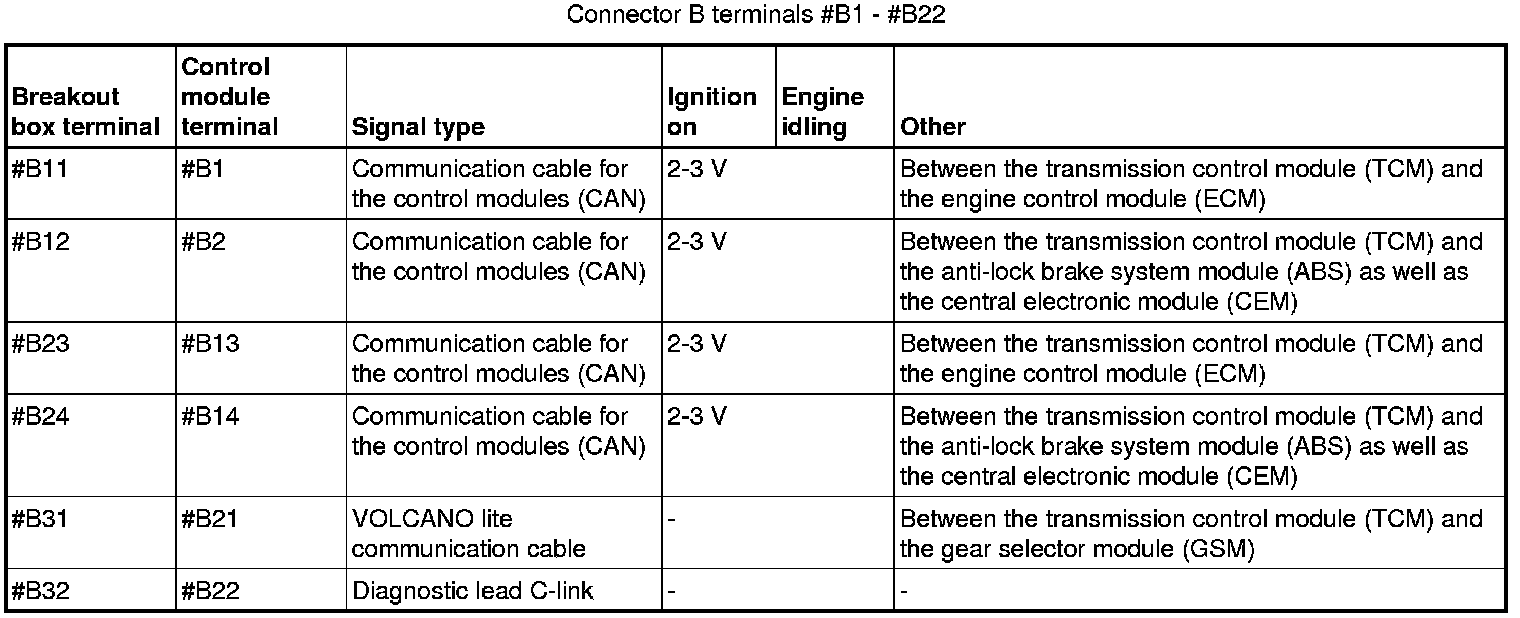

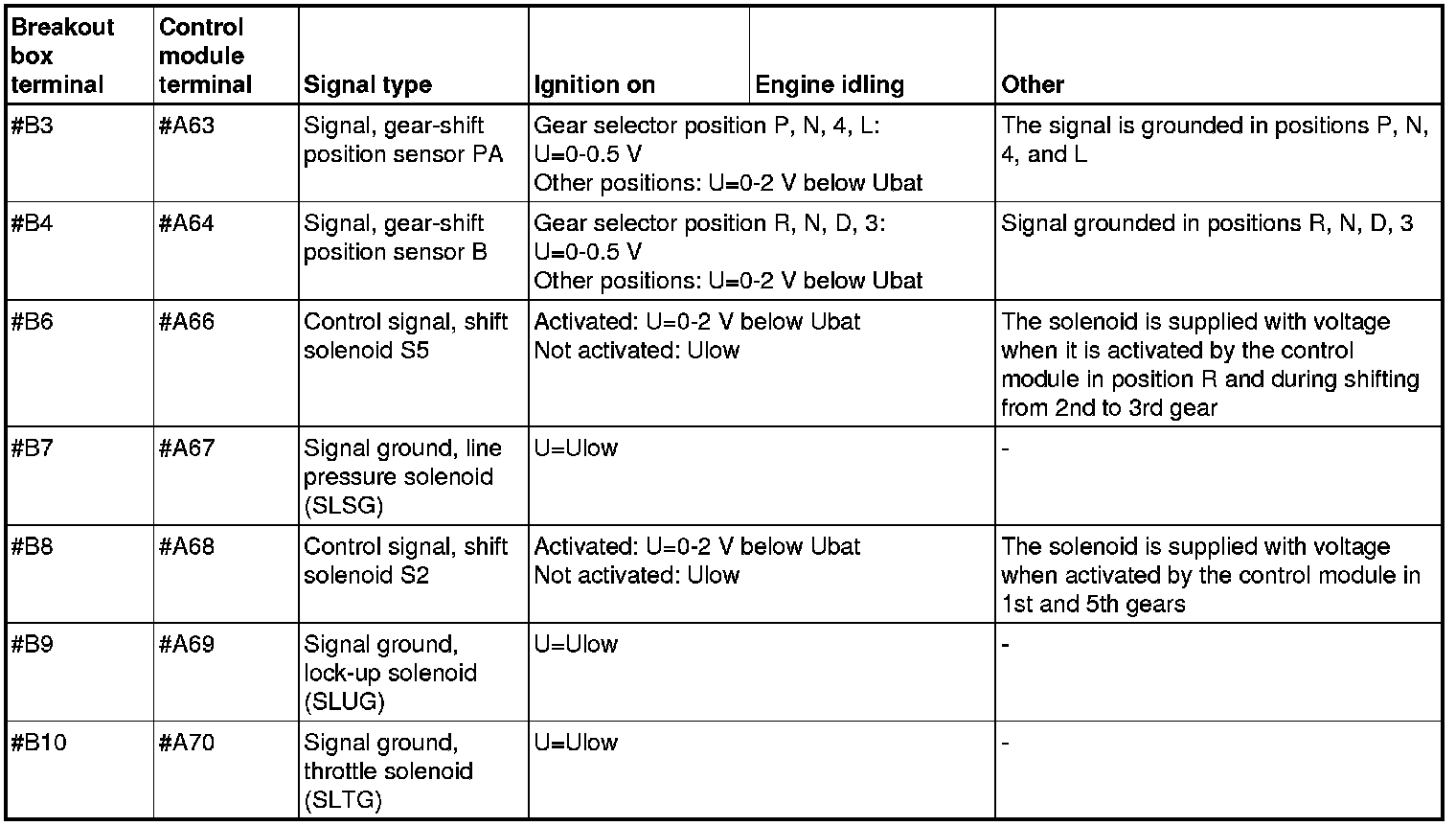

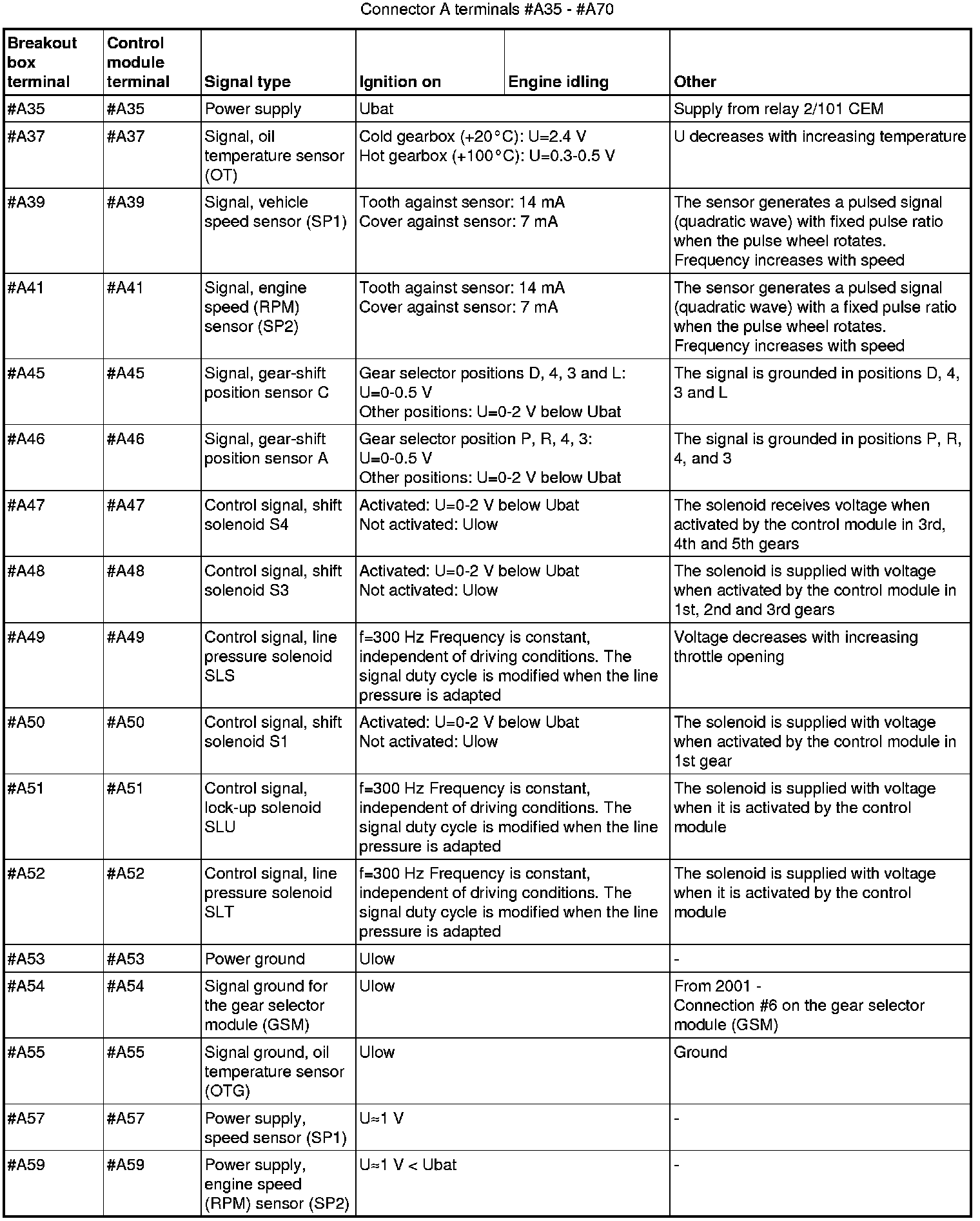

Signal description. Transmission control module (TCM)
All the values listed below are between the terminal in column 1 and terminal #A53 (signal ground), unless otherwise indicated in brackets.
Note! Connect the breakout box and check the ground terminals before taking readings.
