NOTE: This article contains changes called out by Service Bulletin SB60-5500-0506

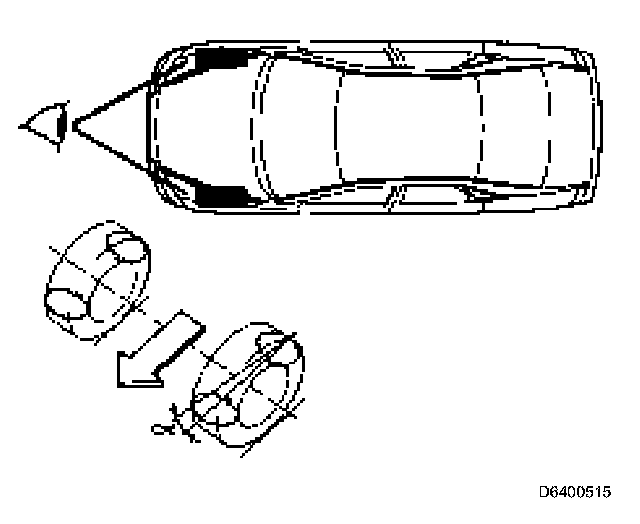

Adjusting toe angle, a
Adjusting to positive values generates toe-in angle while adjusting to negative values generates toe-out angle.

Note! All published toe values are for total toe measurement (left and right wheels together).

S60 / V70(01-) / V70XC(01-) / XC70 / S80(-06) / XC90

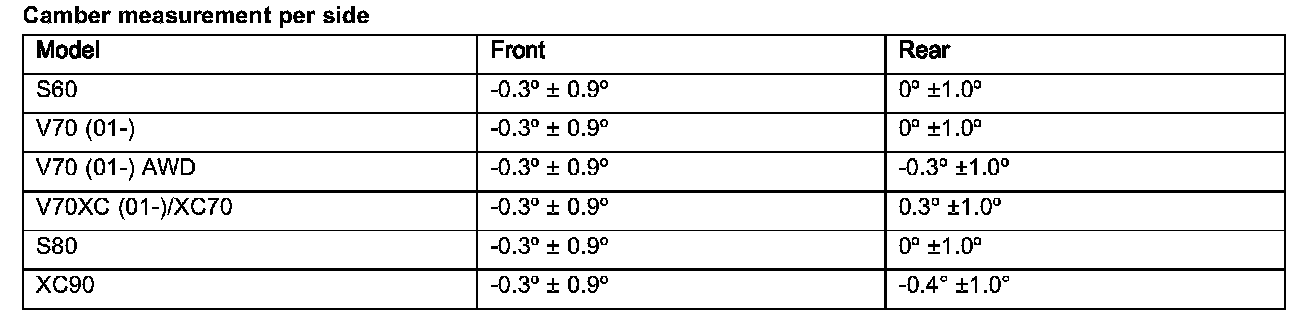

Camber Adjustment Per Side:

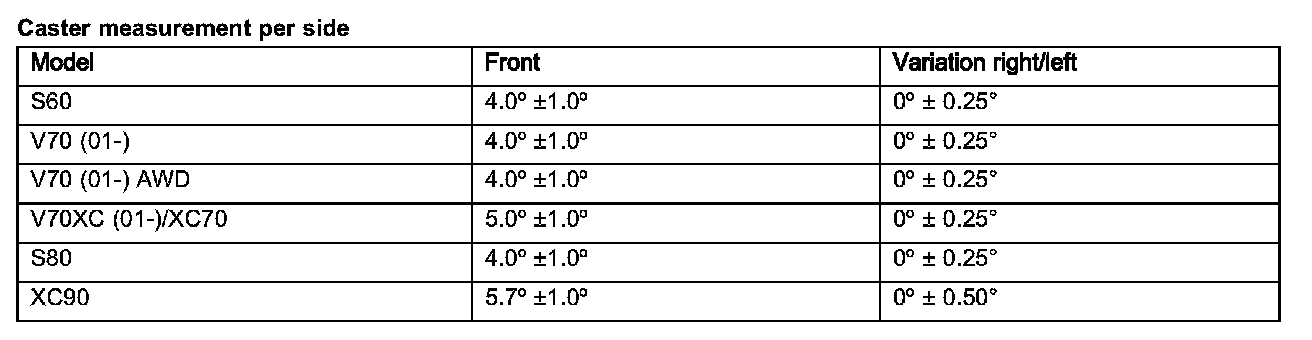

Caster Adjustment Per Side:

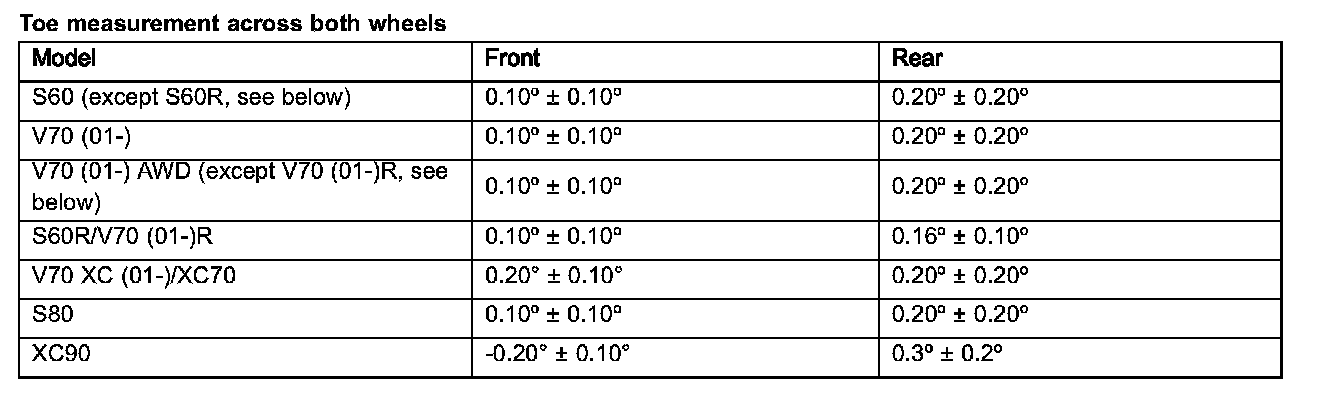

Toe Measurement Across Both Wheels:
