Connector D, transmission

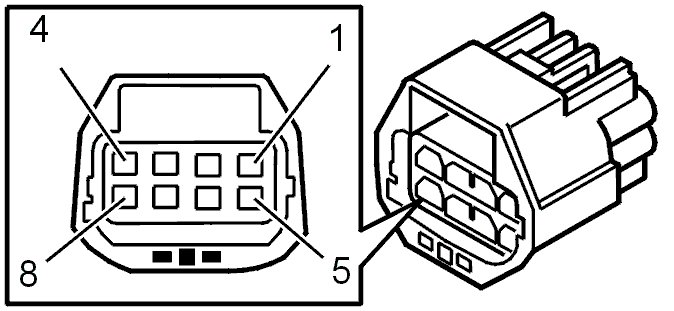

8-pin connector

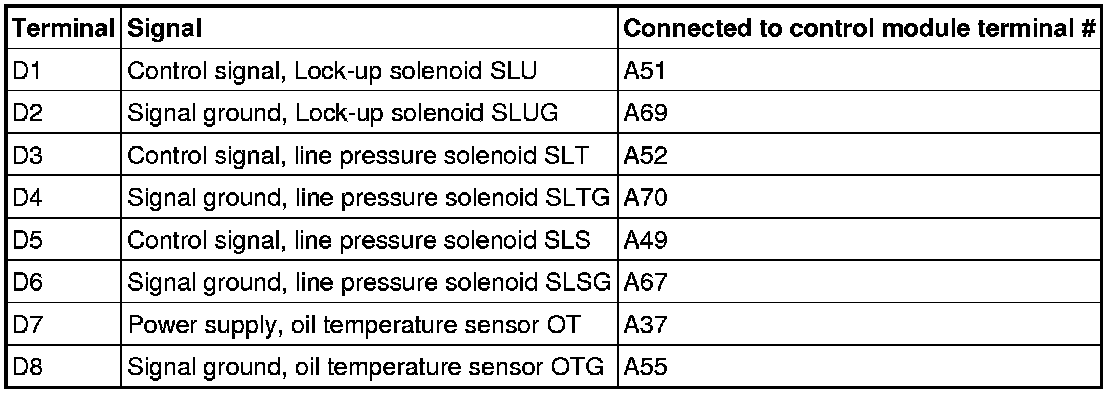

Control module terminals #A1-#A60 correspond to terminals #A1-#A60 on the breakout box, terminals #A61-#A70 correspond to terminals #B1-#B10 on the breakout box.
Connector D, Transmission
