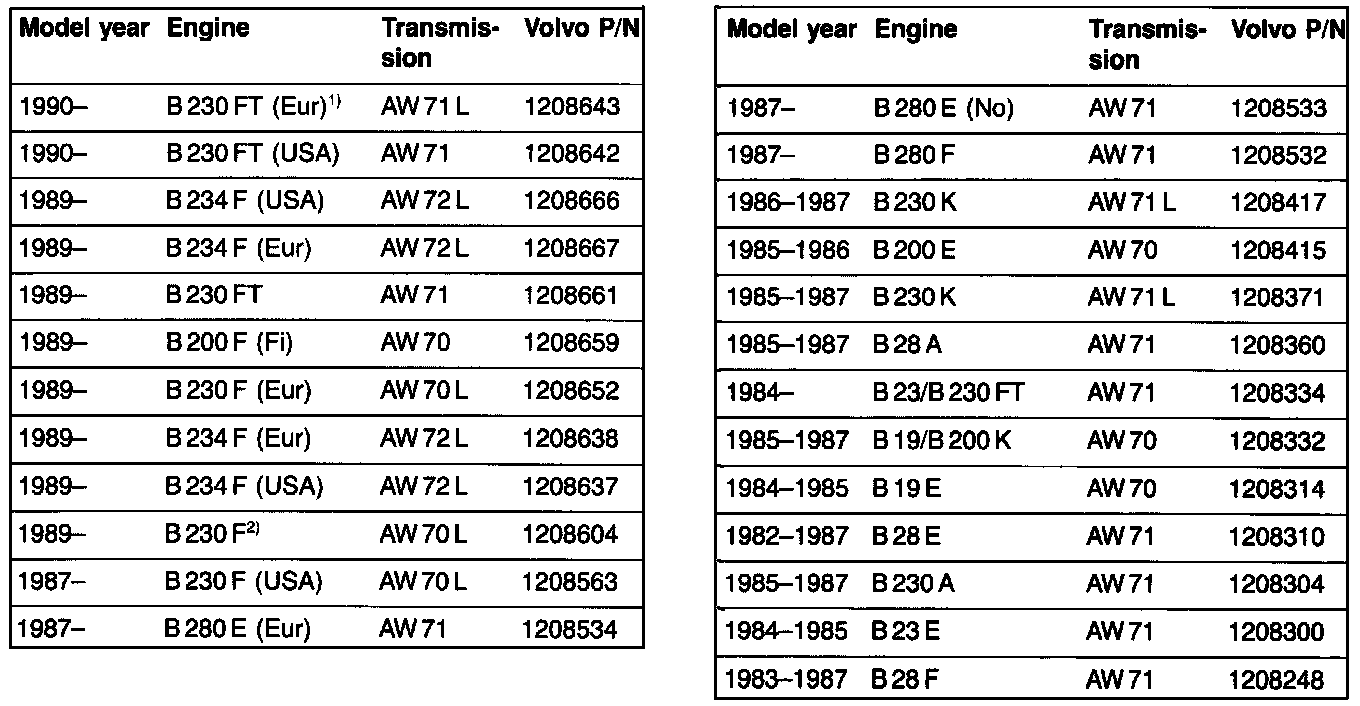

Transmission By Model Year And Engine Type:
1) New turbocharger unit from 1990 on
2) USA, Canada, Japan, Australia

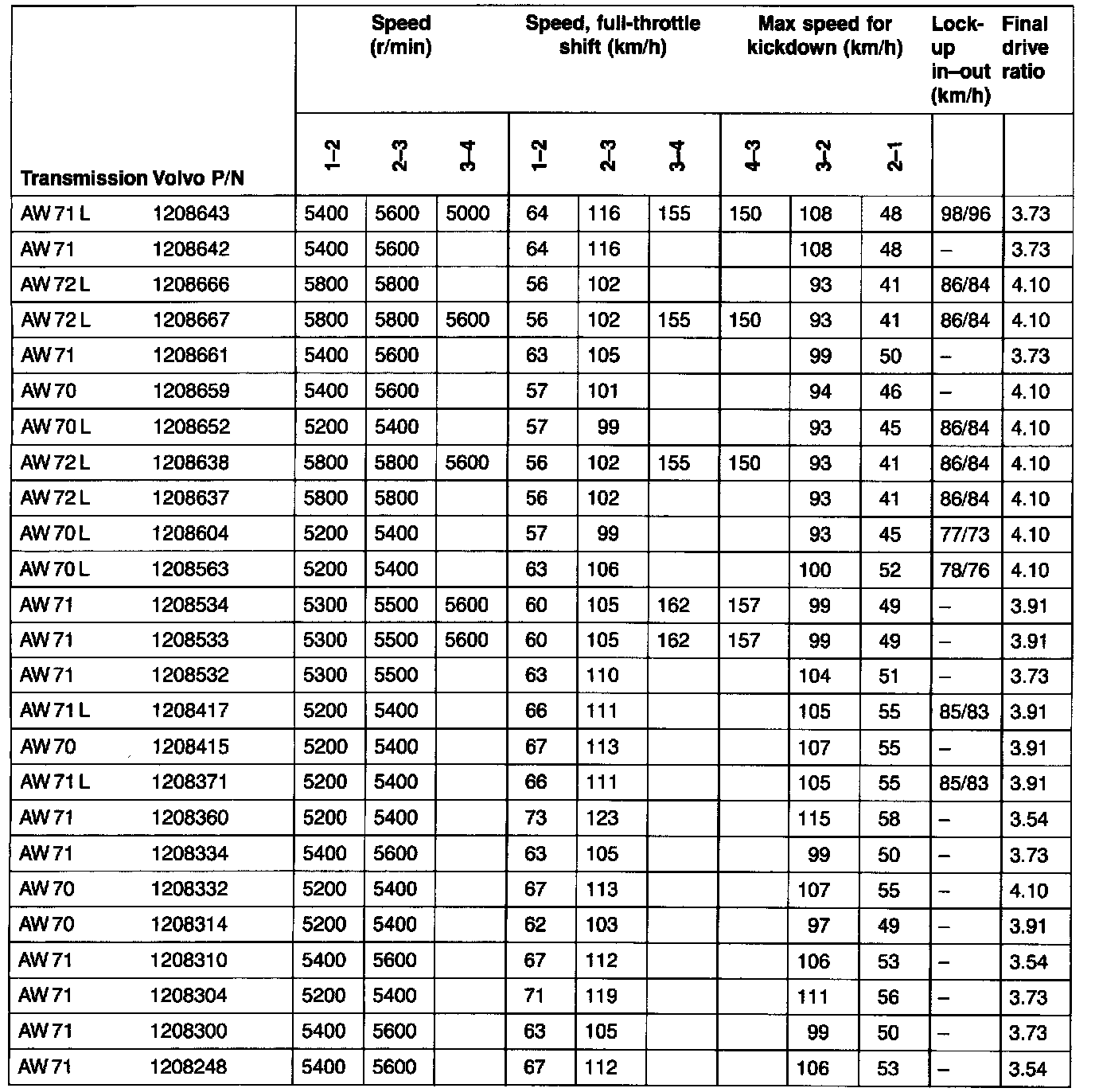

Shift Conditions At kickdown

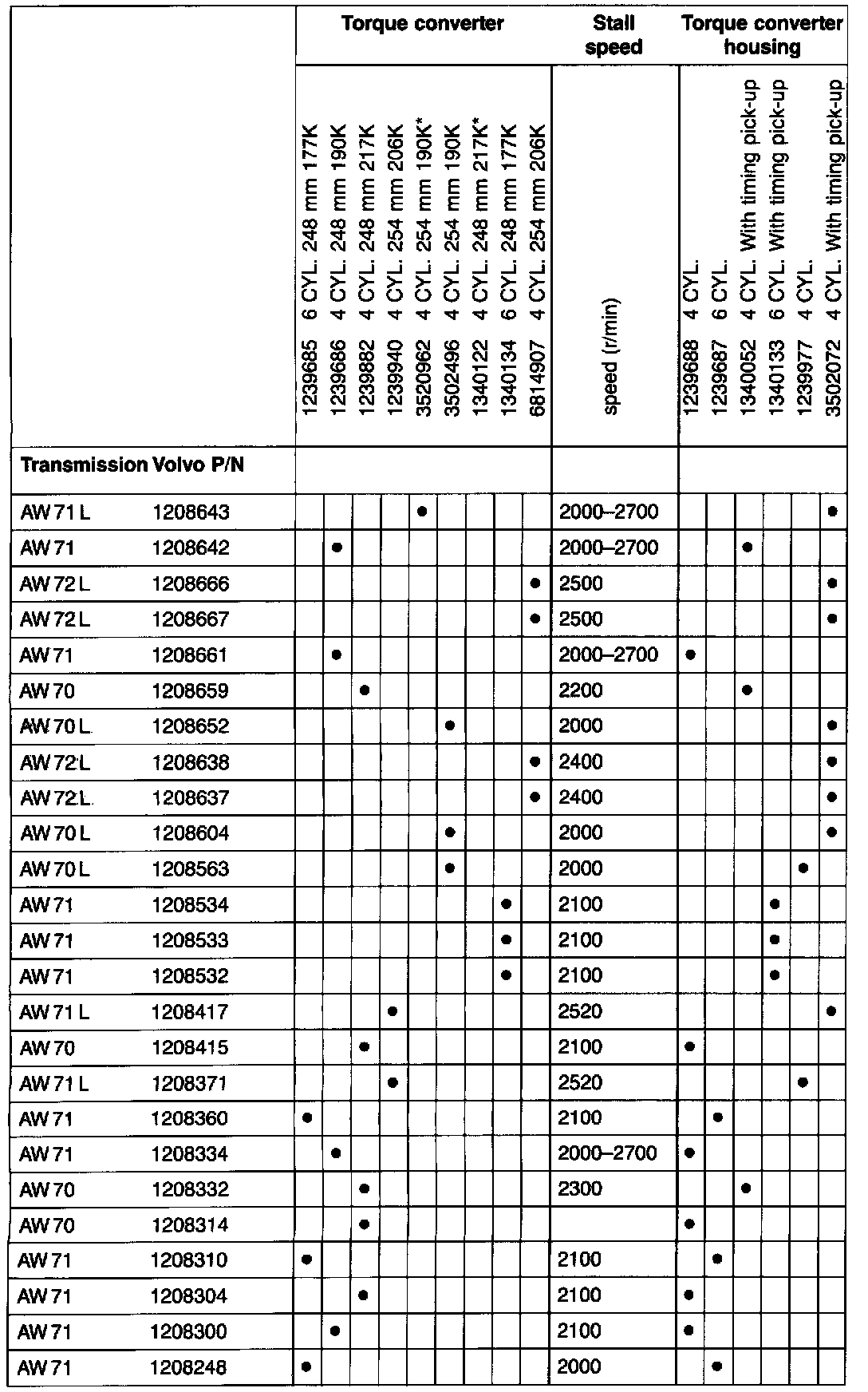

Torque Converter, Stall Speed, Torque Converter Housing
* Torque converter with mounting lugs

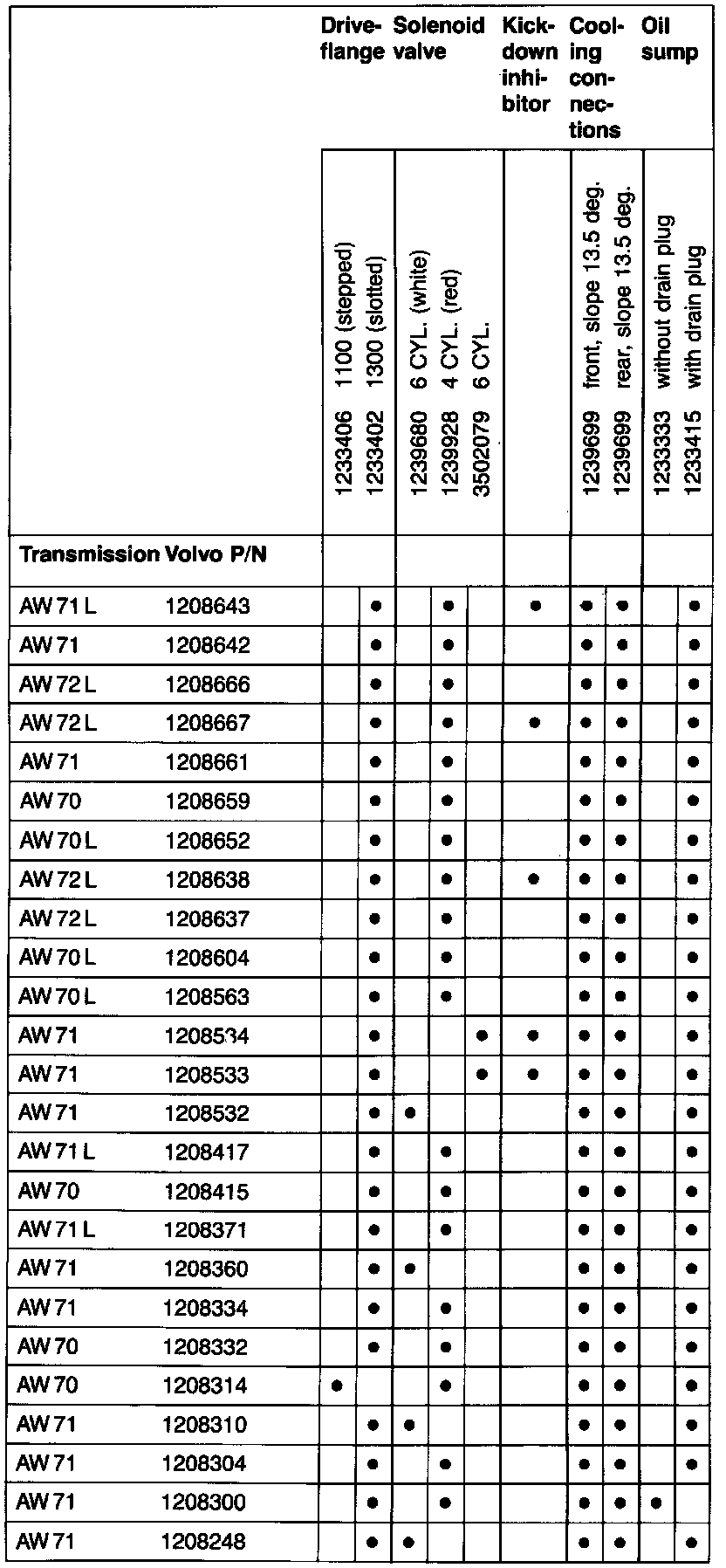

Drive Flange, Solenoid Valve, Kickdown Inhibitor, Oil Pump

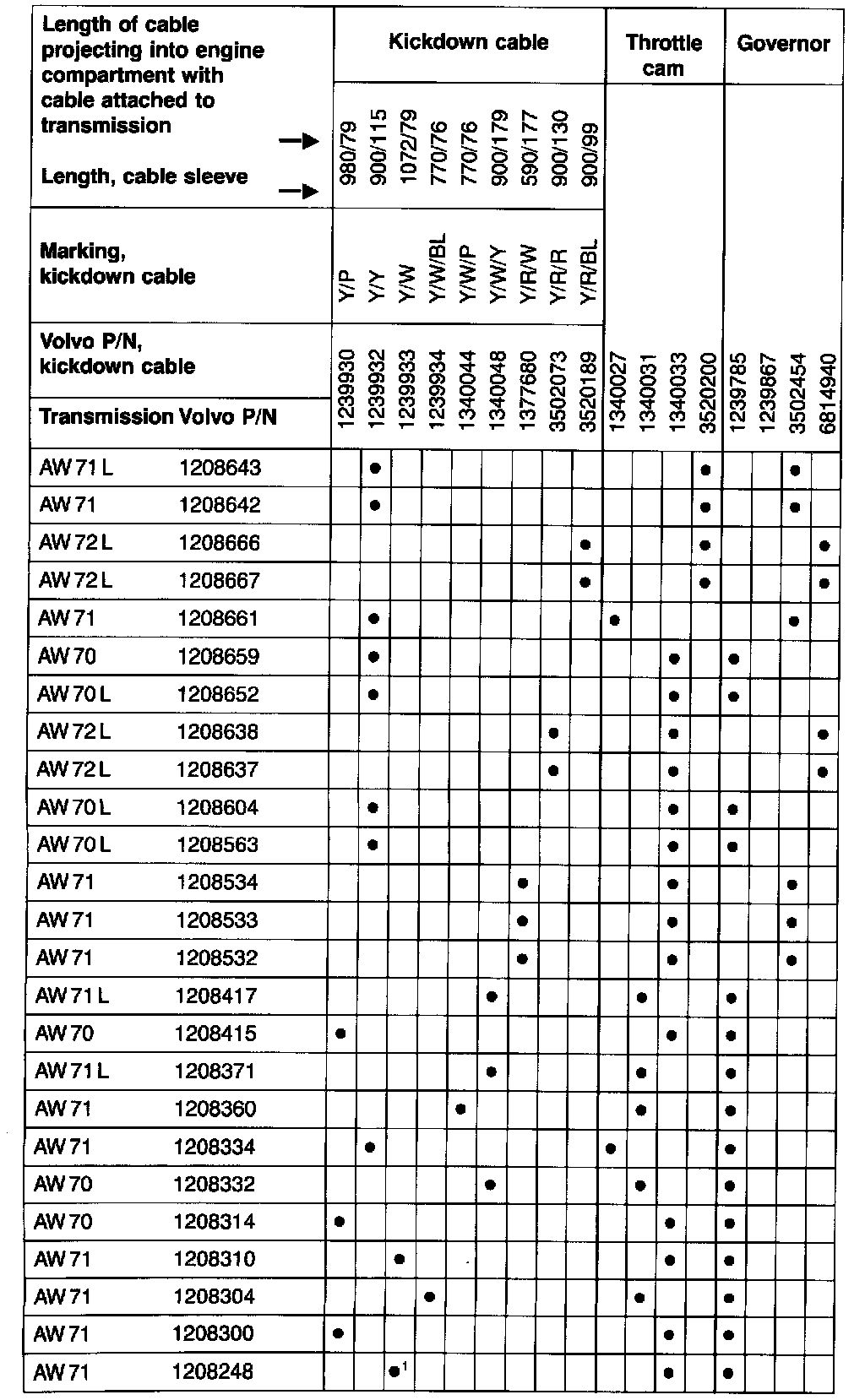

Kickdown Cable, Throttle Cam, Governor
1233359 to March 1982 incl.

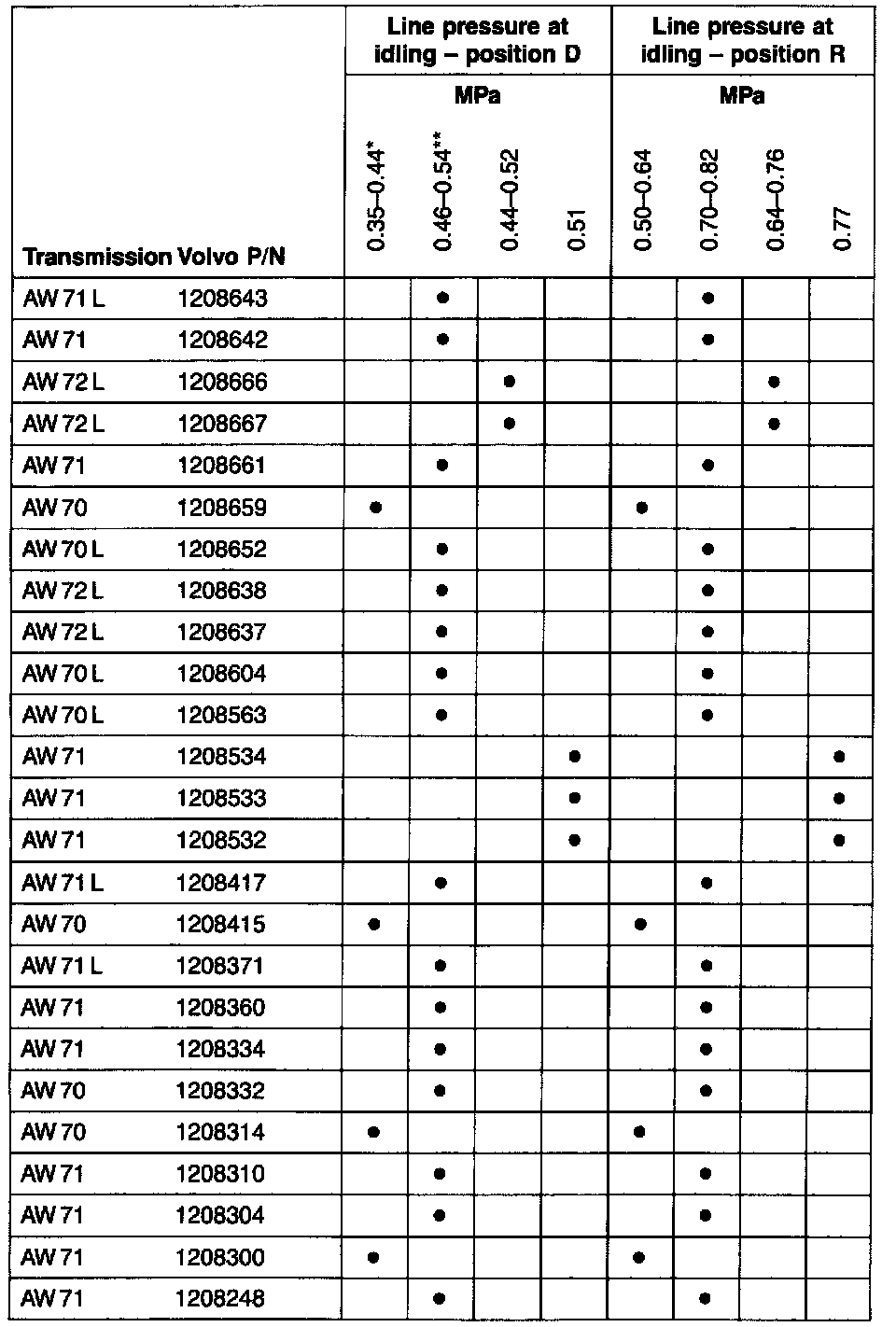

Line Pressure In Gear Positions D And R
* Red primary regulator valve, spring 0.38 MPa
** White primary regulator valve, spring 0.47 MPa

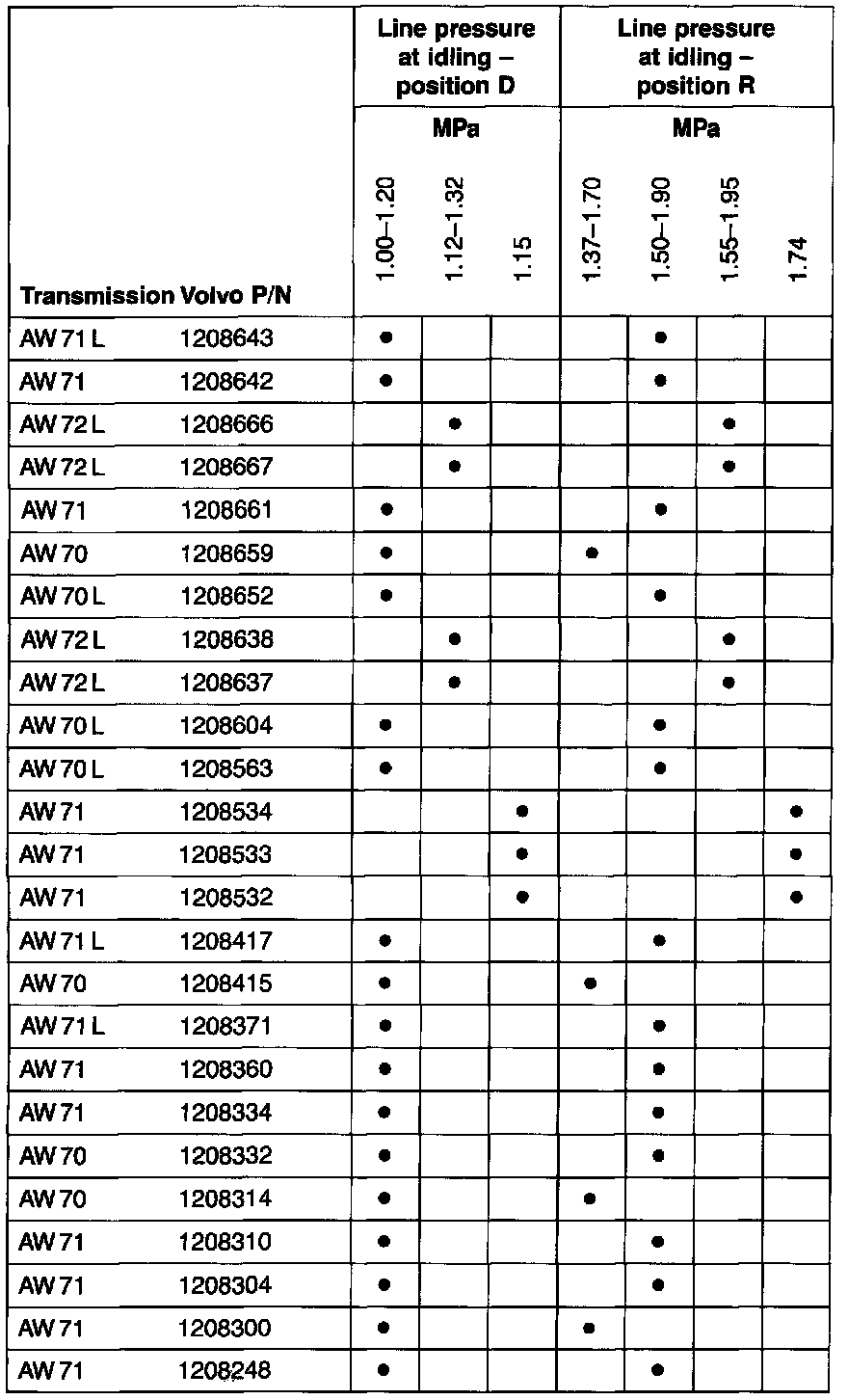

Stall Speed Pressure In Gear Positions D And R

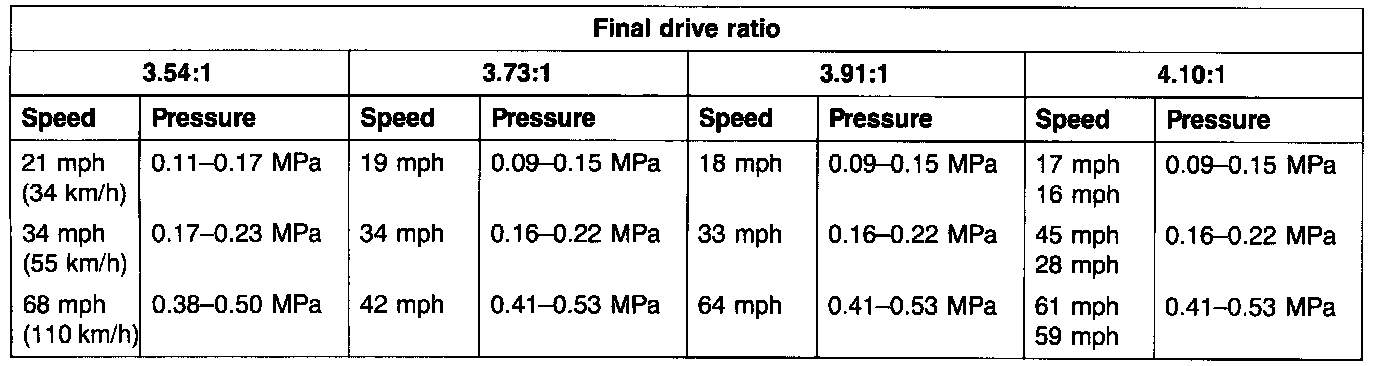

Governor Pressures
* Applies to AW72L.
