Relief Spring Lengths:

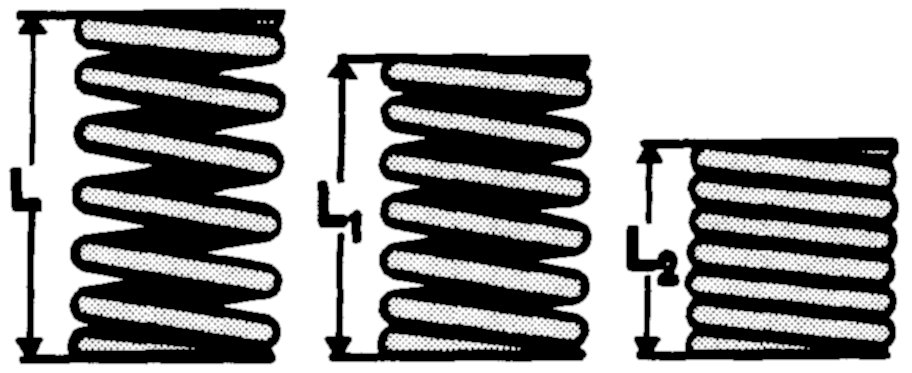

RELIEF SPRING LENGTH AT VARIOUS LOADINGS:
Length Loading
L 39.2 mm @ no load
(1.543 in)
L1 26.25 mm @ 46-54 N
(1.033 in) (10.1-11.9 lbs)
L2 21.0 mm @ 62-78 N
(0.827 in) (13.6-17.2 lbs)
Relief Spring Specifications
