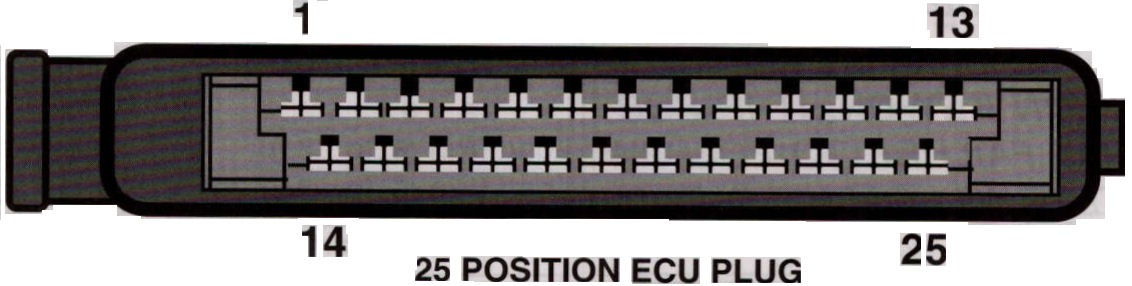

25 Position ECU Plug:
For terminal ID refer to "Computers and Control Systems : Engine Control Module : Diagrams". Connector Views
CAUTION: WHEN MEASURING OHMS DISCONNECT THE ECU FROM THE HARNESS PLUG AND NEVER TURN THE IGNITION KEY ON. IT IS P05SIBLE THAT FAILURE TO FOLLOW THESE STEPS WILL RESULT IN DAMAGE TO THE ECU.

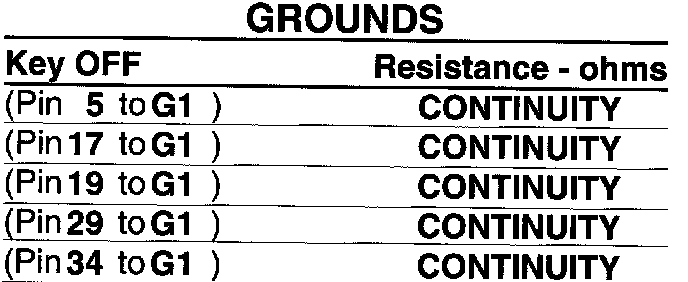

Grounds

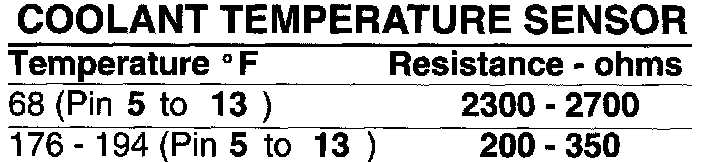

Coolant Temperature Sensor

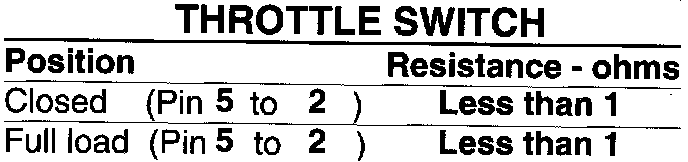

Throttle Switch

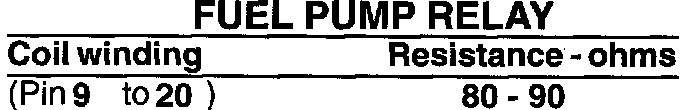

Fuel Pump Relay

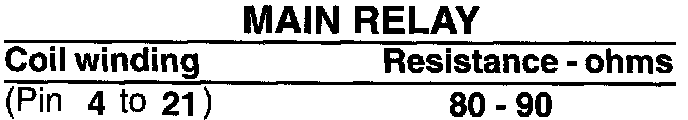

Main Relay

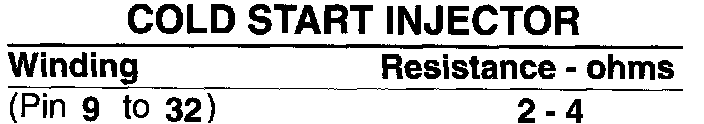

Cold Start Injector

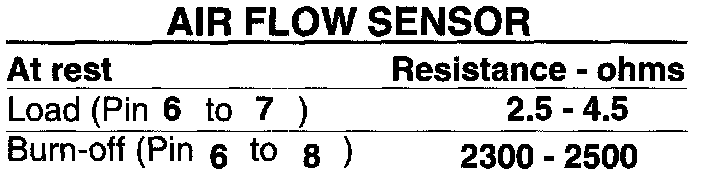

Air Flow Sensor

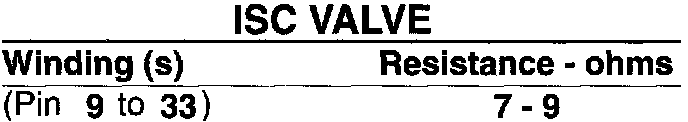

ISC Valve

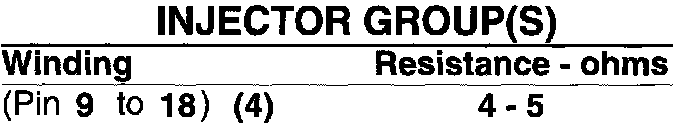

Injector Group(s)

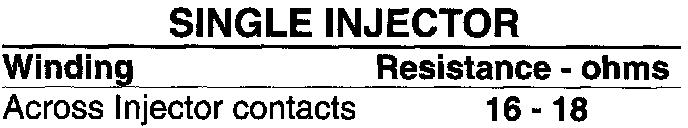

Single Injector
