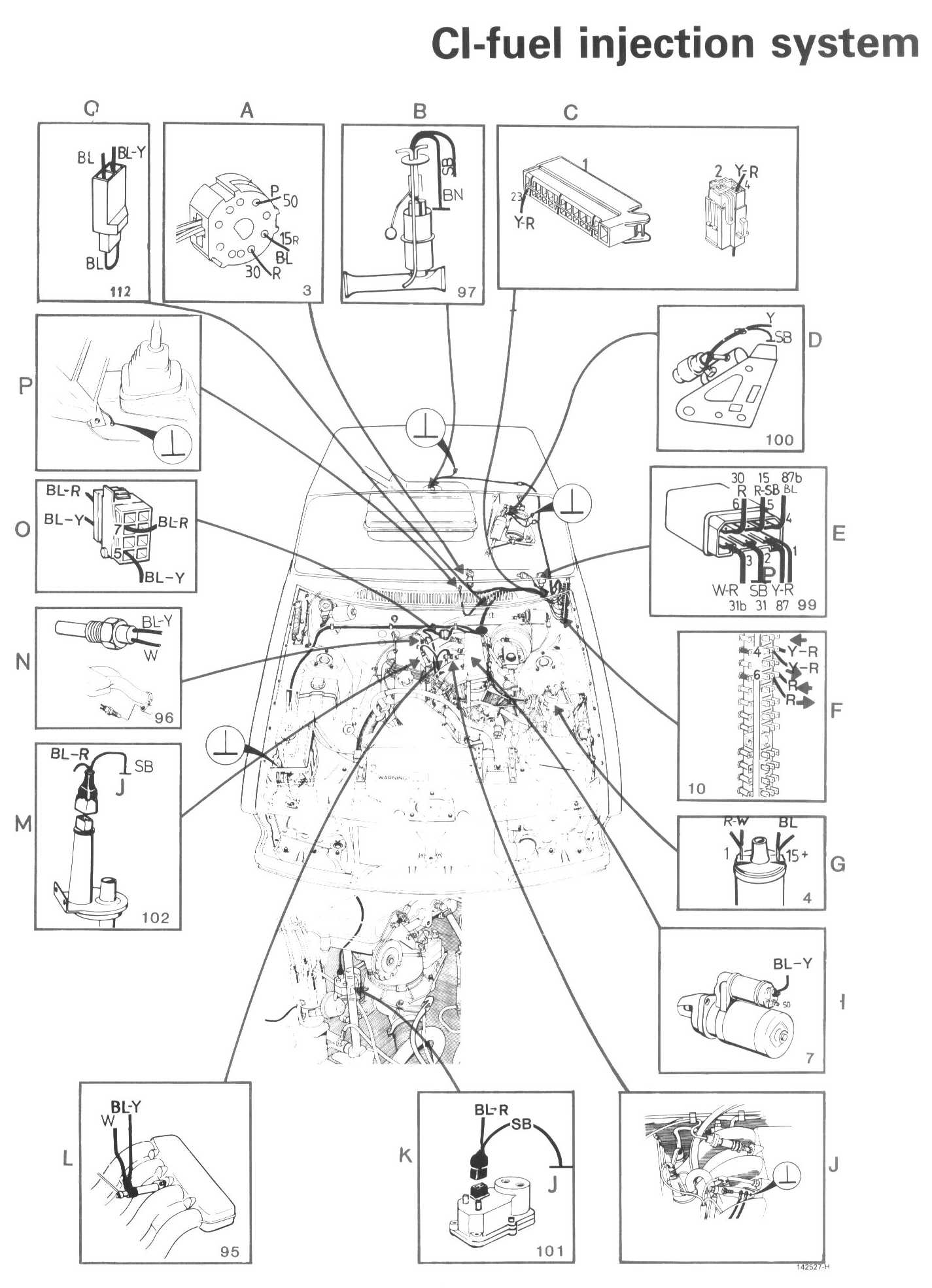

Component / Connector Views:

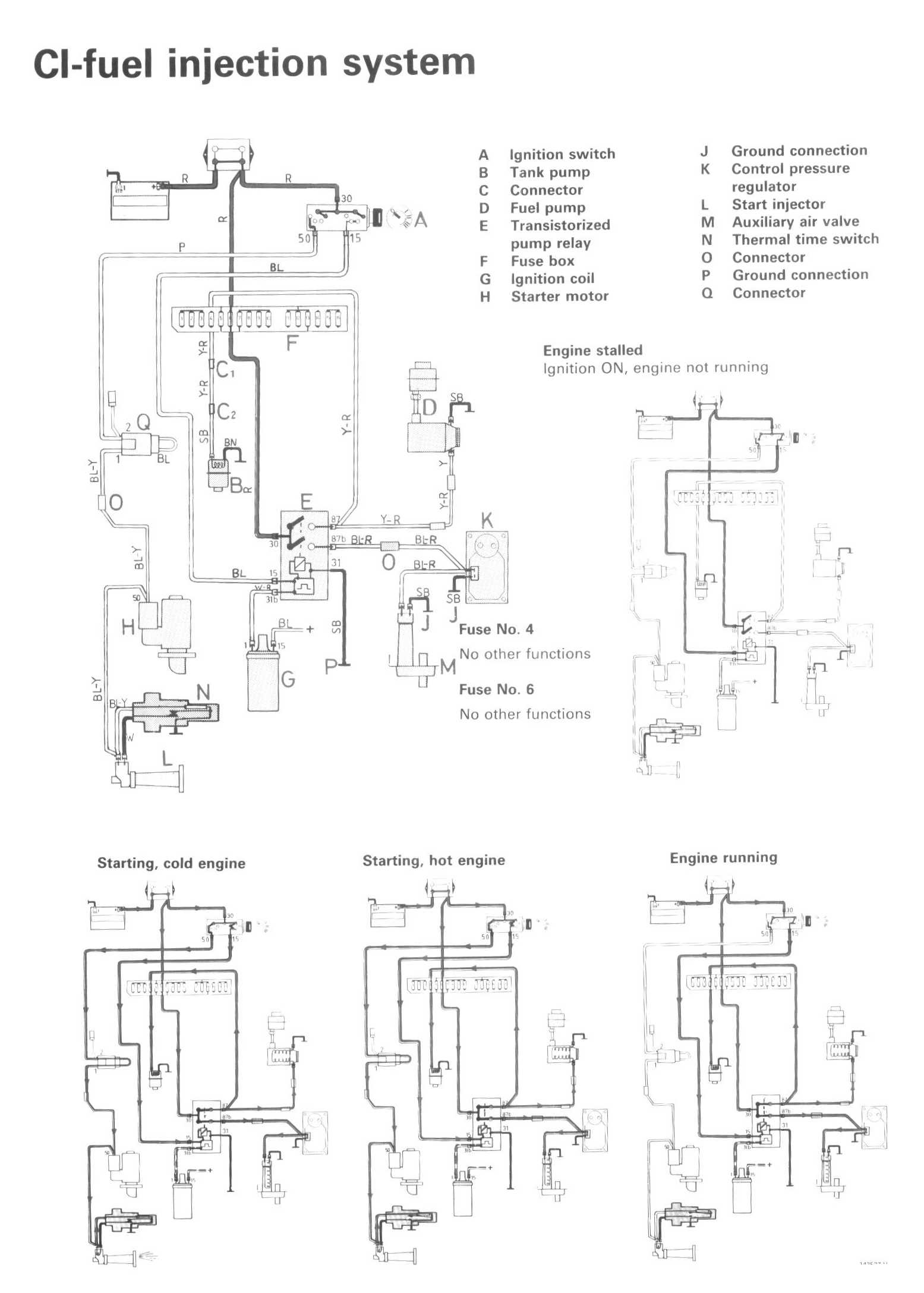

Wiring Diagrams:
LEGEND
A Ignition switch
B Tank pump
C Connector
D Fuel pump
E Transistorized primp relay
F Fuse box
G Ignition coil
H Starter motor
J Ground Connection
K Control pressure regulator
L Start injector
M Auxiliary air valve
N Thermal time switch
O Connector
P Ground connection
Q Connector
