Fastener Tightening Specifications

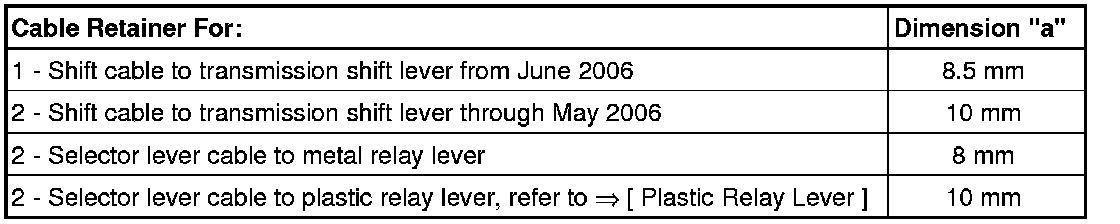

Cable Retainer Allocation

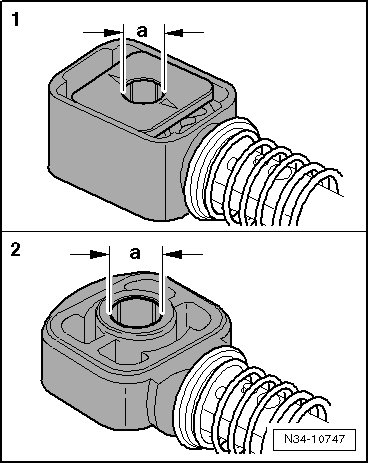

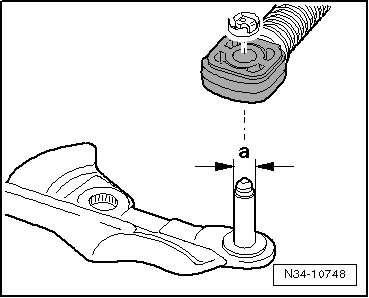

These holes have different diameters.

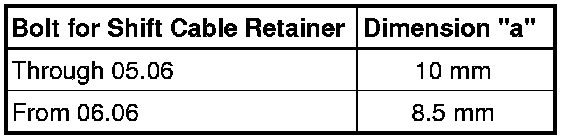

As of 02.2006, Smaller Bolt Diameter for the Shift Cable Retainer

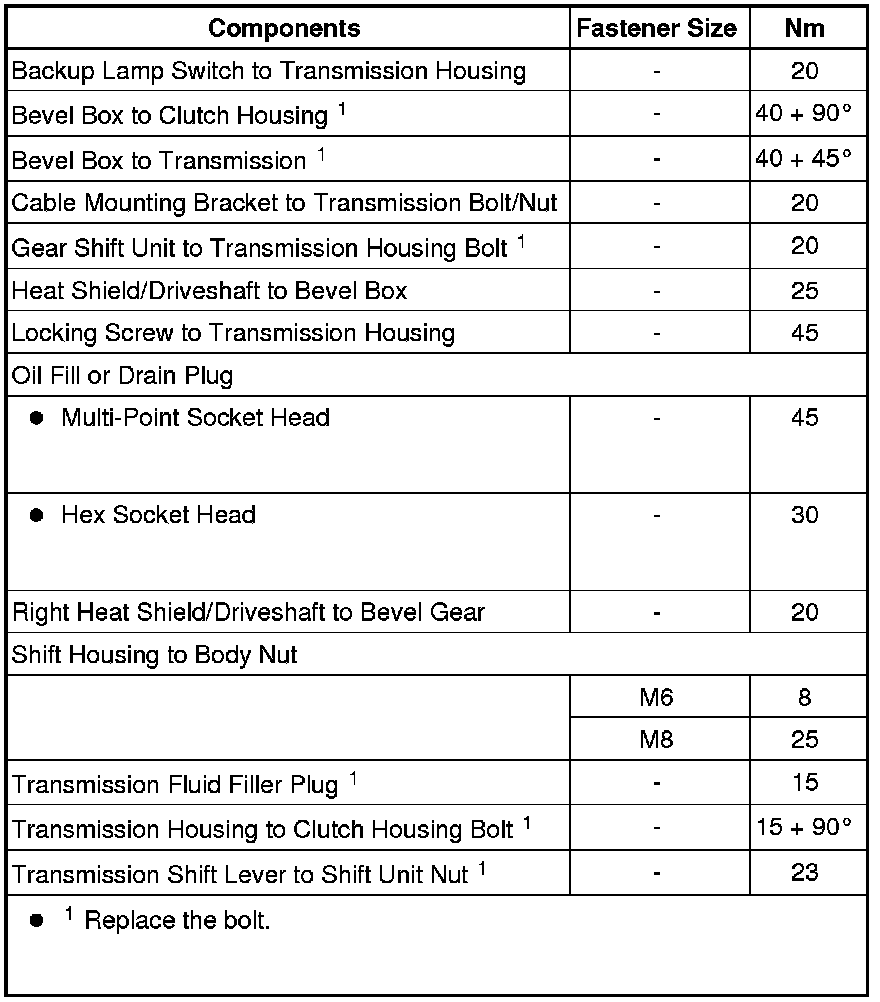

Tightening Specifications

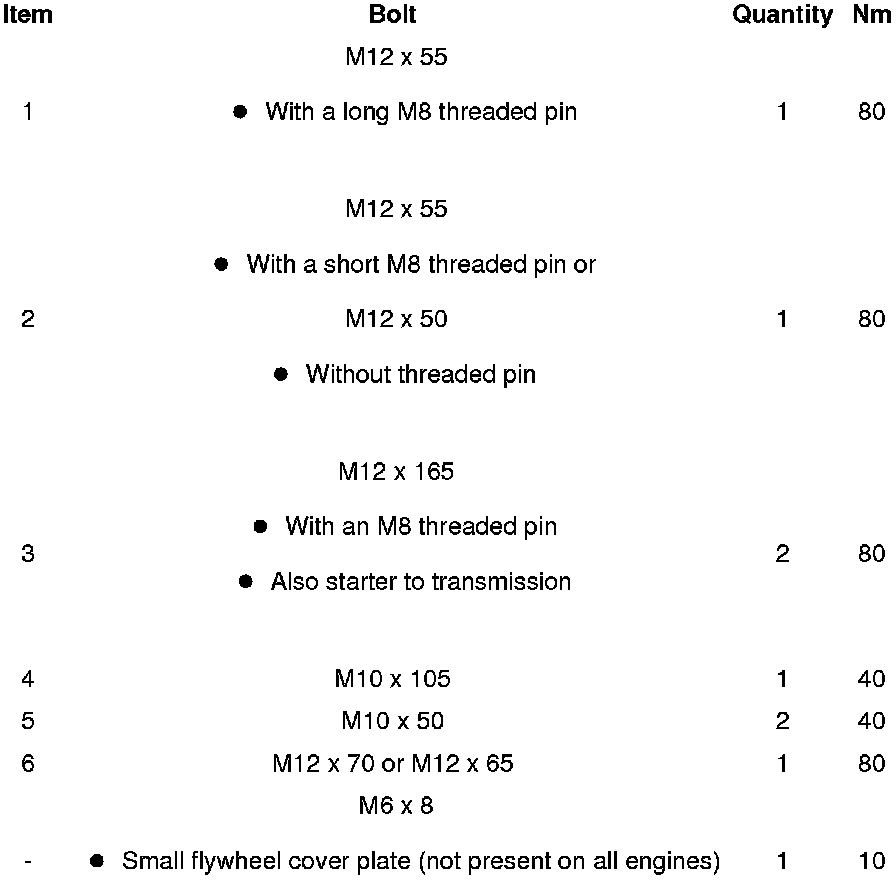

Transmission to engine
Transmission Mount

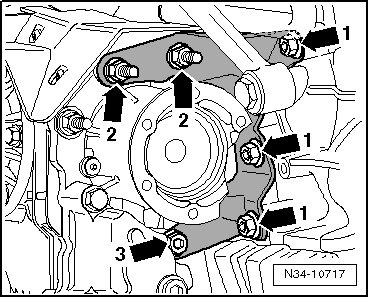

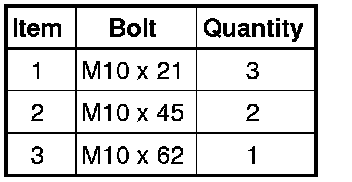

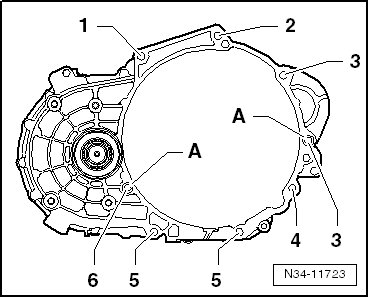

Allocation of bolts
The following assembly sequence must be followed when installing the transmission mount:
- Hand-tighten all bolts.
- Tighten the bolts - arrows 2 and 3 - to 40 Nm.
- Tighten the bolts - arrows 1 - to 40 Nm.
Vehicles with a Vacuum Diaphragm from 11/09 - arrow 1 -
From 11/09, a brace - arrow 2 - is installed under the vacuum diaphragm - arrow 1 - at the top of the transmission support (gradual introduction).

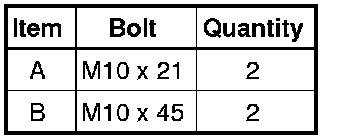

Allocation of bolts

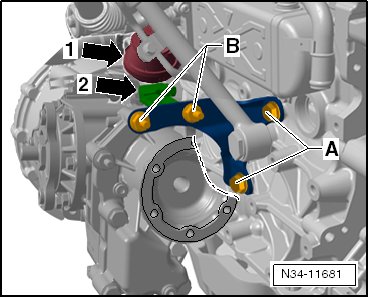

The following assembly sequence must be followed when installing the transmission mount:
- Hand-tighten all screws.
- Tighten the bolts - A - to 40 Nm.
- Tighten the bolts - B - to 40 Nm.
Continuation for All

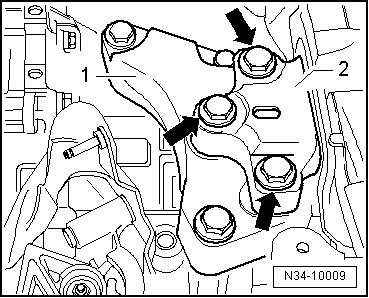

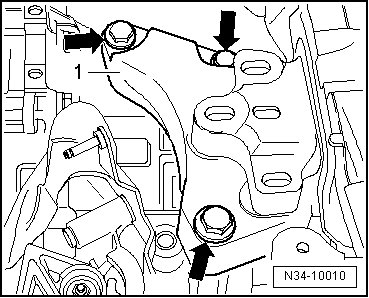

Transmission Bracket - 1 - to Transmission.
- Replace the bolts.
Bolts - arrows -: 60 Nm + 90° additional turn
Transmission to Body
- Replace the bolts.
Bolts - arrows -: 60 Nm + 90° additional turn
