Ignition System Component Overview
• The engine speed sensor (G28) is on the cylinder block. See - item 14 - in => [ Cylinder Block ] Engine Component Overviews.

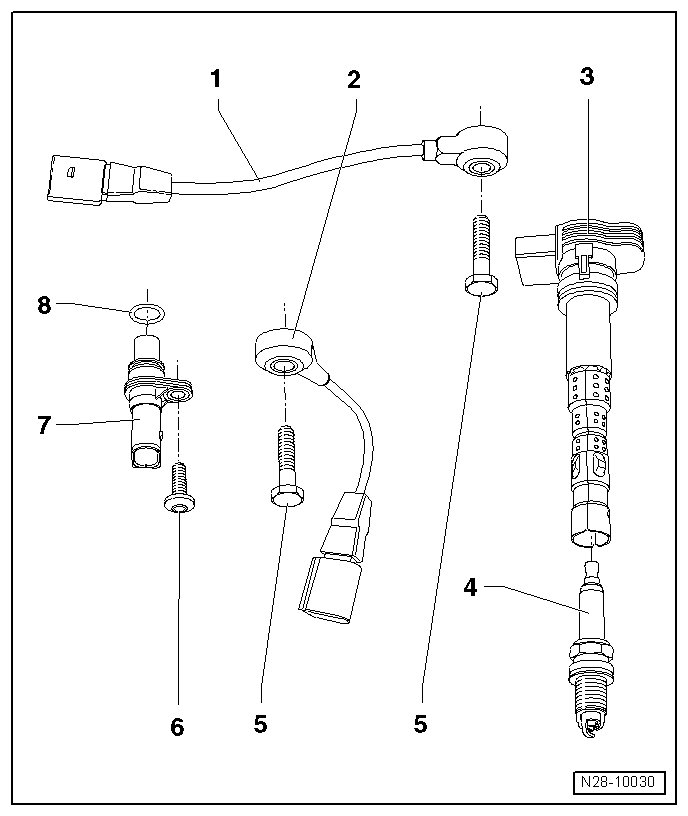

1 Knock Sensor 1 (G61)
• It is necessary to remove the thermostat first in order to remove the sensor. Refer to => [ Coolant Thermostat Housing with Thermostat ] Service and Repair.
• Contacts are gold plated.
2 Knock Sensor 2 (G66)
• It is necessary to remove the oil filter bracket first in order to remove knock sensor. Refer to=> [ Oil Filter Adapter ] Service and Repair.
• Contacts are gold plated.
3 Ignition Coil with Power Output Stage ((N70, N127, N291, N292))
• Removing and installing, refer to => [ Ignition Coils with Power Output Stages ] Service and Repair.
4 Spark Plug
• Tightening specification, refer to => [ Test Data and Spark Plugs ] Test Data and Spark Plugs.
• If the spark plug is replace, grease the ignition coil with power output stage. Refer to => [ Installing ] Service and Repair.
• Type and electrode gap, refer to => [ Test Data and Spark Plugs ] Test Data and Spark Plugs.
• Remove and install using the spark plug removal tool (3122 B).
5 Bolt
• 20 Nm
• Tightening specification affects the function of the knock sensor.
6 Bolt
• 10 Nm
7 Camshaft Position Sensor (G40)
• Contacts are gold plated.
8 O-ring
