Control modules in front part of vehicle

Engine Control Module (ECM) -J623-

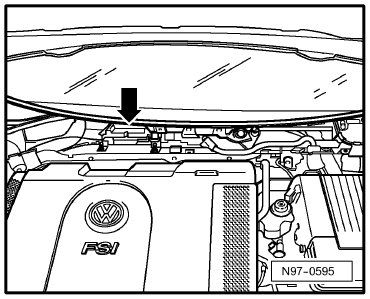

Component Location:

Below the plenum chamber cover -Arrow-

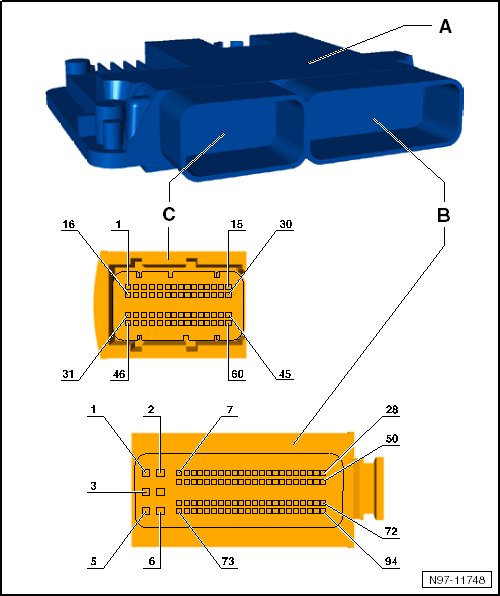

154-pin, Pin Arrangements:

A - Engine Control Module (ECM) -J623-
Connector:

B - 94-pin connector -T94-

C - 60-pin connector -T60-

Note::
• -T154- consists of items B and C
