Electronic Brake Control Module

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Volkswagen.

AI Repair Guides





Anti-Lock Brake Systems - Connector Views

ABS control module -J104-

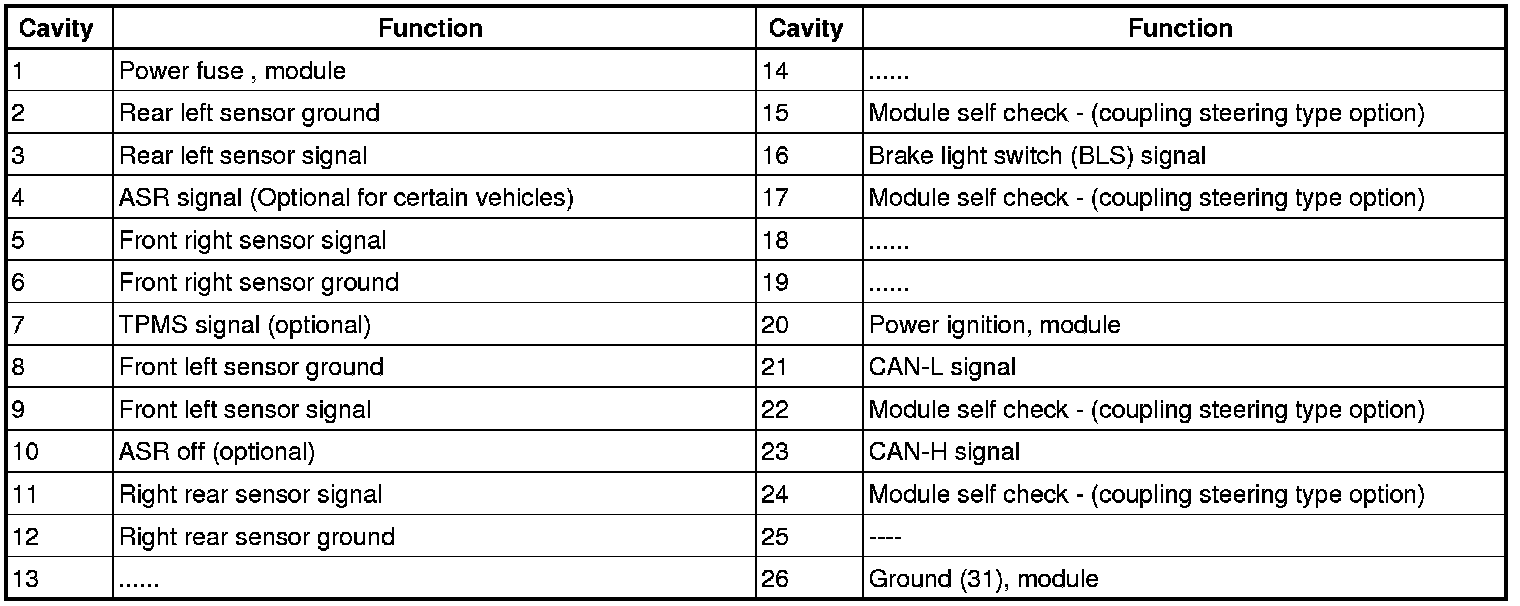

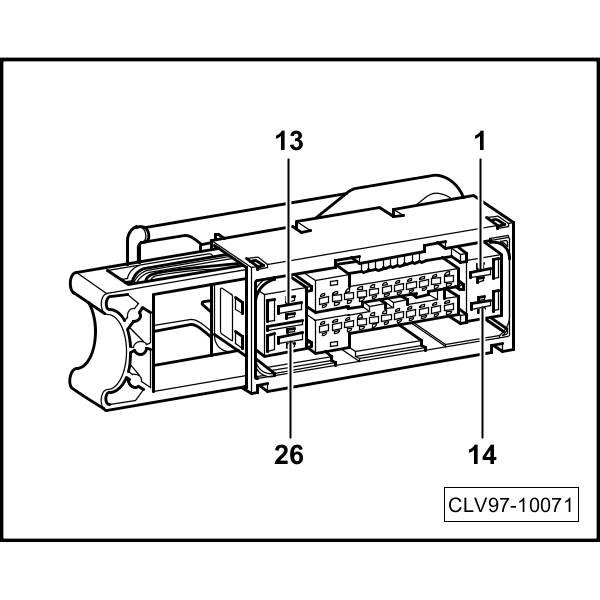

MK70 ABS

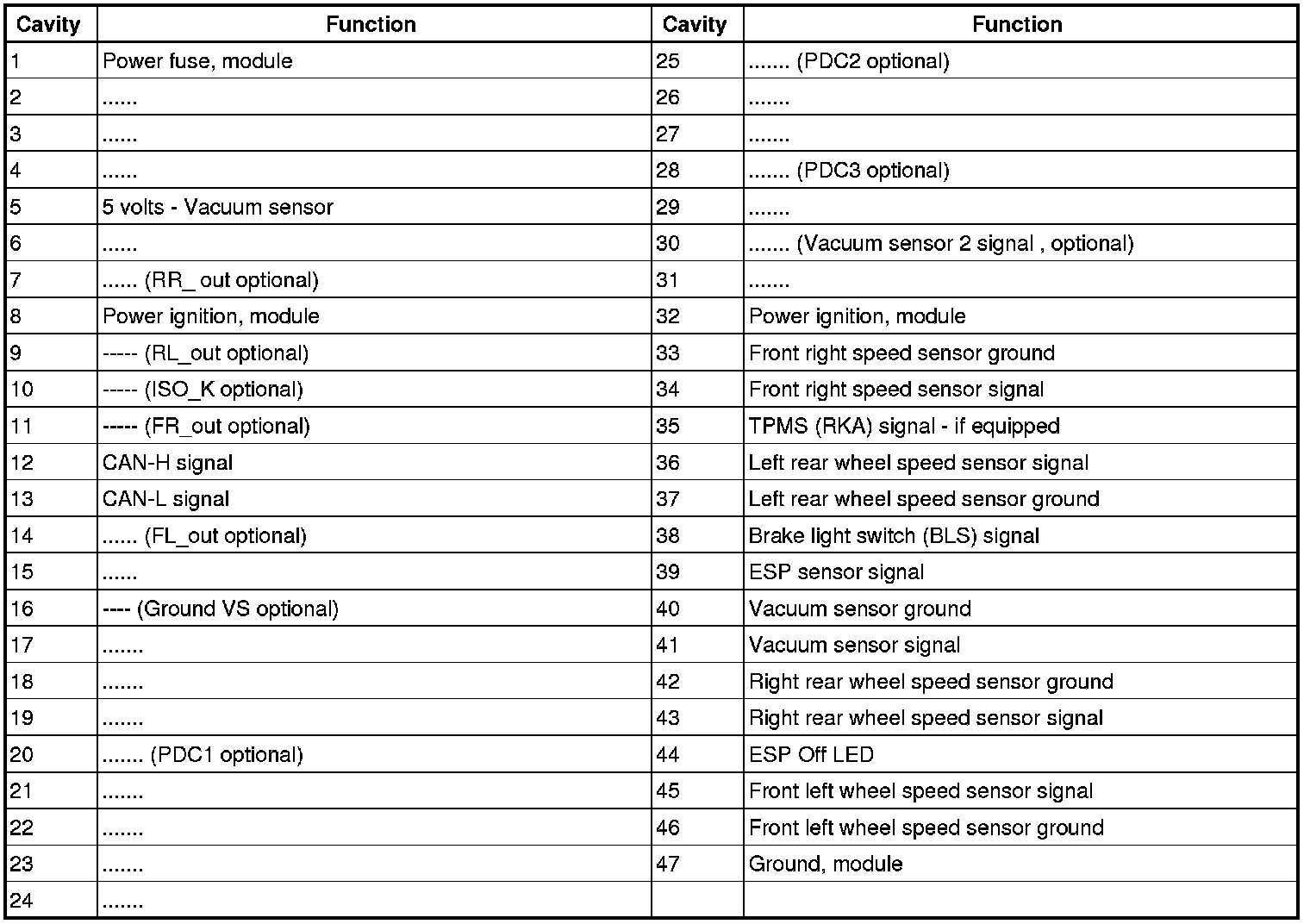

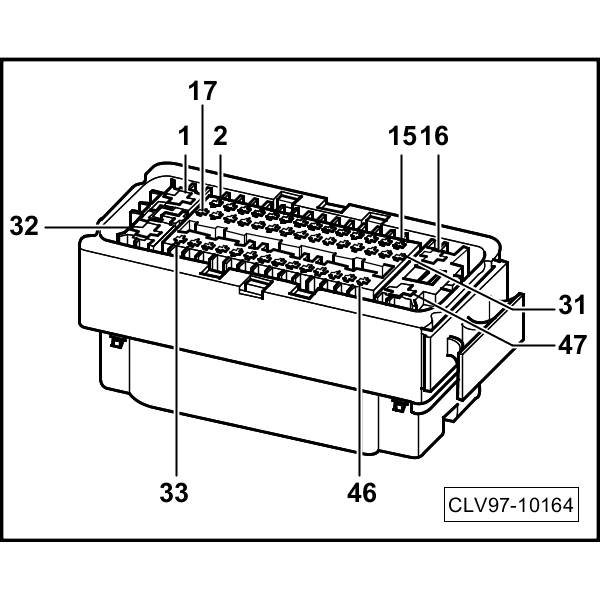

MK60 ABS with ESP










← Back to Connector ViewsAll Makes
