Comfort System - Connector Views

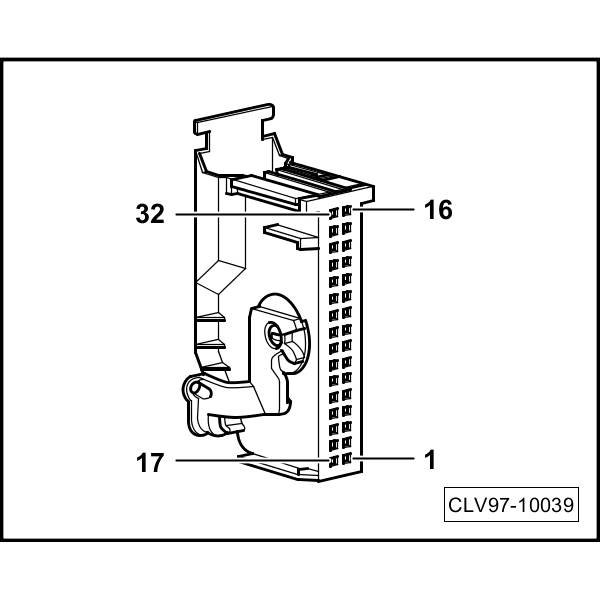

Front passenger door control module -J387-

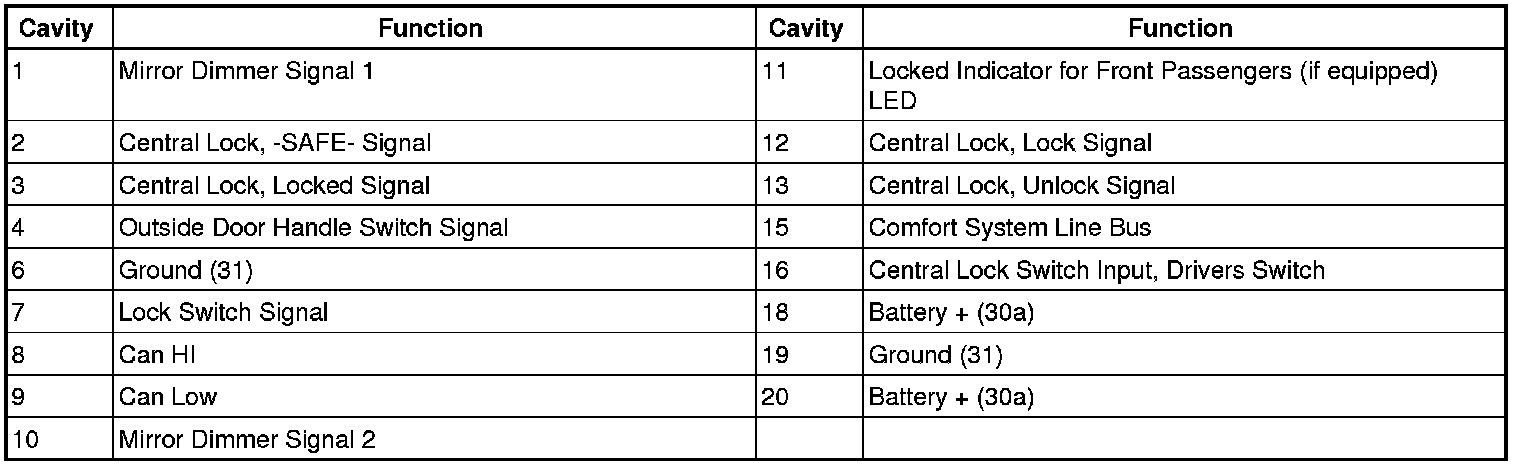

Connector A

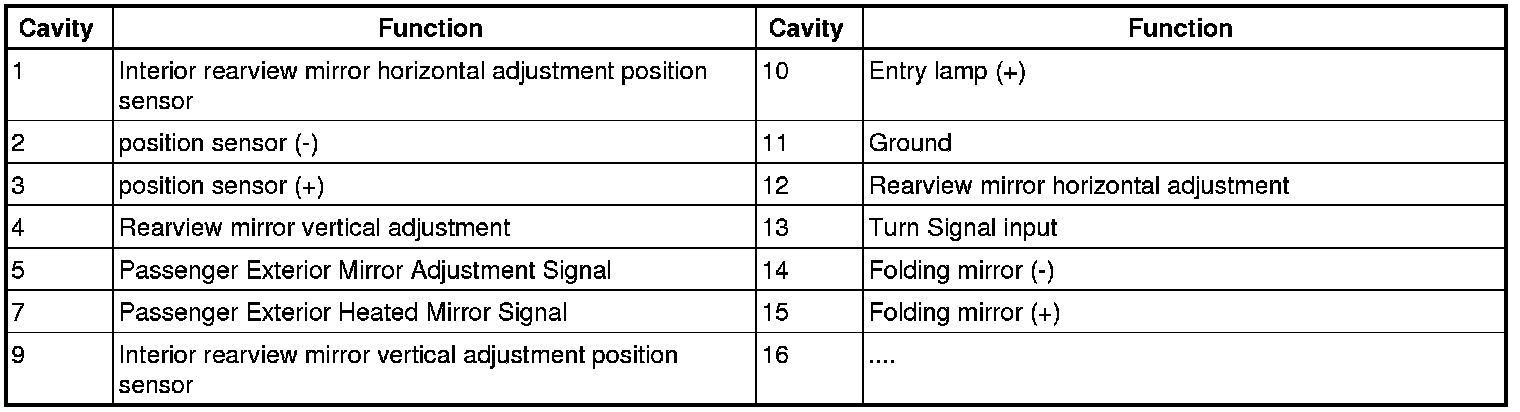

Connector B

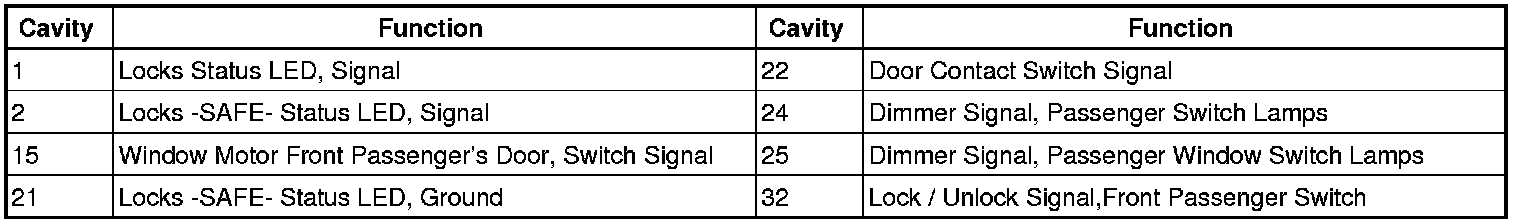

Connector C
Front Pass Door Control Module -J387
