Climatronic (Automatic Climate Control) Control Module -J255

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Volkswagen.

AI Repair Guides





Climate/ Climatronic Systems - Connector Views

Climatronic control module -J255-

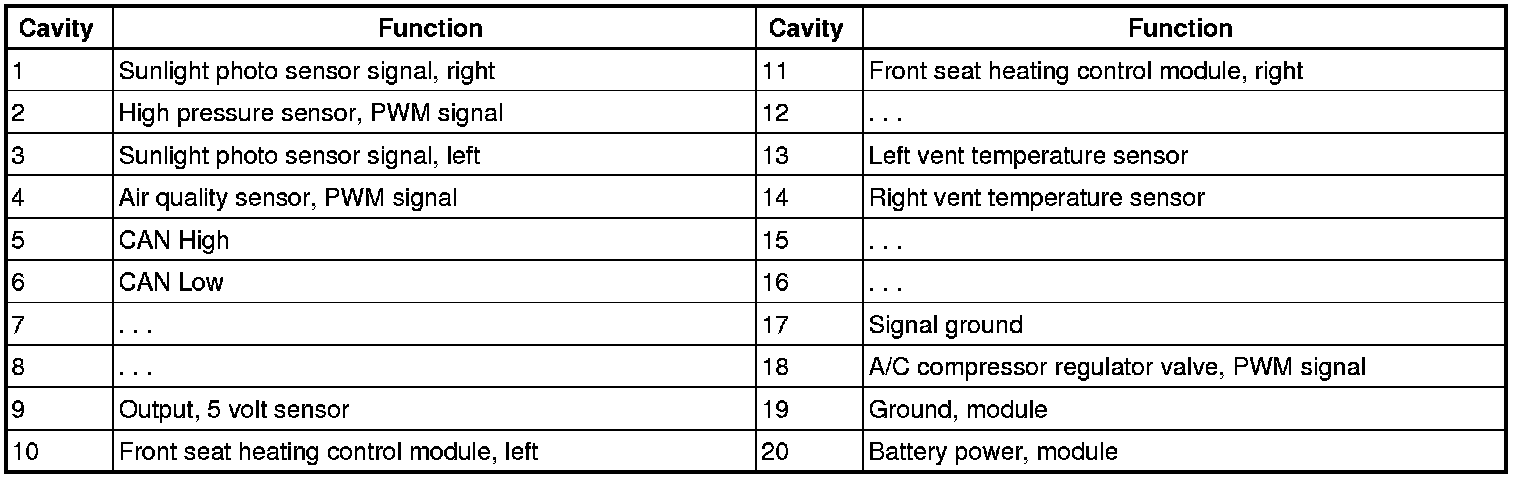

Climatronic - 20 Pins

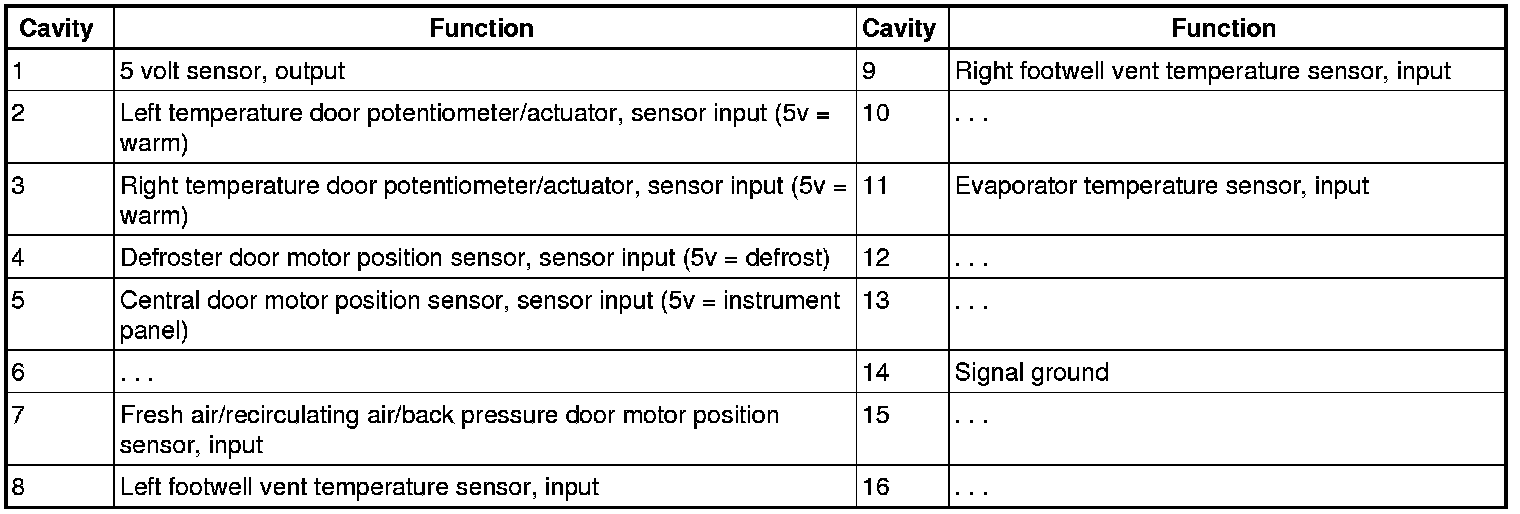

Climatronic - 16 Pins (g)

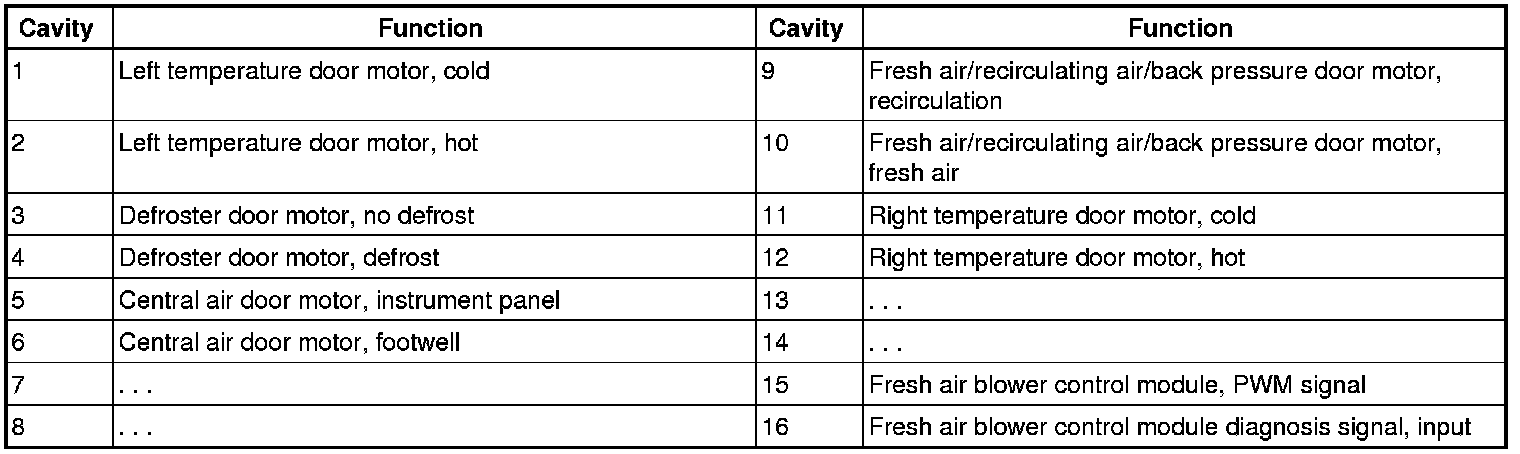

Climatronic - 16 Pins (e)
