Control modules in interior

Comfort System central control module -J393-

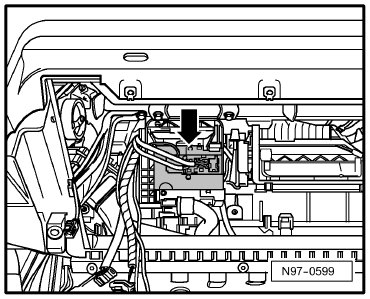

Component Location:


Under the instrument panel behind the glove compartment -Arrow-

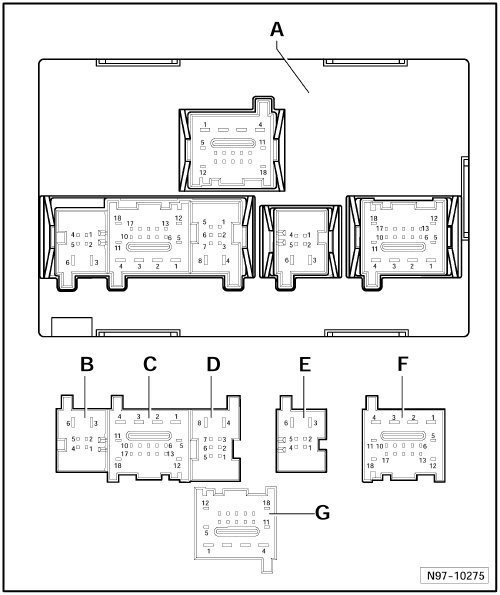

Pin Arrangements:







A - Comfort System central control module -J393-
Connector:

B - 6-pin connector -T6an-

C - 18-pin connector -T18a-

D - 8-pin connector -T8r-

E - 6-pin connector -T6ao-

F - 18-pin connector -T18b-

G - 18-pin connector -T18c-

Note::
• 18-pin connector -T18c- deleted on vehicles without access/start authorization system
