Parking Aid Control Module -J446

Need a step-by-step guide?

Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Volkswagen.

AI Repair Guides





Parking Systems - Connector Views

Parking aid control module -J446-

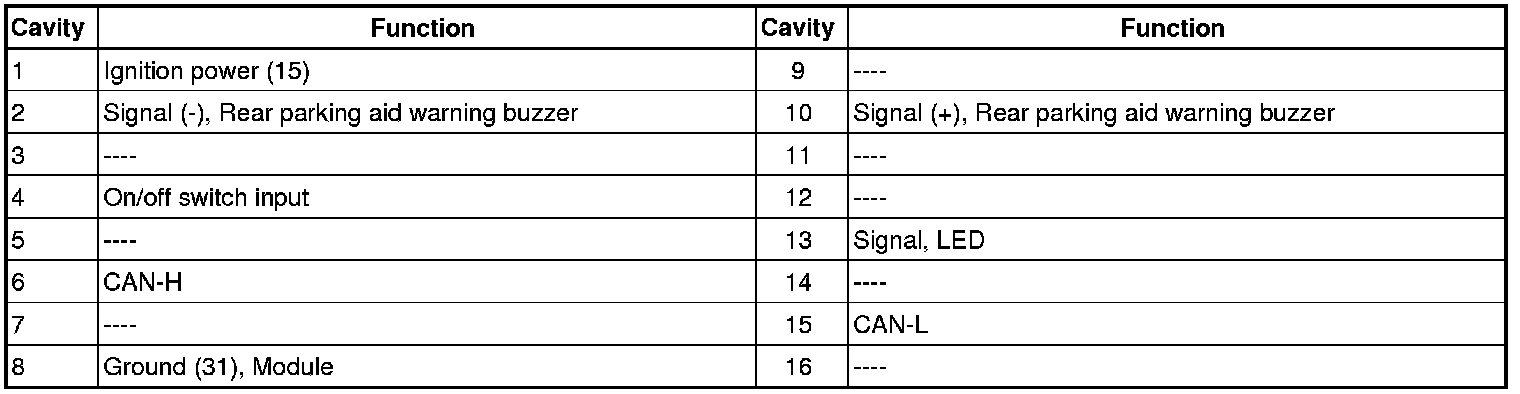

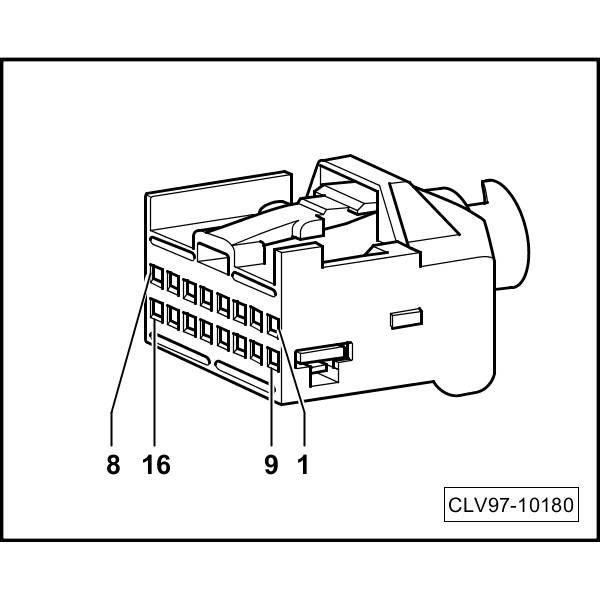

16 Pin Connector

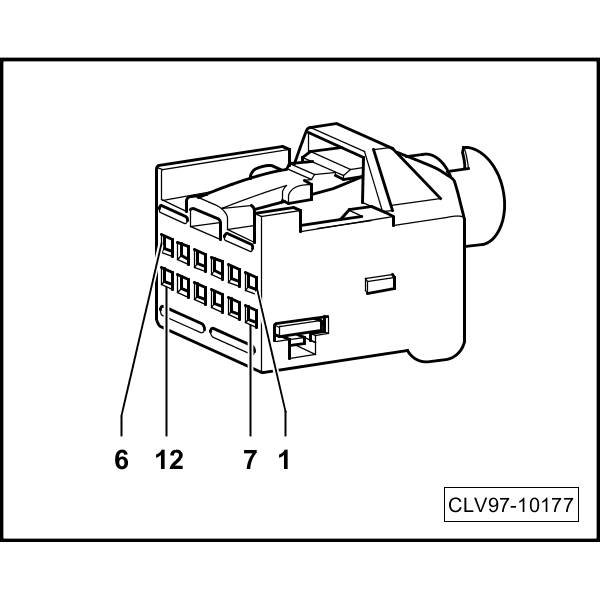

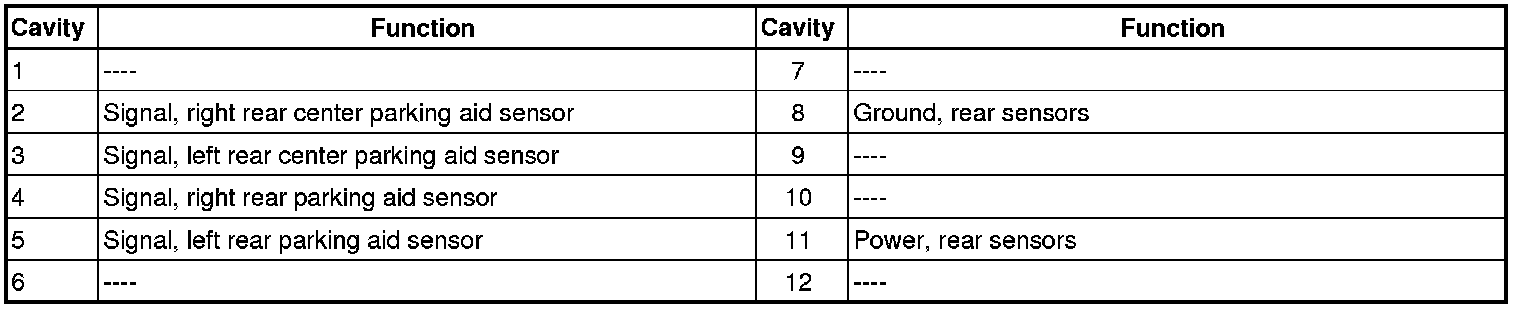

12 Pin Connector (12a)

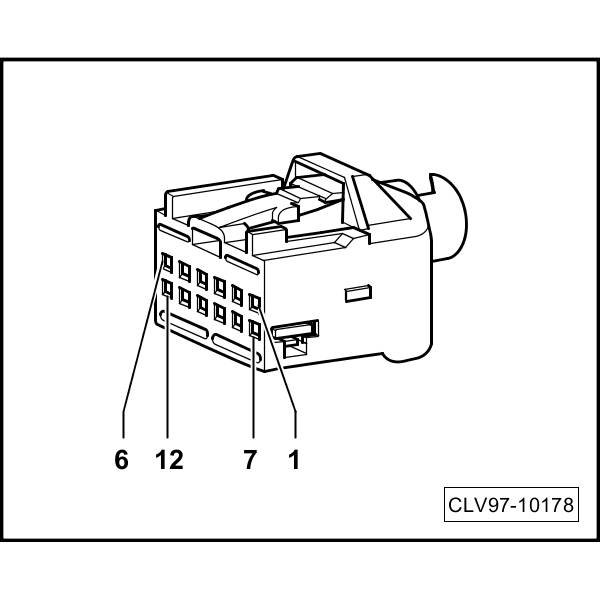

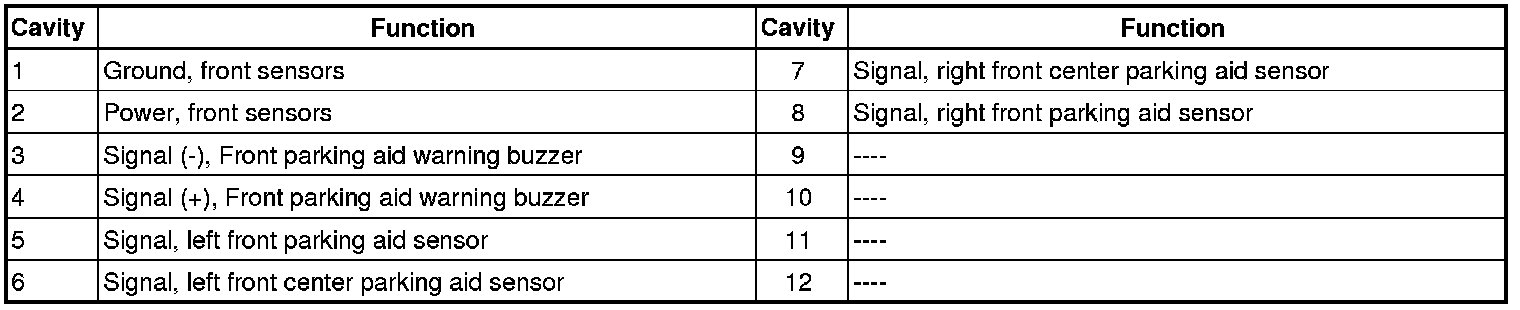

12 Pin Connector (12)
