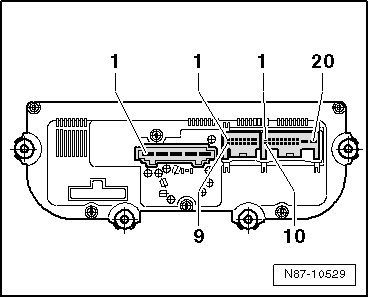

Climatronic Control Module J255 Pin Assignment, Climatic through 27 May 2011 for Passat CC from MY 09 and CC MY 10
Special tools, testers and auxiliary items required
• Test Box (V.A.G 1598/42)
• Adapter Cable (V.A.G 1598/47)
• Template (V.A.G 1598/47-2)
20-pin Connector, T20b
3 Center Outlet Temperature Sensor (G191)
5 High Pressure Sensor (G65)
7 CAN bus low
8 CAN bus high
12 Right seat heater (optional)
13 Left seat heater (optional)
15 Terminal 75 seat heater (optional)
16 A/C Compressor Regulator Valve (N280)
18 Center Outlet Temperature Sensor (G191)
19 Terminal 30A
20 Terminal 31
16-pin Harness Connector, T16j
1 Temperature Regulator Door Motor (V68) , warm
2 Evaporator Temperature Sensor (G308)
3 Air Distribution Door Motor Position Sensor (G645)
4 Footwell Outlet Temperature Sensor (G192)
5 Temperature Regulator Door Motor Position Sensor (G92)
7 + 5 V for Temperature Regulator Door Motor Position Sensor (G92) and Air Distribution Flap Motor Position Sensor (G645)
8 Ground for the Footwell Vent Temperature Sensor (G192) , Front Air Distribution Door Motor Position Sensor (G92) , Evaporator Temperature Sensor (G308) and Air Distribution Door Motor Position Sensor (G645)
9 Fresh/Recirculating Air Door Motor (V154) , open
10 Fresh/Recirculating Air Door Motor (V154) , closed
11 Temperature Regulator Door Motor (V68) , cold
12 Air Distribution Door Motor (V428) , open
13 Air Distribution Door Motor (V428) , closed
5-pin harness Connector T5r
1 3rd Blower Speed
2 2nd Blower Speed
3 1st Blower speed
4 4th Blower Speed
5 Terminal X
