Climatronic Control Module J255 Pin Assignment, CC from MY 10 from 07 November 2011
Special tools, testers and auxiliary items required
• Test Adapter (V.A.G1598/47)
• Due to differences in equipment levels, use the most current wiring diagram to find the exact assignment of the individual connector positions and assignments.

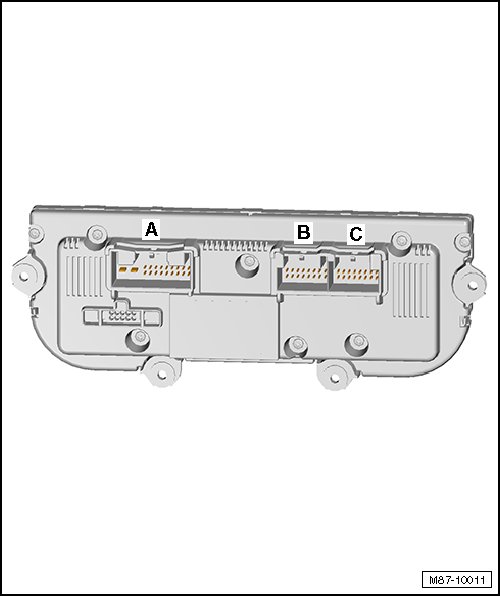

A - Connector 20-pin
• Due to differences in equipment levels, use the most current wiring diagram to locate the connector and pin assignments.
B - Connector 16-pin
• Due to differences in equipment levels, use the most current wiring diagram to locate the connector and pin assignments.
C - Connector 16-pin
• Due to differences in equipment levels, use the most current wiring diagram to locate the connector and pin assignments.
