Climate/Climatronic Systems - Connector Views
A/C control module -J301-

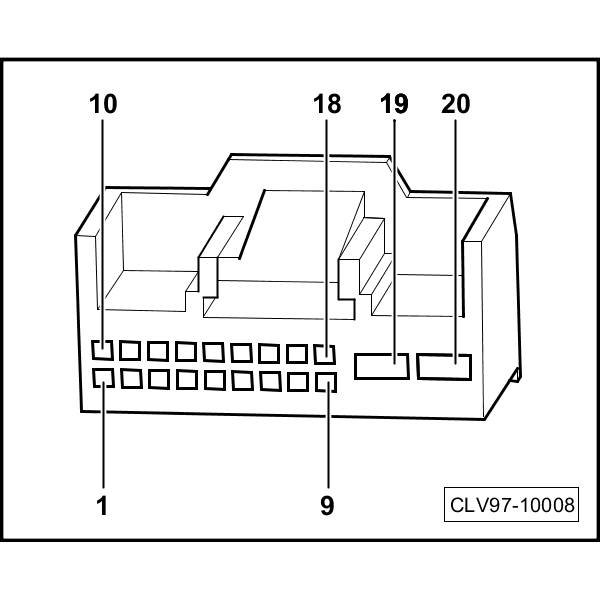

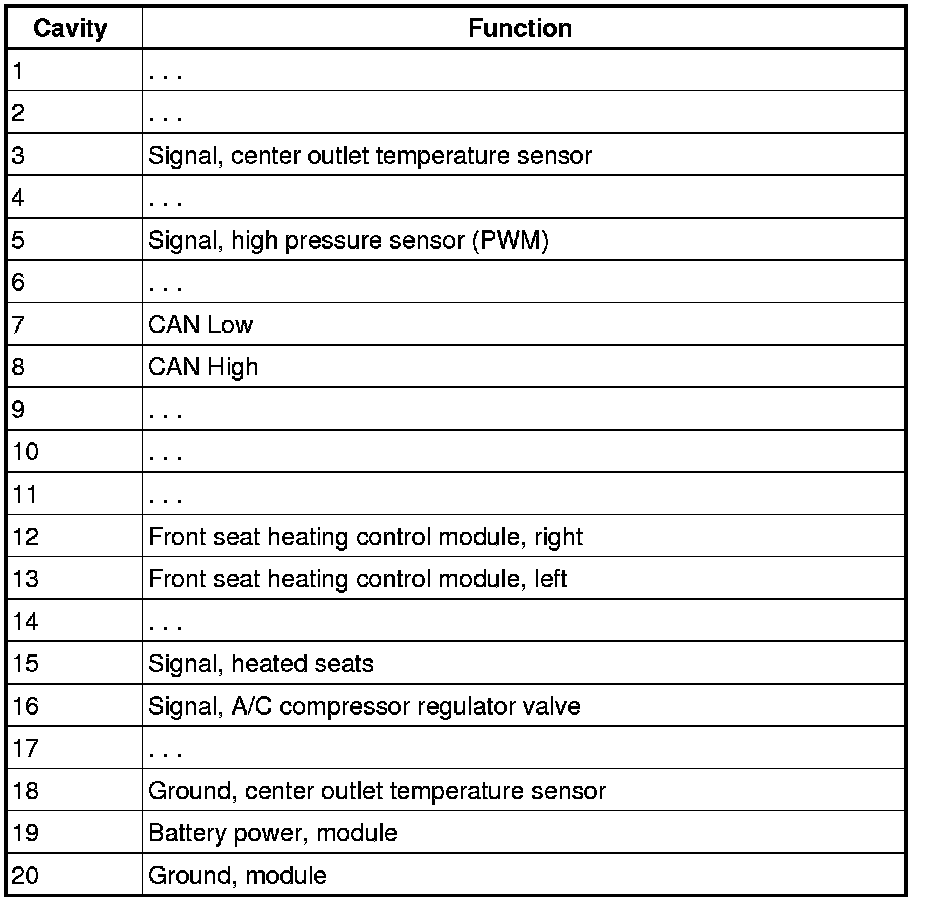

Climatic - 20 Pins

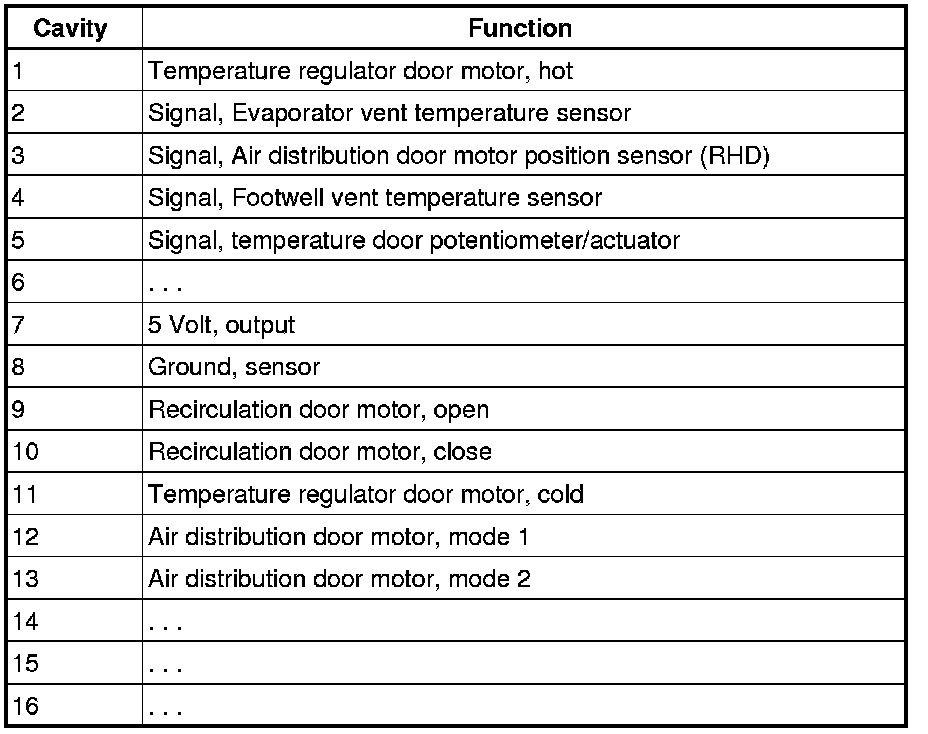

Climatic - 16 Pins

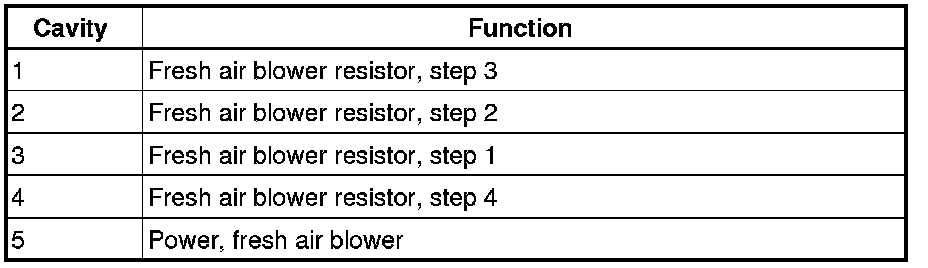

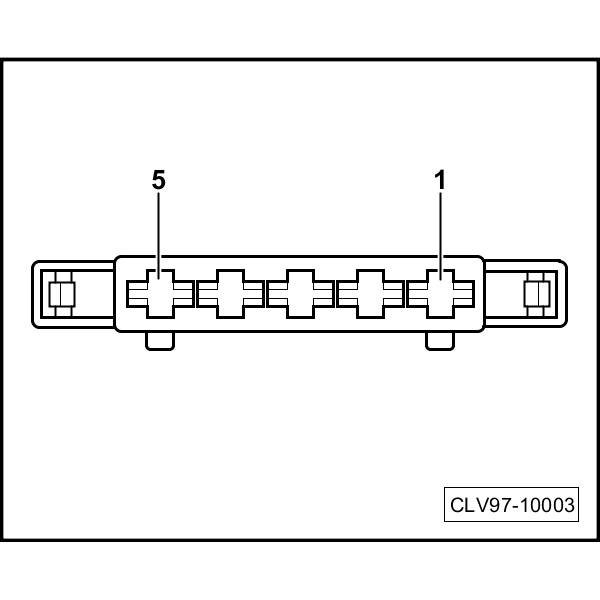

Climatic - 5 Pins
A/C Control Module -J301
