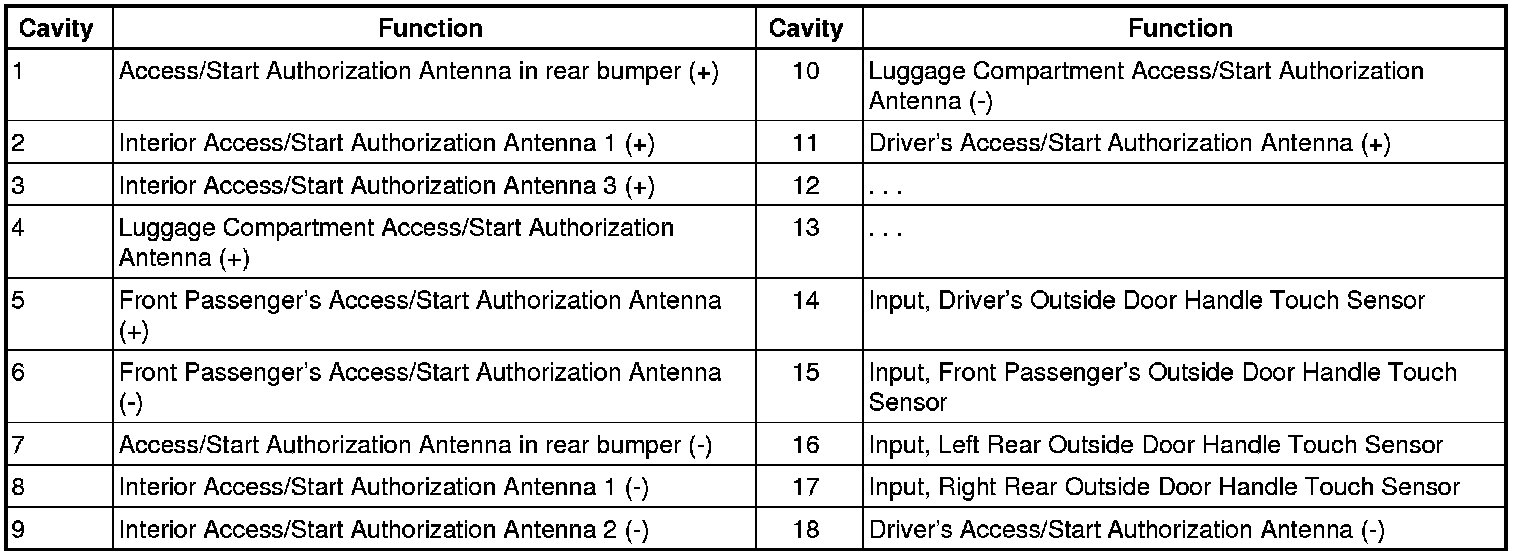

Access/Start Authorization System - Connector Views

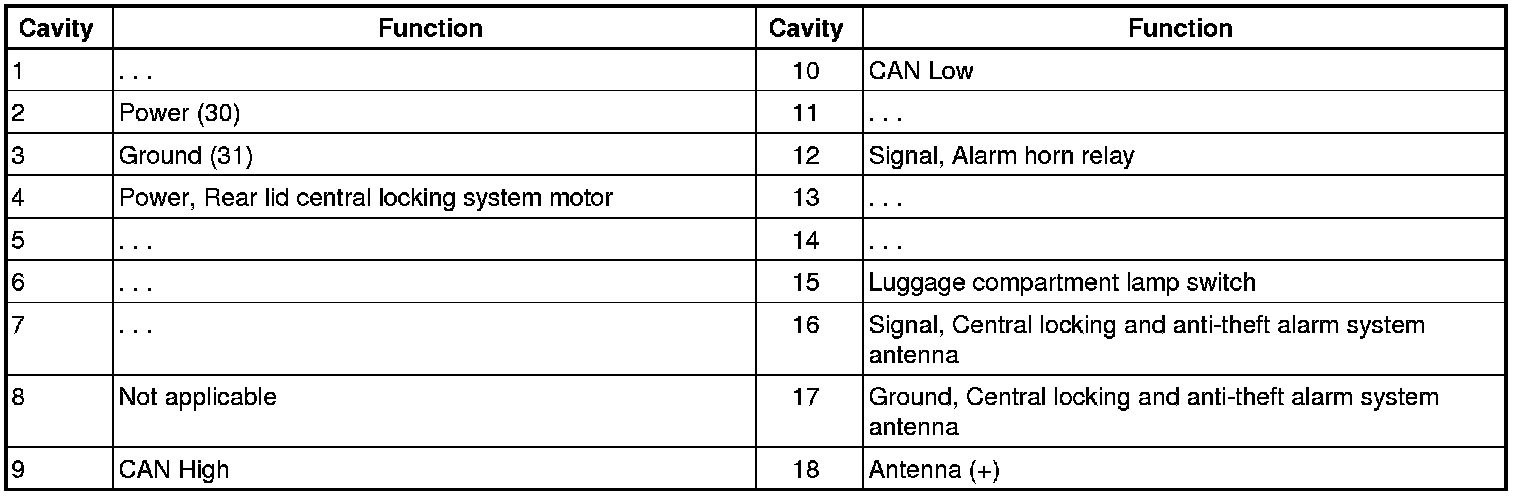

Comfort system central control module -J393-

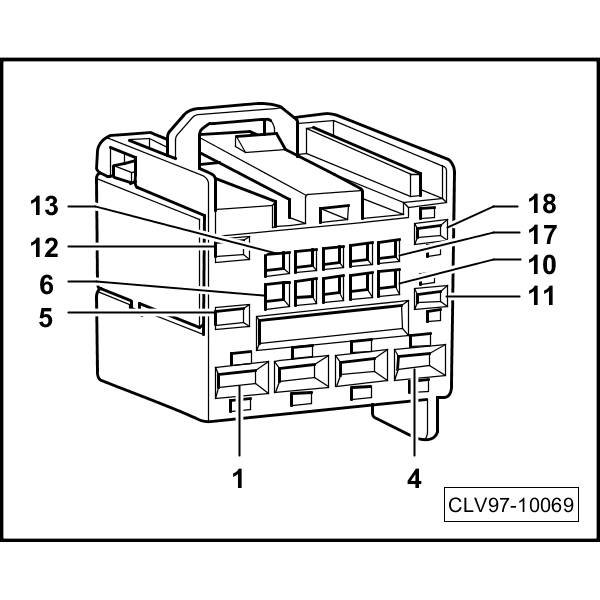

18 Pin Connector
18 Pin Connector
Body Control Module
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2012 Volkswagen.
Access/Start Authorization System - Connector Views
Comfort system central control module -J393-
18 Pin Connector
18 Pin Connector
