Additional information
- V.A.G 1551 Scan Tool operating instructions

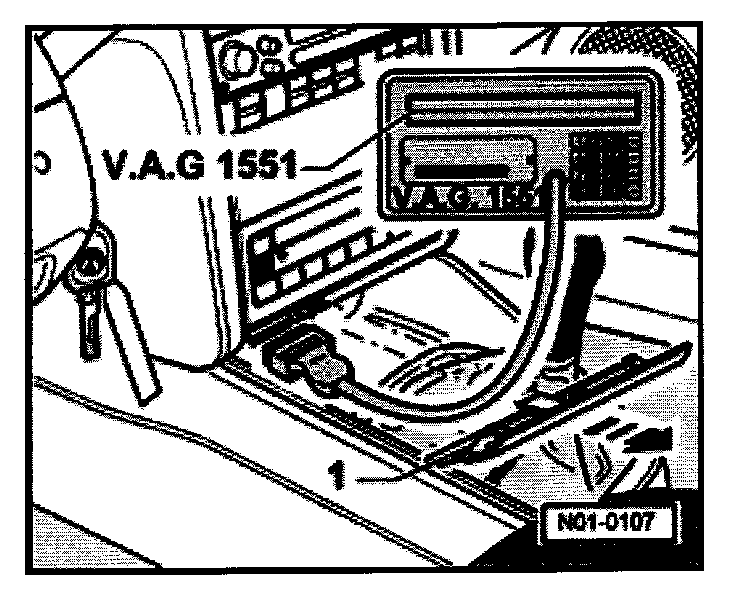

Connecting Scan Tool
- Remove Data Link Connector (DLC) cover -1-.
- With ignition switched off, connect V.A.G 1551 with diagnosis cable V.A.G 1551/3A.
Indicated on display
VAG - On Board Diagnostic HELP
1 - Rapid date transfer 1)
2 - Slink code output 1)
1) appears alternately
NOTE:
- Additional operating instructions can be called up by pressing the HELP key of V.A.G 1551.
- The -> key is used for advancing within the program sequence.
