Tightening torques

Transmission to engine

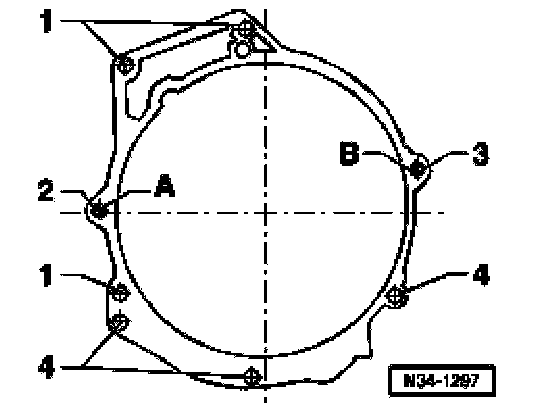

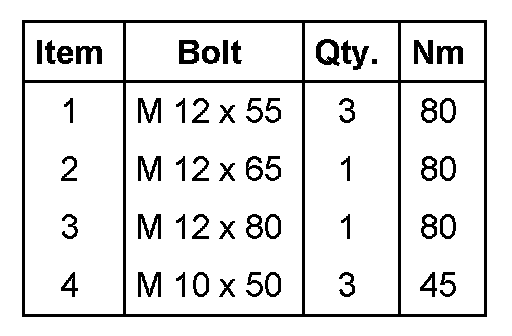

Vehicles with 4 Cyl. engines








Always replace bolts
Items A + B = Dowel sleeves

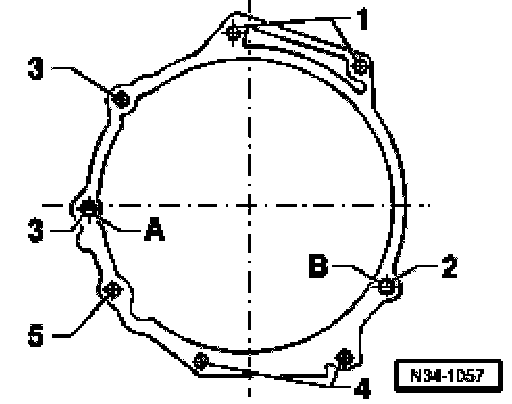

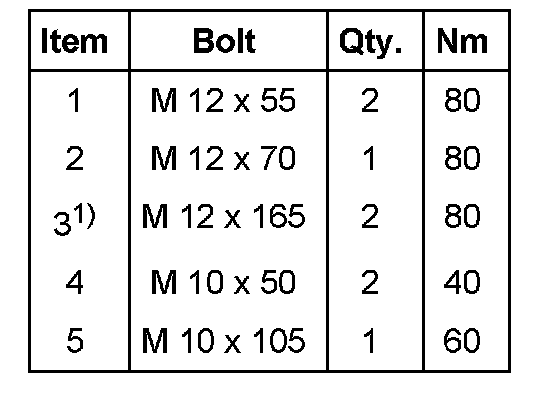

Vehicles with 6 Cyl. engines








Always replace bolts
Items A + B - Dowel sleeves


Continued for all vehicles

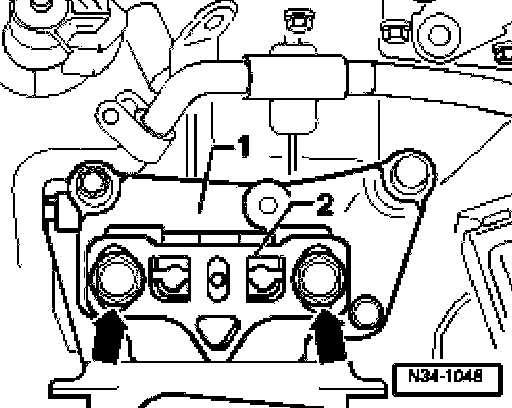

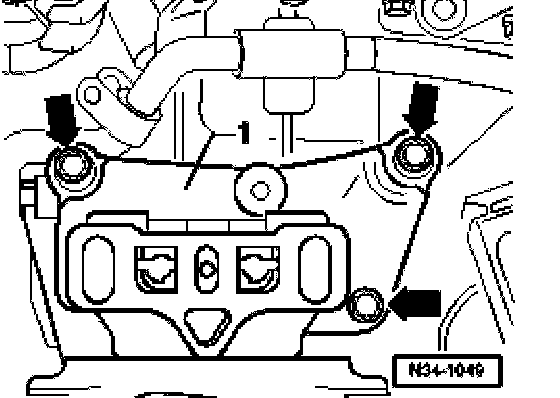

Transmission mount -1- to transmission
Bolts -arrows 50 Nm + 90°
^ Replace bolts





Transmission to body
Bolts -arrows 100 Nm

Note: Install engine/transmission mountings stress-free.

Hydraulic pipe to transmission 25 Nm

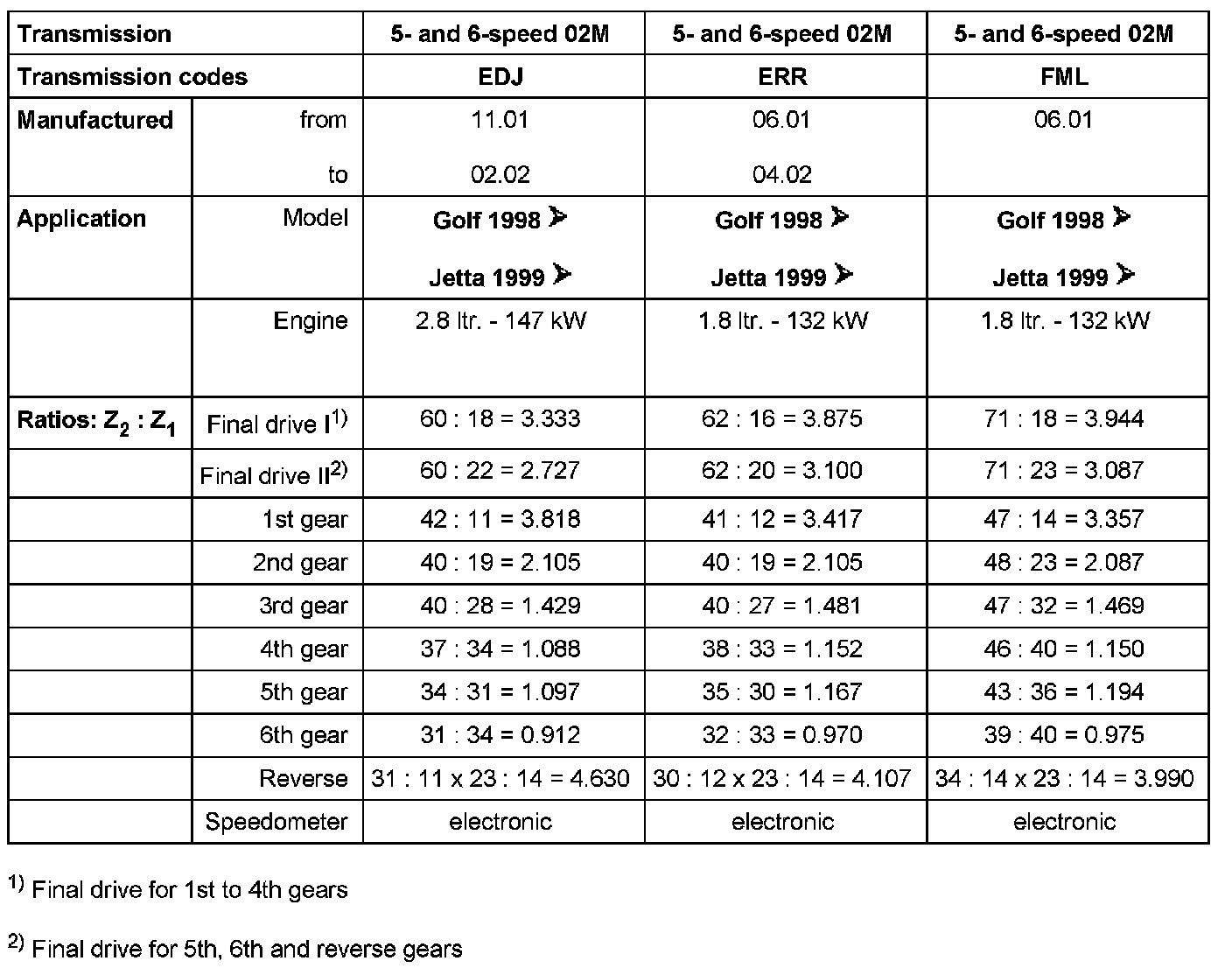

Code letters, assembly allocation, ratios, capacities

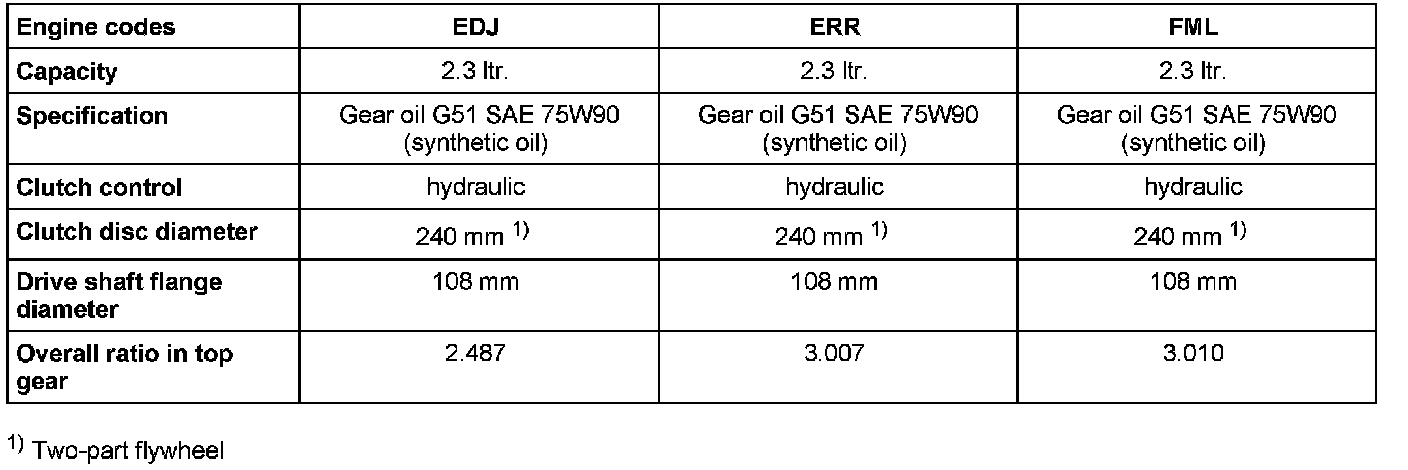

Transaxles, codes EDJ, ERR and FML

Part 1 Of 2:




Part 2 Of 2:

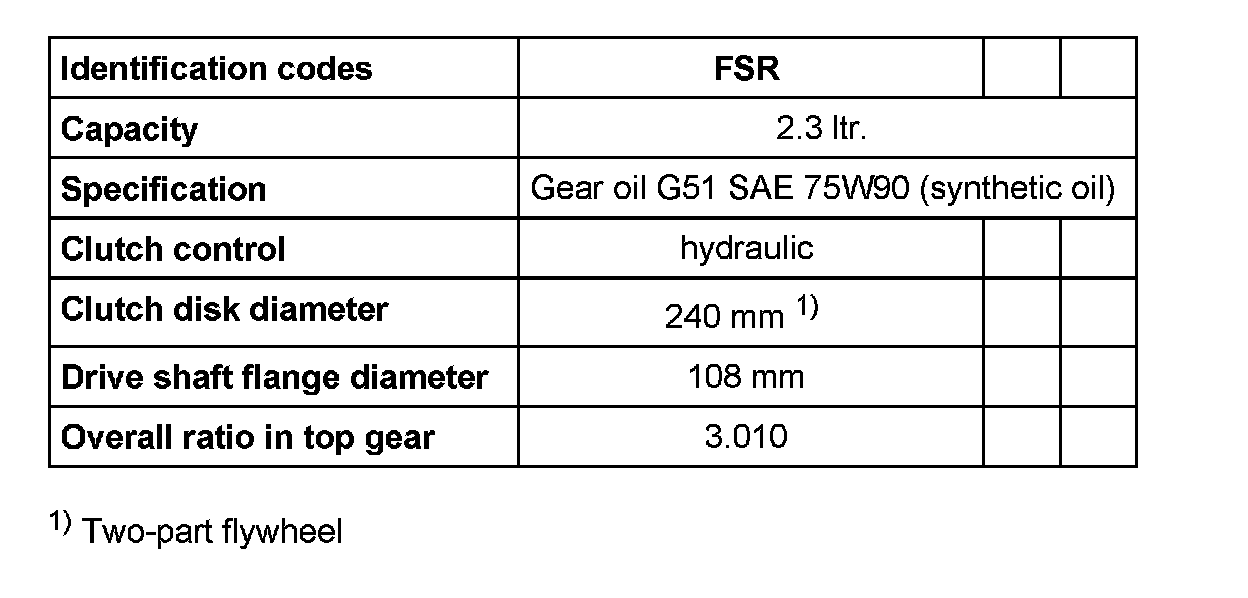

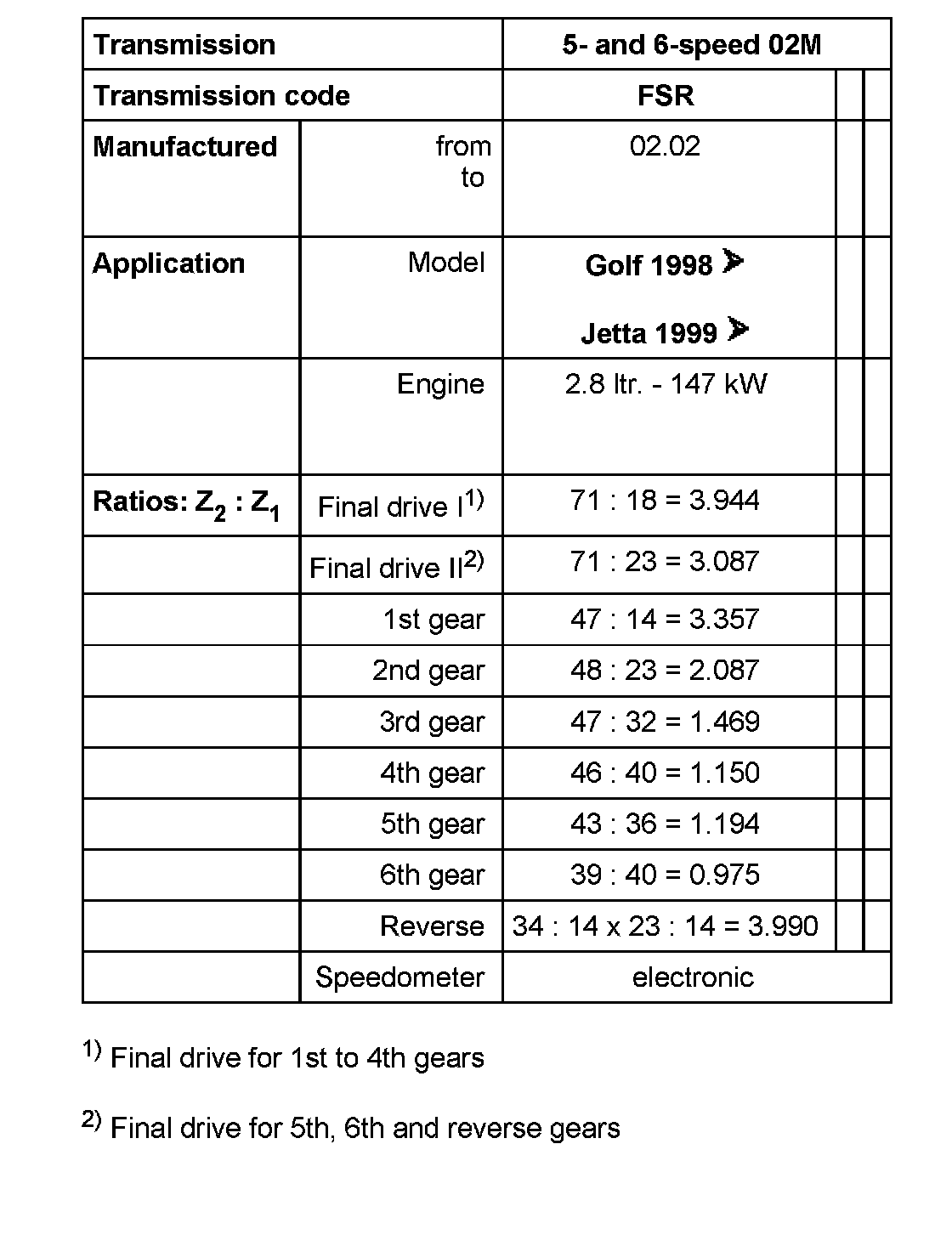

Transaxle, code FSR

Part 1 Of 2:




Part 2 Of 2:






Shift housing to body 25 Nm
Cross support to body 25 Nm
Selector cable support bracket to transmission 25 Nm
