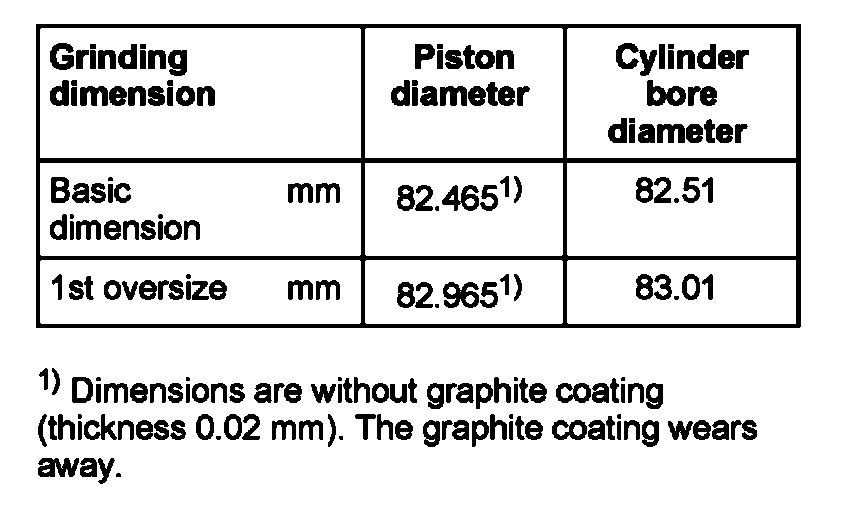

Piston and Cylinder Dimensions
1) Dimensions are without graphite coating (thickness 0.02 mm). The graphite coating wears away.
Piston, Engine
Need a step-by-step guide?
Get an AI-powered repair guide with parts lists, cost estimates, and clear instructions for your 2004 Volkswagen.
Piston and Cylinder Dimensions
1) Dimensions are without graphite coating (thickness 0.02 mm). The graphite coating wears away.
