Flywheel torque
^ Torque 60 Nm. (44 ft. lbs.) + 1/4 turn (90°) [1]
[1] Always replace bolts.

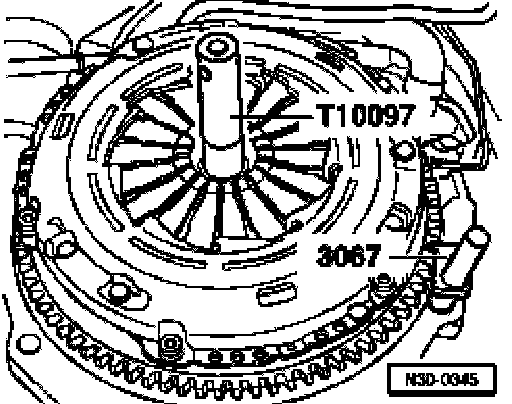

Pressure plate
^ On two-part flywheel:
^ 22 Nm
^ Always replace bolts
^ On single piece flywheel:
^ 20 Nm
^ Loosen and tighten gradually and diagonally
Clutch pedal
^ Hex nut, self- locking 25 Nm
