VAS 5056B Test Box
It is possible to check the individual components of the airbag system with test box VAS 5056B and to check which components are actually malfunctioning.
NOTE: Observe safety measures when working on airbag.

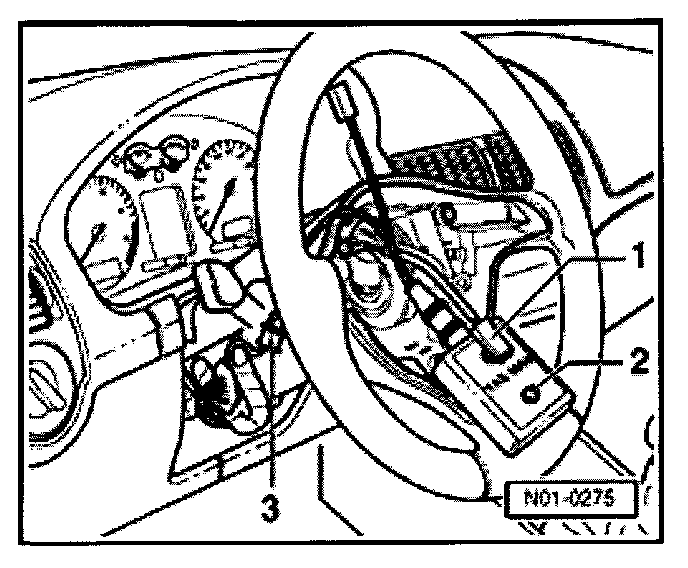

Connecting test box to driver's airbag components
Driver's airbag and steering column switch lower trim removed.
- Connect igniter connector to inert igniter -1- and separate wiring harness to coil connector with slip ring. Connect connector -3- from VAS 5056/3 with airbag wiring harness.
1 - Igniter connector on inert igniter
2 - Button
3 - Coil connector with slip ring connector

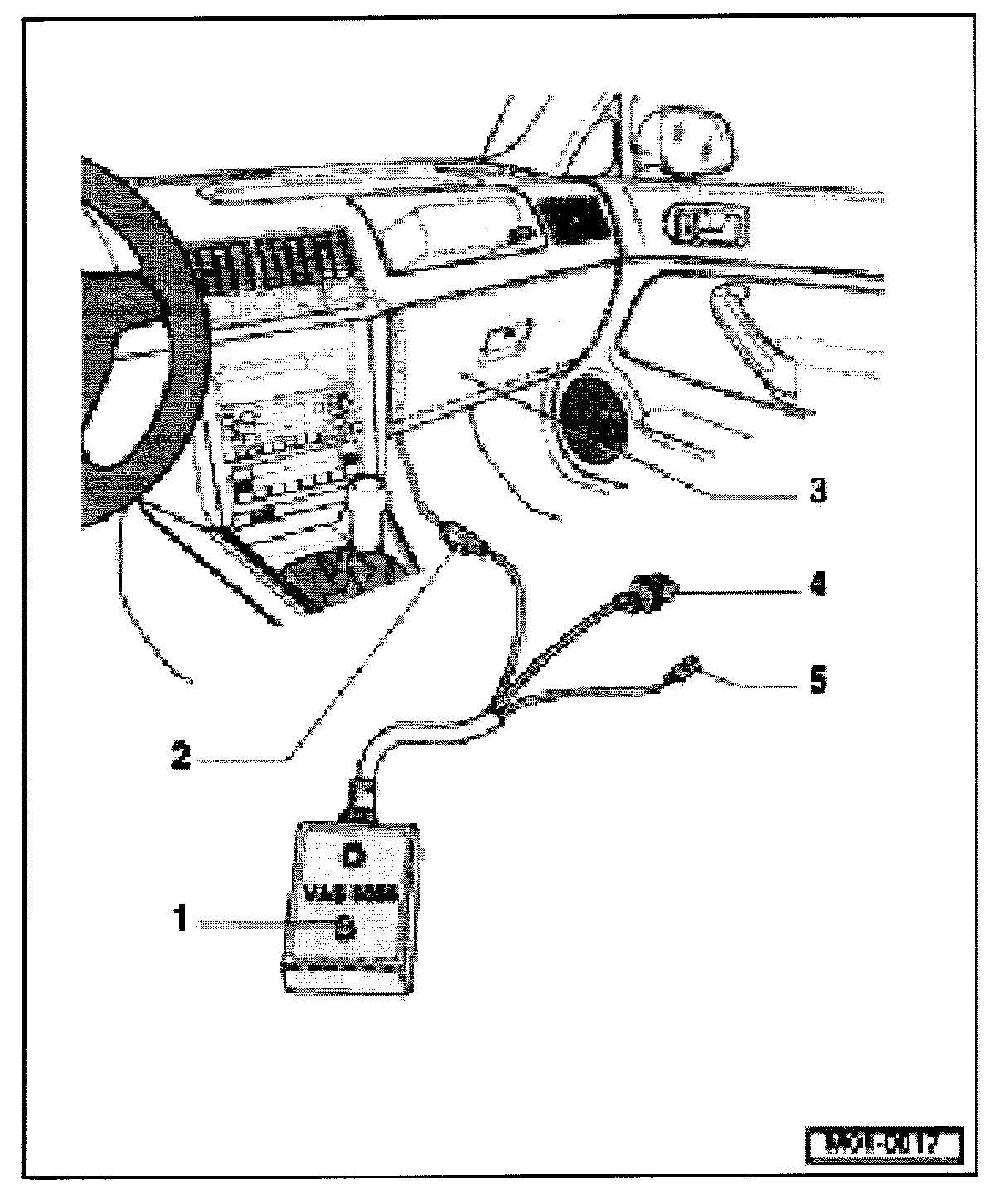

Connecting test box to passenger airbag components
- Remove glove compartment -10-.
- Disconnect wiring harness to airbag unit and connect yellow 2-pin connector of VAS 5056/3 with the wiring harness/passenger-side airbag.
1 - Switch
2 - Connector for - wiring harness/passenger-side airbag
3 - Glove compartment
4 - Connector (without meaning)
5 - Connector (without meaning)
